XZJ5160TXSD5 Sprinkler-Sweeping Truck

1、9-26No.6.3C high-pressure centrifugal fan is used, with high efficiency and high blast capacity (maximum blast capacity: 12,000m³/h).

2.、The mode of vertical brushing (with the unified type as the cleaning sweeper truck in the Plant) is adopted for the sweeping plate. Compared with the sweeping plate branded Zoomlion and FLM, this plate has more functions. It is capable of both road sweeping and curb cleaning. At the same time, it also continues the structure of the sweeping plate in the Plant, and makes great improvement to the universality.

3、This truck is provided with diversified functions including pavement cleaning, pavement sweeping, curb cleaning, curb vertical face brushing, spraying and aspirating. Multiple operating modes can be realized, such as “full washing & sweeping”, ”left washing & sweeping”, “right washing & sweeping”, “full sweeping”, “left sweeping”, “right sweeping” and “pure absorption”. When it is necessary for spraying and aspirating, the spraying device can be started for spraying and aspirating.

4、An auxiliary engine is used to exclusively drive the fan and the hydraulic system, making sure continuous work in the driving process and the continuity in the sweeping process.

5、The structure of “two sweepers in the middle + long suction nozzle in the middle + V-shaped spray lance” is adopted, which improves the sweeping efficiency and makes it convenient for adjustment and maintenance of the cleaning device and the suction nozzle. It is of good trafficability while being transferred to another site.

6、The sweeping plate is provided with the function of automatic avoidance for protection and automatic resetting in case of an obstacle. While encountering an obstacle, it will retract and reset automatically after crossing the obstacle.

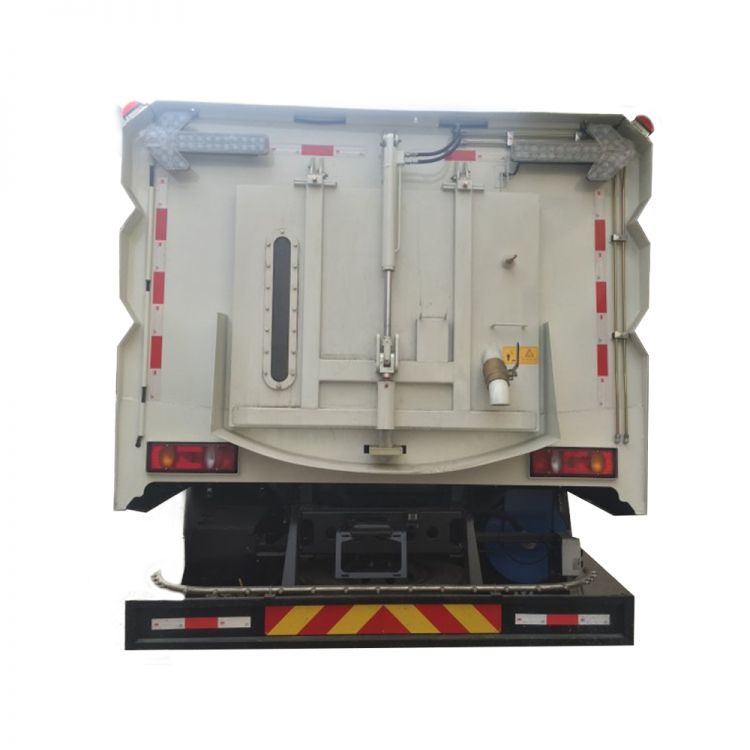

7、A single-layer stainless steel structure is adopted for the dustbin. It is turned over for unloading. Besides, it is also equipped with a high liquid level alarm device and a self-cleaning device.

8、The auxiliary engine is transformed. Besides, another PTO port is increased to directly drive the hydraulic pump. The belt drive is cancelled. After these measures, the transmission efficiency is improved, the user costs are reduced, and the number of fault points is lowered.

9、Effect of multiple operating modes

Besides a conventional operating mode, this product is also provided with such functions as low-pressure washing, operation with portable spray gun, spraying & aspirating and curb cleaning. Multi-purposes are realized.

Description				Unit	Specification
Automotive chassis	Model,categoryand manufacturer of chassis				DFL1160BX1V(Standard ChinaⅤ）
	Model and manufacturer of engine				4HK1-TC51 Isuzu 4KH1-TCG51
	Rated power of engine				141kW/2600r/min
	Tire		Front wheel		7.00-16 14PR
	Tire		Rear wheel		7.00R16 14PR
	Fuel type				Diesel meeting the discharge requirements in the fifth stage, select an appropriate diesel grade according to the temperature
Auxiliary engine	Standard configuration		Model and manufacturer		EQ6BT5.9 or QSB5.9-C160-30(Standard China Ⅲ）
	Standard configuration		Power		118kw/2500r/min;120kw/2200r/min
	Clutch				Single plate, dry type and diaphragm spring
Fan	Type				Special high-pressure centrifugal fan
Fan	Mode of transmission				Narrow V belt drive
Hydraulic system	Type				Open type, EHC and centralized control
	Main elements				Gear pump, gerotor motor, hydraulic cylinder, solenoid valve, integrated package, etc.
	Overflow pressure			MPa	14
	Hydraulic oil capacity			L	60
Electrical system	Control mode				PLC control + manual control, voice alarm, electromechanical liquid interlocking, etc.
	Chassis system voltage			V	24
	Working device system voltage			V	12
	Model of storage battery				Chassis: 12V-70A.H (2 pieces connected in parallel)
High-pressure cleaning system	High-pressure water pump		Type		Plunger type
			Model		Italian Pratissoli KEB36R
			Rated pressure	MPa	10
			System working pressure	MPa	9
			Rated flow	L/min	80
			Rated speed	r/min	1150
	Water valve and control		Type of water valve	MPa	High-pressure stainless steel ball valve, 10
	Water valve and control		Control mode		Oil cylinder drive, electrical control
	Type of nozzle of water spray rod				High-pressure washing type
Dust falling system of sweeping plate					Electric water pump and watering nozzle; water filter and water tank shared with the high-pressure cleaning system
Sweeping system		Type			Two vertical sweeping plates are symmetrically arranged between the front shaft and the rear shaft of the chassis and on both sides of the frame, which are driven by a hydraulic motor. The revolving speed of sweeping plate is adjustable. The left and right vertical sweepers can be independently lifted.
		Diameter of sweeper			Φ850mm
		Speed of sweeping plate			High gear (normal operation gear): 110r/min; intermediate gear: 80r/min; low gear: 60r/min
		Adjustment to dip angle of sweeping plate			Front inclination: 4°-6°; outward inclination: 2°-4°
Suction nozzle		Type			Double suction ports, built-in long spray lance with a high-pressure nozzle, the body of suction nozzle moves with the pavement. Lifting of the suction nozzle is controlled by the oil cylinder. A spring is used for floating suspension.
		Diameter of sucker		mm	Φ180
		Ground clearance of suction nozzle during working		mm	5～10
Left & right spray lance		Pendulum angle of spray lance		°	65
		Nozzle ground clearance		mm	340
		Total number of nozzles		pcs	8
