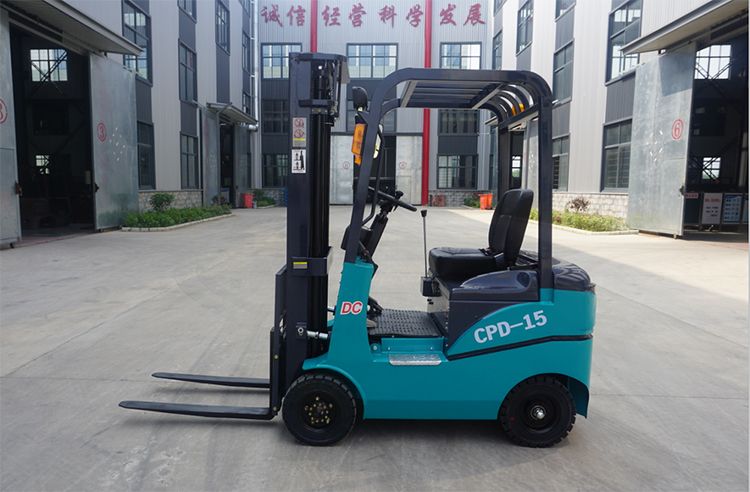

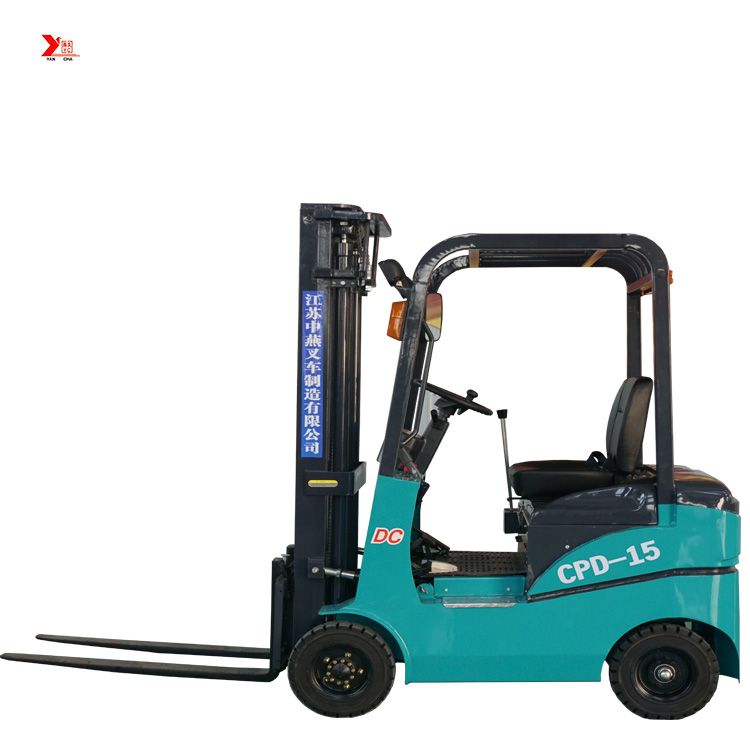

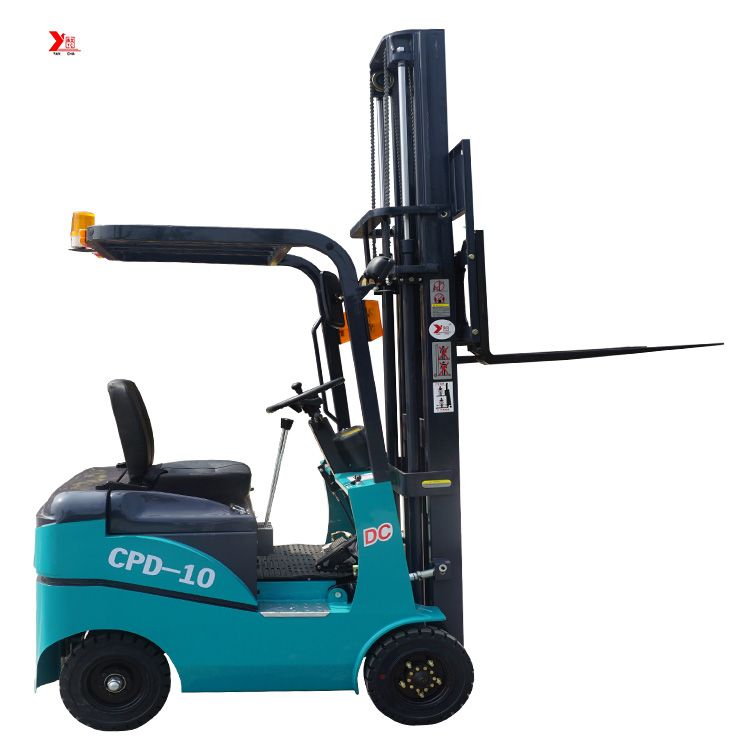

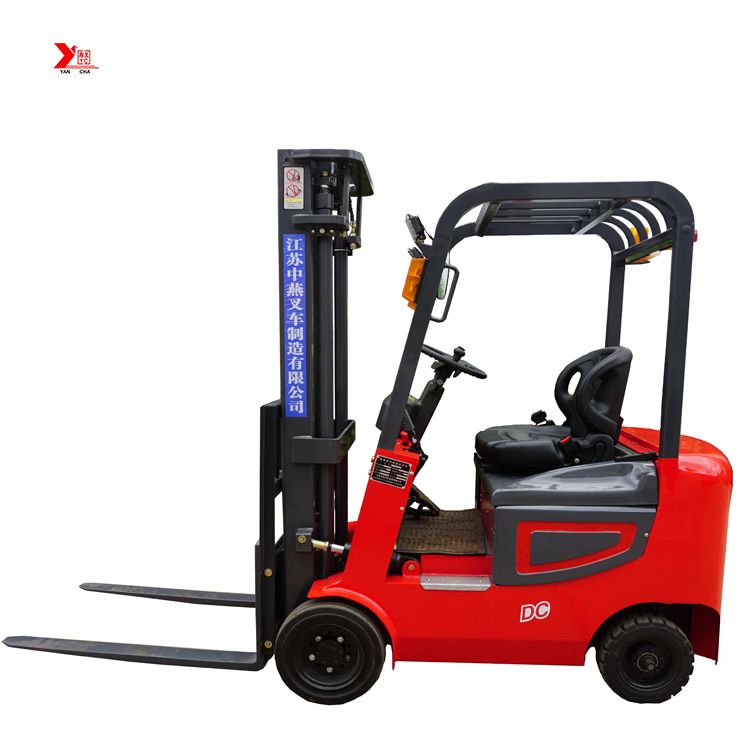

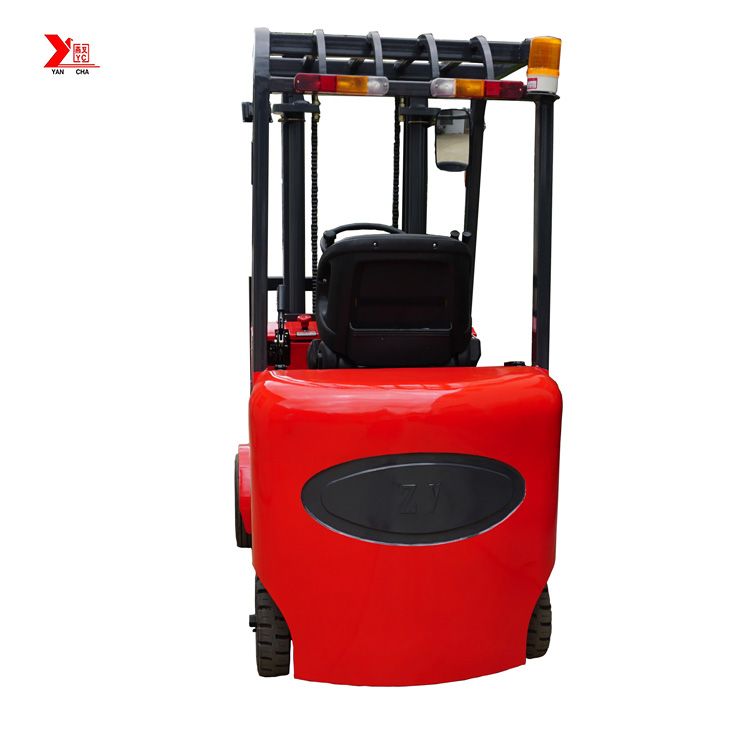

1 ton 1.5 ton YANCHA small electric forklift with four wheel CE approved.

1 ton 1.5 ton YANCHA small electric forklift with four wheel CE approved is a lift vehicle with a prong at the front and a counterbalanced heavy substance at the back.

1 ton 1.5 ton YANCHA small electric forklift with four wheel CE approved is used for loading, discharging, moving and stacking cargos at harbor, station and enterprise.

Forklift with the weight less than 3t can be operated in cabin, carriage and container. It can carry many kinds of cargos by changing attachments, for example, if equipped with bucket, it can move bulk materials etc. Self-propelled forklift appeared in 1917, and developed in World War II. The manufacturing for forklift starts at the beginning of 50s in China.

Model Parameter	Unit	CPD1030	CPD1530	CPD2030	CPD3030
Model Parameter	Unit	CPD1030	CPD1530	CPD2030	CPD3030
Load Capacity	kg	1000	1500	2000	3000
Lift Height	mm	3000	3000	3000	3000
Load Center	mm	500	500	500	500
Fork Length	mm	1070	1070	1070	1070
Lowest height	mm	120	120	120	120
Manipulation Way		Steering Wheel
Tyres		Solid Wheel
Dimension of Driving Wheel		510mm	510mm	560mm	650mm
Speed at Full Load	km/h	15
Lifting Speed at full Load	mm/sec	200
Speed Control Way		Stepless Speed Regulation
Door Frame Tilt Angle	°	3~6
Gradient at full Load	°	15
Battery	V/Ah	48/240	48/270	48/270	48/420
Working Time(for reference)	h	3	3	3.5	6
Driving Motor	kw	4	4.2	5	8
Lifting Motor	kw	3	3	5.5	5.5
The Min. Turning Inner Radius	mm	2000	2000	2100	2150
L * W * H Dimension	mm	338010502100	338010502100	345011002100	360011602120
weight	kg	2200	2400	2800	3800
lifting Height at each weight	mm	1600/2000/2500/3000/3500
Height of Door Frame	mm	2080/1600/1850/2080/2350
