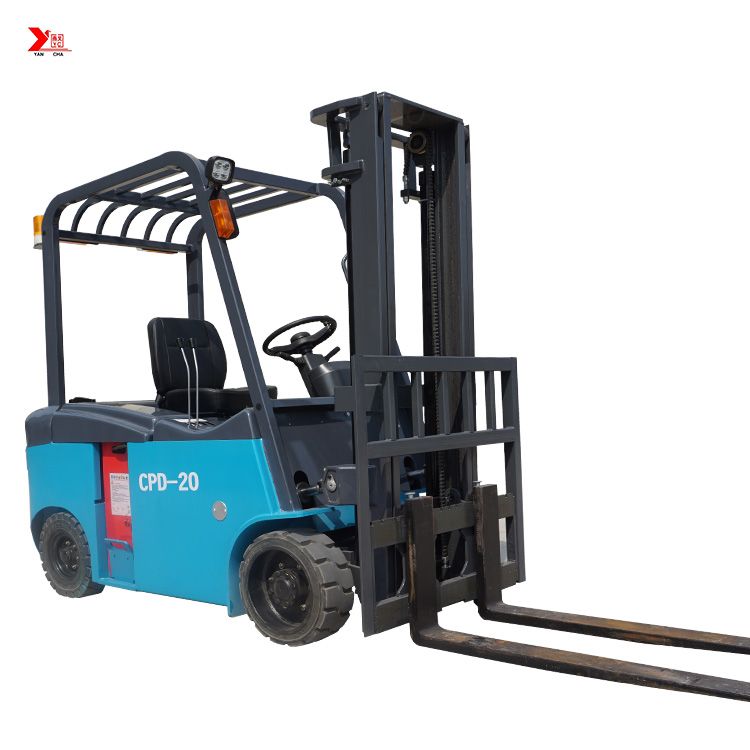

China YANCHA electric forklift 2 ton with four large wheel counterbalance.

China YANCHA electric forklift 2 ton with four large wheel can work in cabins, train cars and containers., after the forks are replaced with various attachments, the forklifts can carry a variety of goods, such as changing the bucket to carry bulk materials, etc.

Advantages:

1.The MOSFET walking lifting controller is adopted to make the forklift walking and lifting control accurate and stable. China YANCHA electric forklift 2 ton with four large wheel has the functions of regenerative braking, reverse braking, slope prevention and other functions, and excellent handling performance.

2.The wide field of view design of the mast, high operating sensitivity and lifting balance, flexible steering and small turning radius, ensure the controllable, flexible, light and efficient operation of the whole machine.

3.The lifting cylinder is equipped with a buffer device, and the pipeline system is equipped with a safety device, even if the pipeline is broken, it will not cause the mast or the cargo to lose control.

project		Unit	Raise 3 meters
Rated lifting capacity		kg	2000
Length	Fork length	mm	122012040
	Vehicle length without forks	mm	2220
	With fork length	mm	3500
	Vehicle width	mm	1110
Height	Height of overhead guard	mm	2120
Height	Elevated height	mm	3000
Wheelbase		mm	1450
Front overhang		mm	400
Front track		mm	1100
Maximum lifting height with full load		mm	1600
Mast (fork) inclination (front/rear)		°	3.0 / 6.0
The quality of the whole machine in the standard no-load state		kg	2800
Maximum lifting speed with full load		mm/s	200
Maximum descent speed at full load		mm/s	150
Minimum turning radius		mm	1850
Maximum operating speed with full load		km/h	15
Load center distance		mm	500
Rated battery power		V/ah	60-270
Tyre type			Solid tire
Front wheel size			560mm*175mm
Rear wheel size			440mm*120mm
Manipulation form			steering wheel
