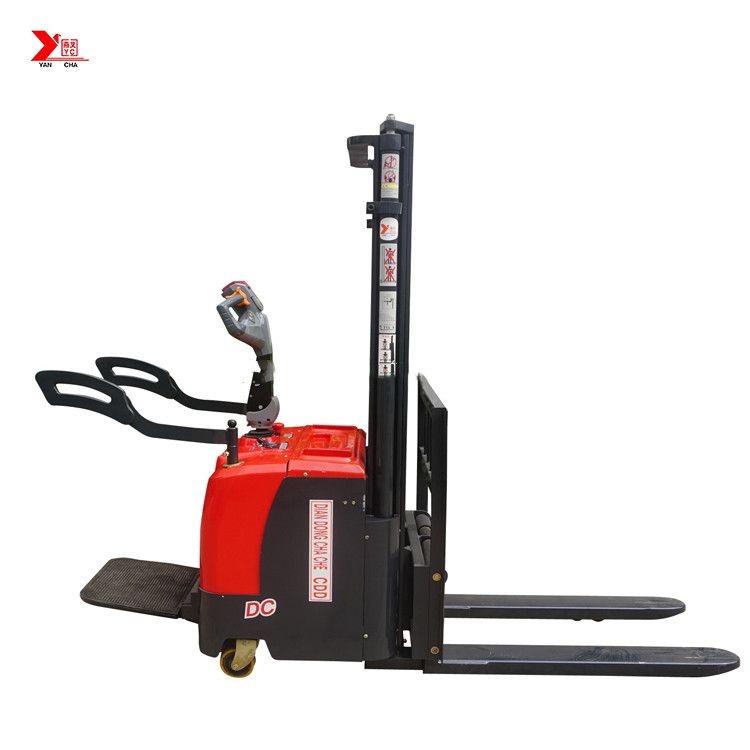

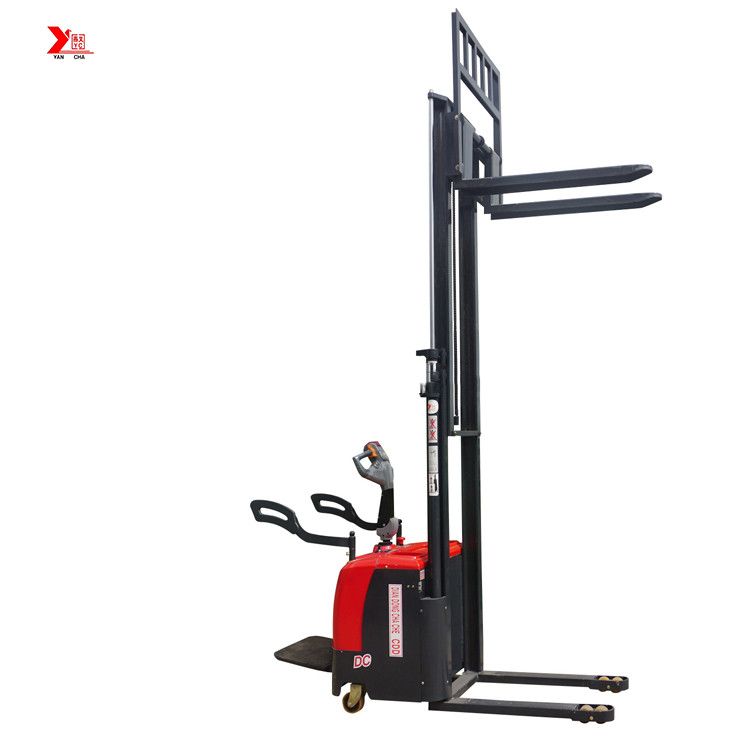

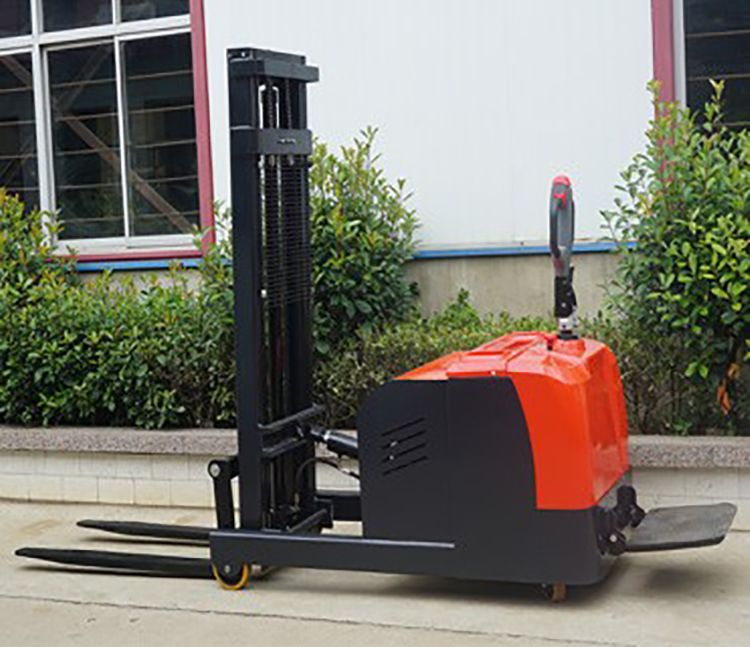

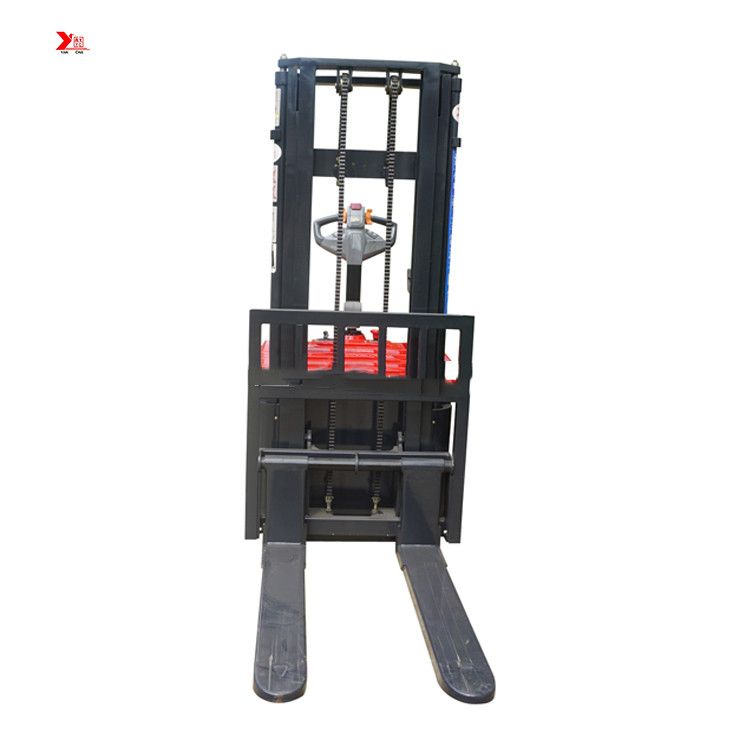

YANCHA stand electric forklift 1 ton 2 ton with CE.
YANCHA stand electric forklift 1 ton 2 ton with CE is a vertical tri-point supported truck powered by battery. Because of its small volume, light weight and easy operation, YANCHA stand electric forklift 1 ton 2 ton with CE is an ideal loading, discharging and stacking tool in narrow or complicated areas, such as warehouse, workshop or factory.
The truck adopts polyurethane cast steel wheel with pretty small diameter. It is suitable walk on flat and hard ground.The forklift can work by unit with pallet and container, which can effectively reduce the damage rate of products and stacking area so as to improve quality, save infrastructure investment and improve moving efficiency.
|
Model |
Unit |
CPD1030 |
CPD1530 |
CPD2030 |
|
Load Capacity |
kg |
1000 |
1500 |
2000 |
|
Lift Height |
mm |
3000 |
3000 |
3000 |
|
Load Center |
mm |
500 |
500 |
500 |
|
Fork Length |
mm |
1070 |
1070 |
1070 |
|
Lowest height |
mm |
100 |
100 |
100 |
|
Manipulation Way |
|
Handle |
||
|
Tyres |
|
Nylon/PU |
||
|
Dimension of Driving Wheel |
|
250*80 |
250*80 |
250*80 |
|
Speed at Full Load |
km/h |
4.5 |
4.5 |
4.5 |
|
Lifting Speed at full Load |
mm/sec |
90 |
90 |
90 |
|
Speed Control Way |
|
Stepless Speed Regulation |
||
|
Mast Tilt Angle |
° |
3~6 |
3~6 |
3~6 |
|
Gradient at full Load |
° |
10 |
8 |
8 |
|
Battery |
V/Ah |
24/180 |
24/180 |
24/210 |
|
Working Time(for reference) |
h |
6~8 |
6~8 |
6~8 |
|
Driving Motor |
kw |
1.2 |
1.5 |
1.5 |
|
Lifting Motor |
kw |
2.2 |
2.2 |
3 |
|
The Min. Turning Inner Radius |
mm |
1650 |
1750 |
1850 |
|
L X W X H Dimension |
mm |
2780*860*2080 |
2980*860*2080 |
3200*860*2080 |
|
weight |
kg |
1500 |
1600 |
1700 |
