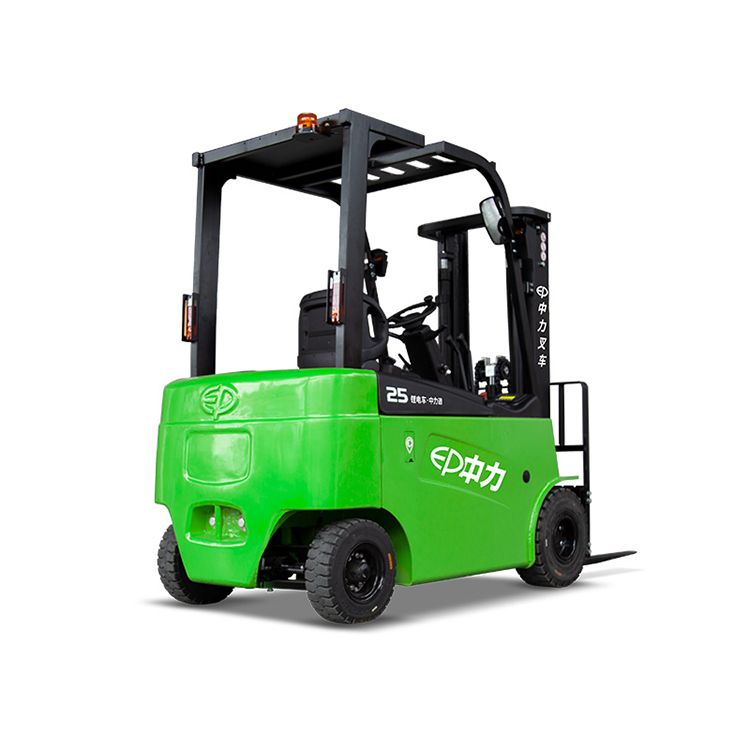

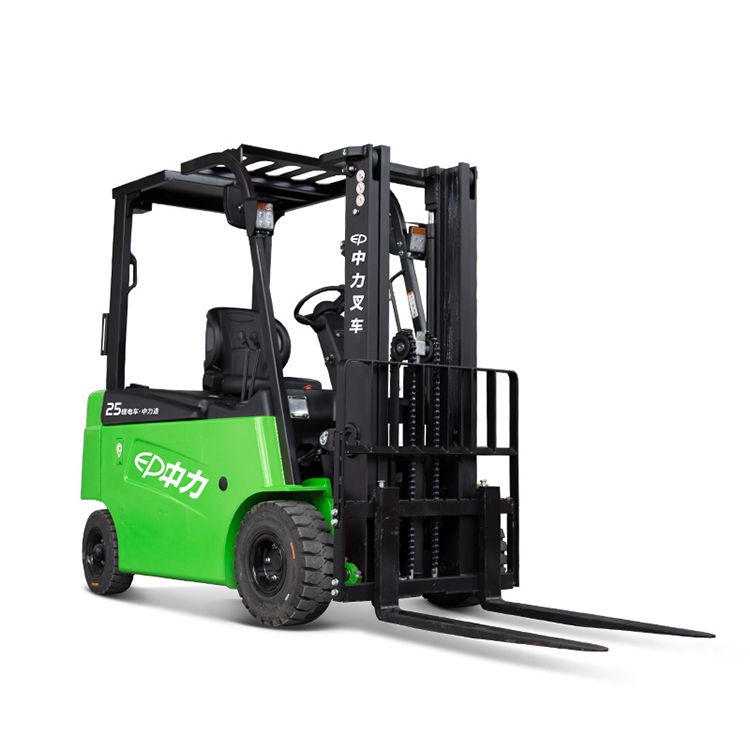

EP forklift lithium battery CPD25L2 2.5 ton capacity 4070mm mast height.
EP forklift lithium battery CPD25L2 2.5 ton capacity 4070mm mast height is sturdy and durable, and it is very suitable for outdoor work. Equipped with dual traction drive motors, EP forklift lithium battery CPD25L2 2.5 ton capacity 4070mm mast height performs exceptionally well in dock, truck side loading and unloading operations. It adopts rain-proof and dust-proof design, so it is widely used in outdoor work and bad weather environment.
2.Fast charging lithium battery. It can be charged up to 7% in 10 minutes.
3.Strengthening truck frame. CJ mast gives it great mechanical strength and wider operation view. CPD25L2 adopts one-piece panel on sides to optimize crashworthiness, safety, and overall appearance.
4.Water and dust protection. CPD25L2 offers a good level of overall protection from dirty and wet environment.
|
Distinguishing mark |
|
Unit |
Value |
|
Manufacturer |
|
|
EP |
|
Model designation |
|
|
CPD25L2S |
|
rated capacity |
Q |
kg |
2500 |
|
Load center distance |
c |
mm |
500 |
|
Wheelbase |
y |
mm |
1550 |
|
Self weight (include battery) |
|
kg |
4110 |
|
Dimensions |
|
|
|
|
Height, mast lowered |
h1 |
mm |
2020 |
|
Free lift (load backrest) |
h2 |
mm |
110 |
|
Lift height |
h3 |
mm |
3000 |
|
Height, mast extended |
h4 |
mm |
4070 |
|
Height of overhead guard (cabin) |
h6 |
mm |
2190 |
|
Fork dimensions |
|
mm |
40X120X1070 |
|
Overall length |
l1 |
mm |
3380 |
|
Overall width |
b1/ b2 |
mm |
1230 |
|
Turning radius |
Wa |
mm |
1890 |
|
performance data |
|
|
|
|
Travel speed, laden/ unladen |
|
km/h |
14/16 |
|
Lifting speed, laden/ unladen |
|
m/s |
0.25/0.35 |
|
Lowering speed, laden/unladen |
|
m/s |
0.44/ 0.435 |
|
Electric-engine |
|
|
|
|
Drive motor rating S2 60 min |
|
kw |
2X 6 |
|
Lift motor rating at S3 15% |
|
kw |
20.7 |
|
Battery voltage/nominal capacity K5 |
|
V/Ah |
80/270 |
|
Battery weight |
|
kg |
310 |
