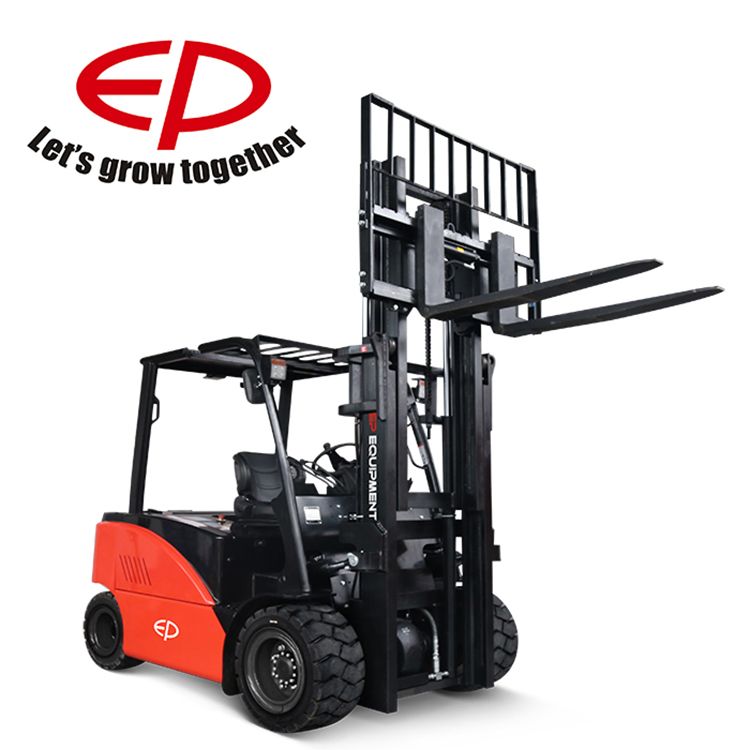

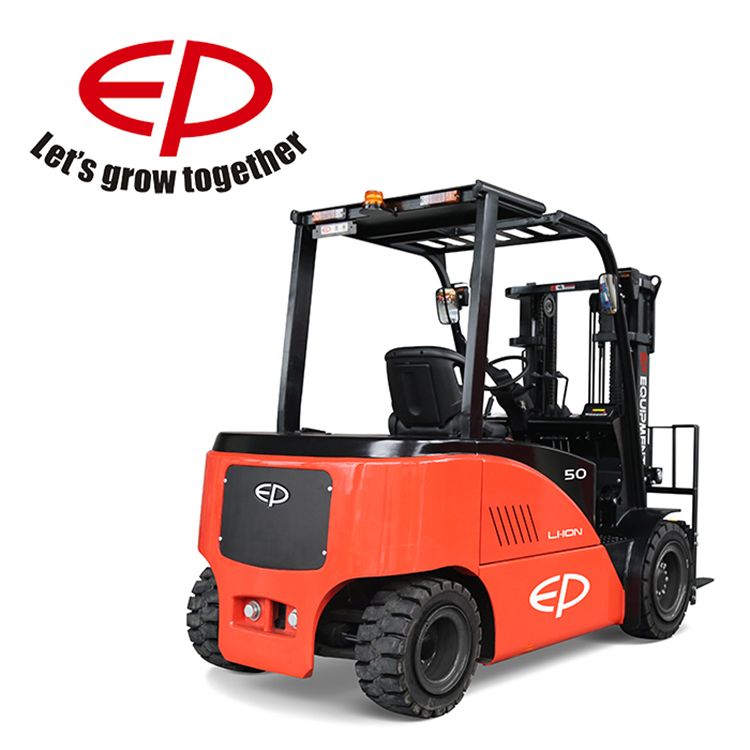

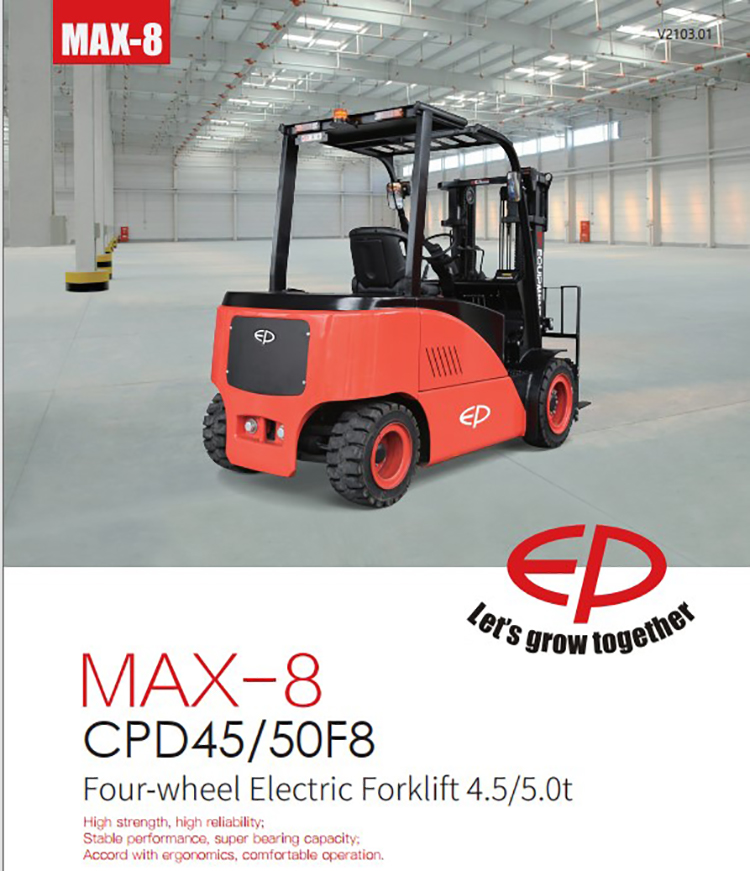

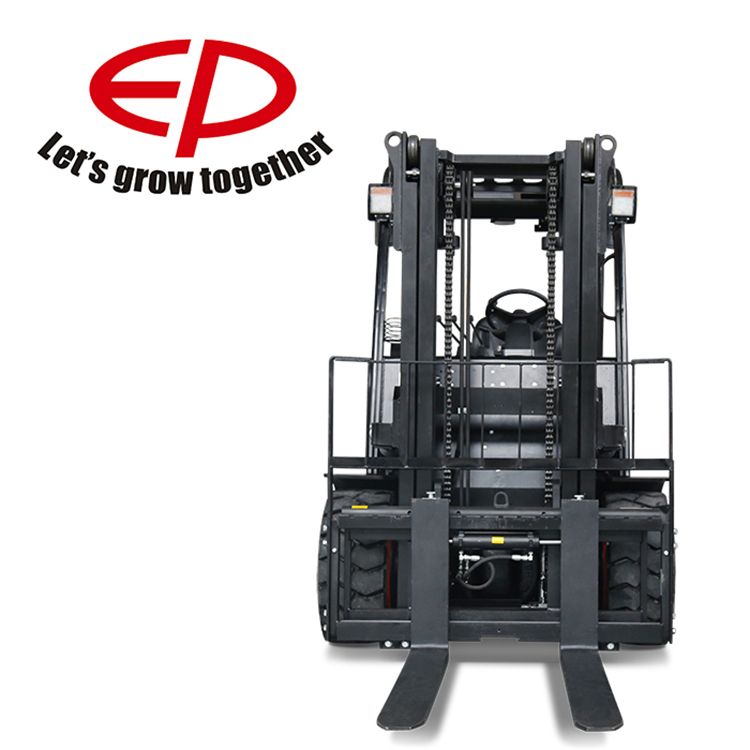

EP counterbalance forklift with four wheel 5 ton capacity.
EP counterbalance forklift with four wheel 5 ton capacity is a lithium-ion forklift with a more powerful load capacity, with a load capacity of 4.5/5.0 tons. The advantages of lithium battery technology make CPD45/50F8 a more ideal choice than internal combustion forklifts. It can support fast charging function, and can provide a spacious cabin space in accordance with the principles of ergonomics.
EP counterbalance forklift with four wheel 5 ton capacity is suitable for heavy-duty (under 5t) operations, especially in the metal industry and construction materials.
Advantages:
2.Large load with lithium battery
|
Distinguishing mark |
|
Unit |
Value |
Value |
|
Manufacturer |
|
|
EP |
EP |
|
Model designation |
|
|
CPD50F8 |
CPD50F8(li-ion) |
|
rated capacity |
Q |
kg |
5000 |
5000 |
|
Load center distance |
c |
mm |
500 |
500 |
|
Wheelbase |
y |
mm |
2000 |
2000 |
|
Self weight (include battery) |
|
kg |
7500 |
7150 |
|
Dimensions |
|
|
|
|
|
Height, mast lowered |
h1 |
mm |
2250 |
2250 |
|
Free lift (load backrest) |
h2 |
mm |
150 |
150 |
|
Lift height |
h3 |
mm |
3000 |
3000 |
|
Height, mast extended |
h4 |
mm |
4120 |
4120 |
|
Height of overhead guard (cabin) |
h6 |
mm |
2353 |
2353 |
|
Fork dimensions |
|
mm |
55X150X1070 |
55X150X1070 |
|
Overall length |
l1 |
mm |
4127 |
4127 |
|
Overall width |
b1/ b2 |
mm |
1550 |
1550 |
|
Turning radius |
Wa |
mm |
2675.5 |
2735.5 |
|
Performance data |
|
|
|
|
|
Travel speed, laden/ unladen |
|
km/h |
14/14.5 |
14/14.5 |
|
Lifting speed, laden/ unladen |
|
m/s |
0.26/0.45 |
0.26/0.45 |
|
Lowering speed, laden/unladen |
|
m/s |
0.55/ 0.5 |
0.55/ 0.5 |
|
Electric-engine |
|
|
|
|
|
Drive motor rating S2 60 min |
|
kw |
16.6 |
16.6 |
|
Lift motor rating at S3 15% |
|
kw |
25.4 |
25.4 |
|
Battery voltage/nominal capacity K5 |
|
V/Ah |
80/700 |
80/540 |
|
Battery weight |
|
kg |
2015 |
405 |
