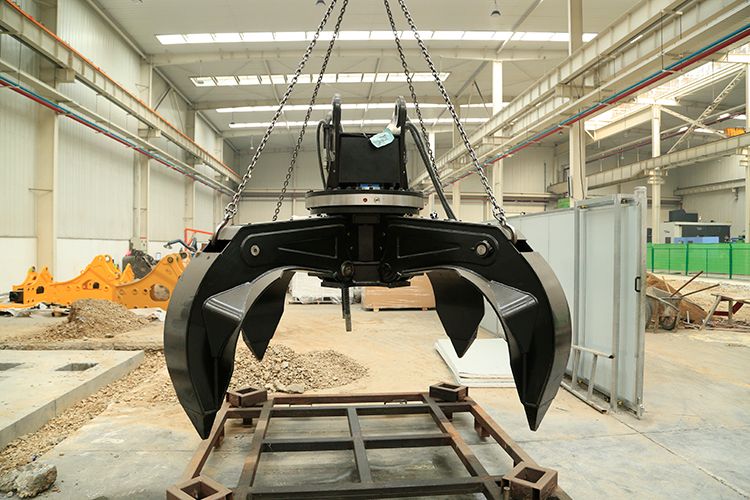

Lotus grab bucket for 17 ton excavator BUT LSW015 accessory.
Lotus grab bucket for 17 ton excavator BUT LSW015 accessory is a front-end attachment of excavators, generally used for grabbing steel materials. Due to its special design and materials, it has a large grabbing force and is widely used in the construction machinery industry.
Lotus grab bucket for 17 ton excavator BUT LSW015 accessory is an effective tool for handling large irregular materials (such as scrap steel, pig iron, ore and garbage). The hydraulic lotus grip (steel grabbing machine) is used in conjunction with the bucket device through fixed hinges, hydraulic cylinders, hydraulic grabs, and hydraulics.
The tubing forms a complete hydraulic integrated control loop. The opening and closing movement of the hydraulic grab is controlled by the control handle. It can be transported with mining, stone, wood, metal scrap, and large heavy objects to carry a fixed weight.
|
Item |
Unit |
Lotus Grab Model |
|
|
|
LSW015 |
|
Applicable carrier weight |
ton |
12-17 |
|
Weight |
kg |
1200 |
|
Open size |
mm |
1966 |
|
Closed size |
mm |
756 |
|
Open height |
mm |
1438 |
|
Closed height |
mm |
1660 |
|
Working pressure |
MPa |
34.3 |
|
Working flow |
L/min |
180-200 |
|
Rotary pressure |
MPa |
18 |
|
Rotary flow |
L/min |
20-30 |
|
Grab capacity |
m³ |
0.6 |
|
Rated lifting weight |
ton |
1.6 |
