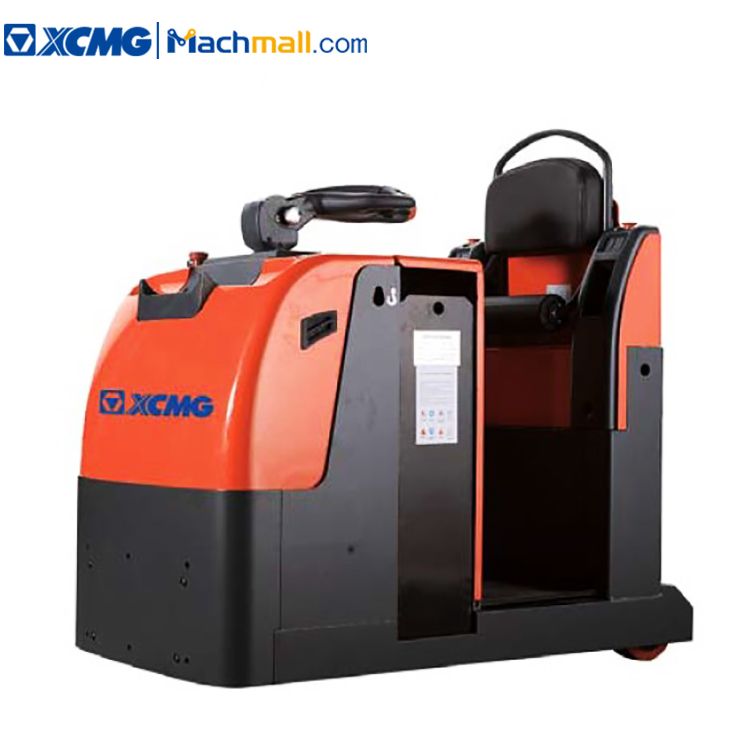

XCMG tow tractor stand-on electric forklift XCT-P30 3 ton capacity.
XCMG tow tractor stand-on electric forklift XCT-P30 3 ton capacity features compact structure design, exquisite and beautiful exterior, small turning radius, good mobility, and zero pollution.
Low gravity center of the machine guarantees good stability during steering and traveling.
The multifunctional LCD instruments feature beautiful exterior and all-round display information.
The capacious operating space and the low-levelboarding footplates reallyease the operator's get-on and get-off.
A safe and convenient emergency button is installed to transiently cut off the power source of the machine in event of any emergeney, inorder toremarkably improve the safety.
|
Characteristics |
Model |
Unit |
XCT -P30 |
|
|
Power system (Motor, diesel, gasoline, LPG, or |
|
Electric |
|
|
Driving mode (Manual, walkie, stand -on, |
|
Stand -on type |
|
|
Rated load capacity |
Q(t) |
3 |
|
|
Rated hitch capacity |
F(N) |
800 |
|
|
Wheelbase |
y(mm) |
1051.5 |
|
Weights |
Weight (including battery) |
kg |
920 |
|
|
No-load axle load, drive/load -carrying end |
kg |
560/360 |
|
Wheels |
Tires (Rubber tires, hyperelastic tires, air |
|
PU |
|
|
Wheel size, drive end |
Øxw(mm) |
Ø250×82 |
|
|
Wheel size, load-carrying end |
Øxw(mm) |
Ø180×76 |
|
|
Number of wheels (X = drive wheel), |
|
1X/2 |
|
|
Wheel tread (Front), drive end |
b10 (mm) |
/ |
|
|
Wheel tread (Rear), load-carrying end |
b11(mm) |
635 |
|
Dimensions |
Height with handle in neutral position |
h14(mm) |
1450/1420/1340/1226 |
|
|
Traction pin height (Ground clearance of hook |
h10 (mm) |
230/324/420 |
|
|
Overall length |
l1(mm) |
1453 |
|
|
Body width |
b1(mm) |
810 |
|
|
Ground clearance of wheelbase center |
m2(mm) |
50 |
|
|
Turning radius |
Wa(mm) |
1348 |
|
Performances |
Traveling speed, full -load/no -load |
Km/h |
7.0/7.5 |
|
|
Hitch capacity, full -load/no -load |
N |
800/ - |
|
|
Maximum hitch capacity, full -load/no -load |
N |
2800/ - |
|
|
Service brake |
|
Electromagnetic brake |
|
Motor |
Drive motor power |
kw |
2.6 |
|
|
Battery, BS standard, none |
|
None , 3PZS |
|
|
Battery voltage/capacity (5h discharge |
V/Ah |
24/465 |
|
|
Battery weight (+/ -5%) |
kg |
363 |
|
Others |
Drive control mode |
|
AC speed control |
|
|
Driver’s parotic noise level |
dB(A) |
70 |
