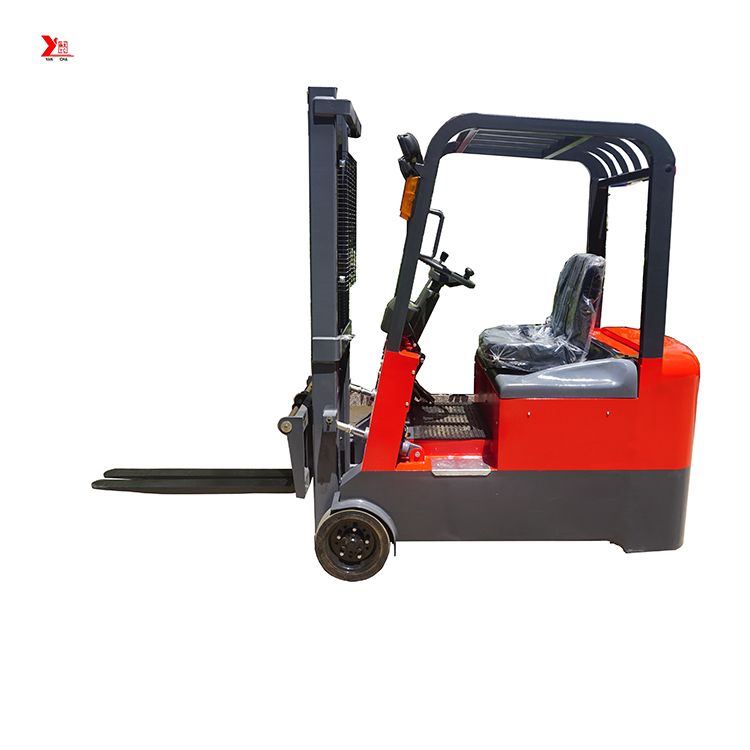

China YANCHA 3 wheel electric forklift 1.5 ton with CE certification.

China YANCHA 3 wheel electric forklift 1.5 ton with CE certification is used for loading, discharging, moving and stacking cargos at harbor, station and enterprise. Forklift with the weight less than 3t can be operated in cabin, carriage and container. It can carry many kinds of cargos by changing attachments, for example, if equipped with bucket, it can move bulk materials etc. Self-propelled forklift appeared in 1917, and developed in World War II. The manufacturing for forklift starts at the beginning of 50s in China.

Features:

1.Adopt special parallel-shaft gears between driving motor and axle, which greatly improve transmission efficiency and reduce noises.

2.Load, discharge, move and stack moderate strength material.

3.With single-double-side plate.

4.It is designed for narrow passway.

5.Safe mode for the switch on the seat.

Model Parameter	Unit	CPD1030	CPD1530	CPD2030
Model Parameter	Unit	CPD1030	CPD1530	CPD2030
Load Capacity	kg	1000	1500	2000
Lift Height	m	3000	3000	3000
Load Center	mm	500	500	500
Fork Length	mm	1070	1070	1070
Lowest height	mm	100	100	100
Manipulation Way		Steering Wheel
Tyres		Solid Tyre
Dimension of Driving Wheel		350*100	350*100	250*80
Speed at Full Load	km/h	8	8	5
Lifting Speed at full Load	mm/sec	80	80	80
Speed Control Way		Stepless Speed Regulation
Door Frame Tilt Angle	°	3~6	3~6	3~6
Gradient at full Load	°	10	8	8
Battery	V/Ah	48/120	48/120	24/240
Working Time(for reference)	h	4	3.5	3
Driving Motor	kw	2.2	2.2	1.5
Lifting Motor	kw	3	3	3
The Min. Turning Inner Radius	mm	1750	1800	1800
L * W *H Dimension	mm	310010502080	310010502080	31009302080
weight	kg	1600	1700	1800
lifting Height at each weight	mm	1600/2000/2500/3000/3500
Height of Door Frame	mm	2080/1600/1850/2080/2350
