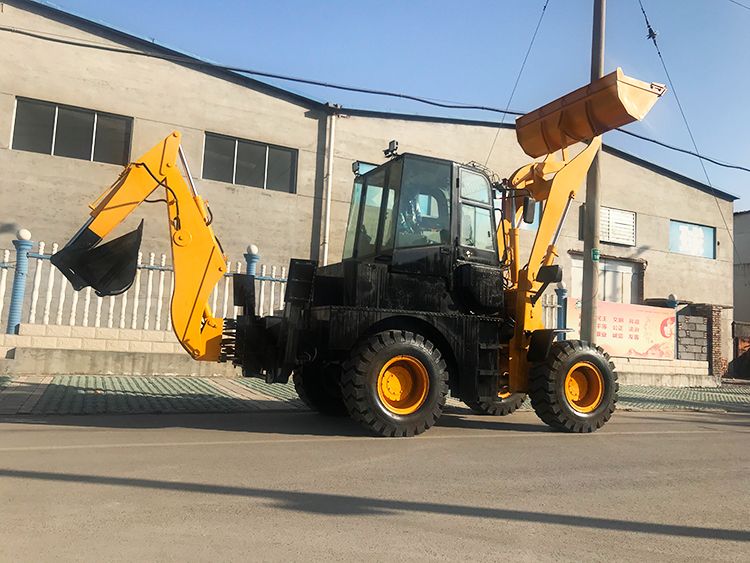

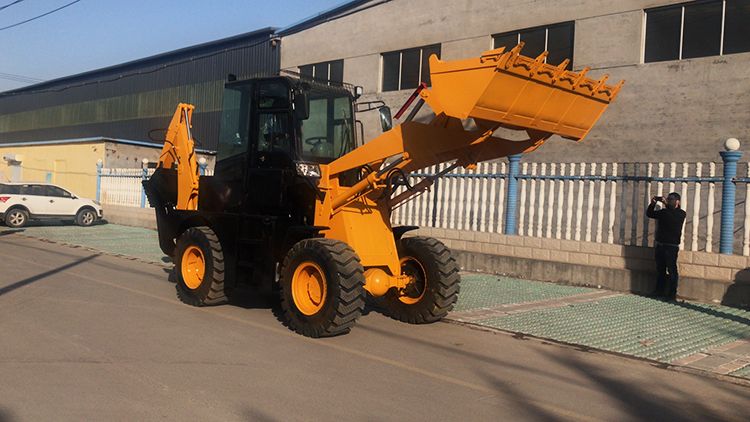

China Qi Yang new 2.5 ton capacity backhoe loader QZ20-25EUC.
China Qi Yang new 2.5 ton capacity backhoe loader QZ20-25EUC can be equipped with a variety of options to meet the needs of different users.
Selling points:
1.Enlarged cab, arc safety glass, spacious and bright.
2.Workbench: water temperature, oil temperature, current, all at a glance.
3.Use famous brand hydraulic parts, double pumps combined, strong power; excavation, loading, realize the mutual supply of hydraulic power.
4.Adjustable seat, easy to use, articulated front and rear frame, small turning radius, hydraulic steering, easy and convenient operation.
5.Hydraulic walking, the excavating arm realizes translation, which expands the excavation range.
6.Superior overall machine performance, with extraordinary operating efficiency.
|
Item |
Unit |
Parameter |
|
Engine |
|
Yunnei4100 |
|
Overall weight |
kg |
5500 |
|
Maximum flow |
ml/r |
63 |
|
Minimum ground clearance |
mm |
2500 |
|
Rated power |
kw |
65 |
|
Working pressure |
Mpa |
20 |
|
Wheelbase |
mm |
2450 |
|
Dimensions |
mm |
6000*2050*3050 |
|
Excavation section |
|
|
|
Maximum excavation depth |
mm |
2600-3000 |
|
Maximum excavation height |
mm |
4200 |
|
Maximum excavation radius |
mm |
4000 |
|
Maximum unloading height |
mm |
4200 |
|
Standard bucket capacity |
m3 |
0.2 |
|
Maximum traction |
kn |
29 |
|
Boom swing angle |
° |
180 |
|
Loader parts |
|
|
|
Maximum unloading height |
mm |
3200 |
|
Minimum turning radius |
mm |
5000 |
|
Maximum unloading distance |
mm |
950 |
|
Rated loading capacity |
kg |
2500 |
|
Maximum dugging force |
kn |
10.5 |
