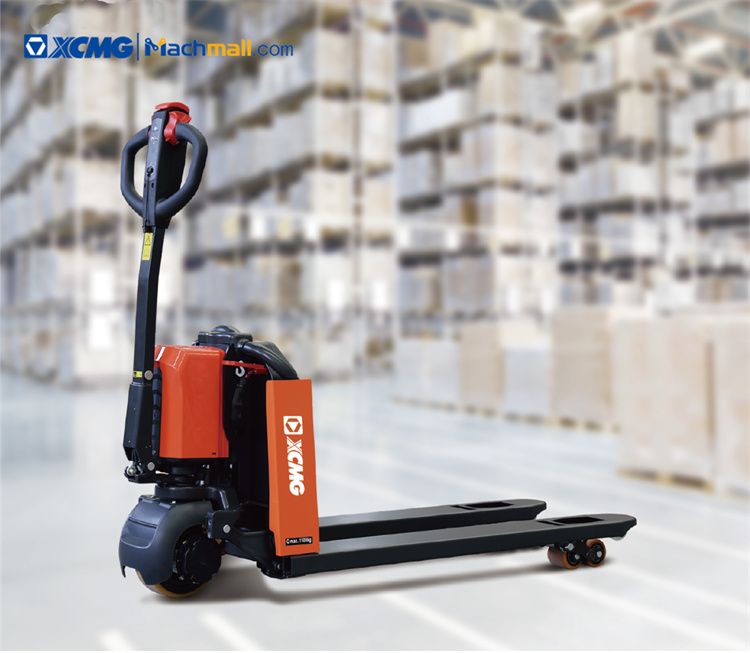

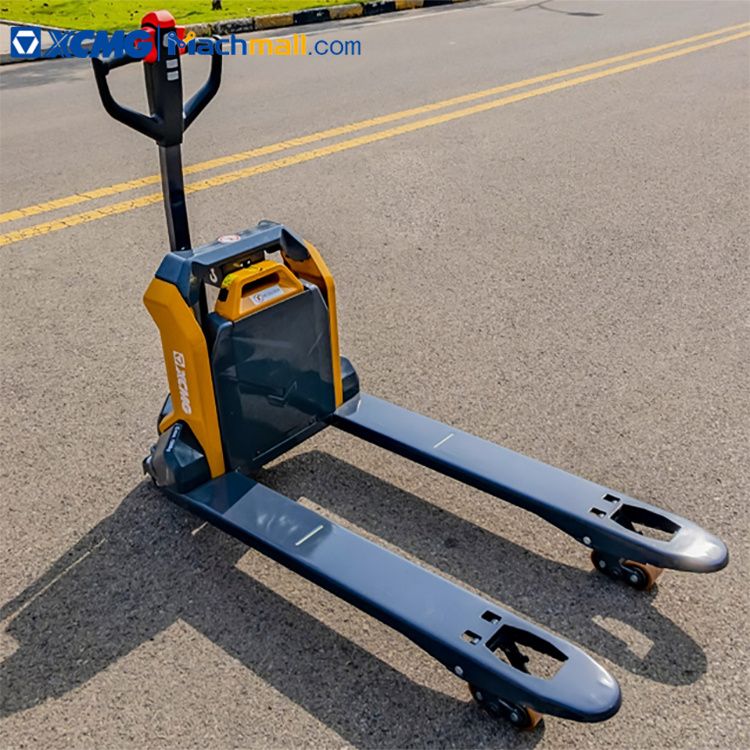

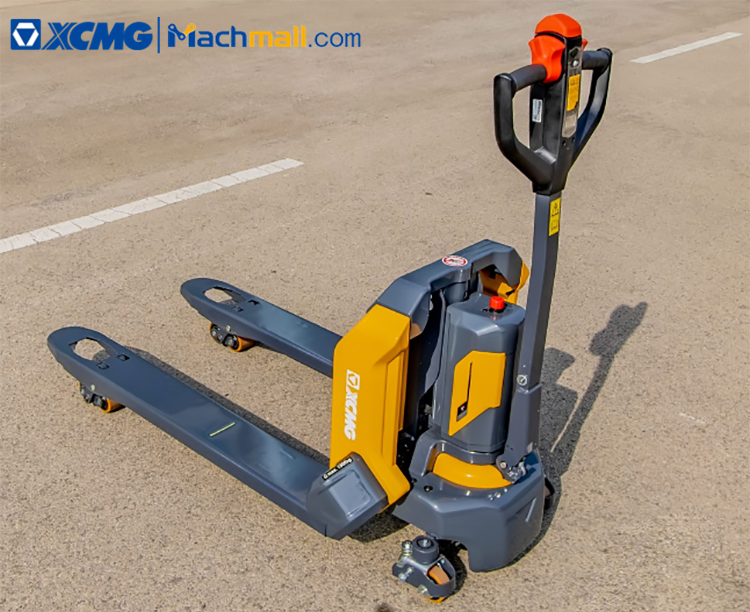

XCMG 1.5 ton Electric Pallet Truck with Load Wheel.
XCMG XCC-LW15 1.5 ton electric pallet truck with battery is made of environmental-friendly elastic material to realize comfortable operations and good insulation and damping and optimize the operator'S comfort.
1. The whole series is equipped with load wheel to realize higher stability and reliability of the machine body.
2. All switches and buttons are arranged at humanized and easily accessible positions to ease the operations. The built-in password lock and LCD screen realize the intelligent.
3. The machine can realize the traveling function with vertical handle to ensure the safe traveling and steering operations within a truck, elevator, or narrow space.
4. The frame adopts metal coverings to protect the internal parts. The forks are designed with large foot seals for quick insertion into and withdrawal from the pallets.
5. The independent charging coupler is applied to charge the battery without removing the battery from the machine. The maintenance-free intelligent lithium battery with standard built-in battery management system (BMS) and the high- power charger guarantee the outstand performances of the battery and realize intelligent control and quick charging.
|
Model |
Unit |
XCC - LW15 |
|
Drive mode |
|
Electric |
|
Operating mo de (Manual, walkie, stand -on, sit -on, |
|
Walkie type |
|
and order picking) |
|
|
|
Rated load capacity |
Q(t) |
1.5 |
|
Center distance of load |
c(mm) |
600 |
|
Front overhang |
x(mm) |
947 |
|
Wheelbase |
y(mm) |
1183 |
|
Dead weight with battery |
kg |
123 |
|
Full -load wheel load, drive/load -carrying end |
kg |
623/1000 |
|
No -load wheel load, drive/load -carrying end |
kg |
96/27 |
|
Tires (Solid rubber tires, hyperelastic tires, air |
|
Polyurethane wheels |
|
inflated tires, and polyurethane tires) |
|
|
|
Front wheel specification |
Øxw(mm) |
Ø210×70 |
|
Rear wheel specification |
Øxw(mm) |
Ø80×93 |
|
Stabilizing wheel size |
Øxw(mm) |
Ø80×30 |
|
Number of wheels, front/rear (X= drive wheel) |
|
1x/2(1x/4)x+2/2(1x+2/4) |
|
Front wheel tread |
b10(mm) |
430 |
|
Rear wheel tread |
b11(mm) |
380 |
|
Lifting height |
h3(mm) |
115 |
|
Handle height during operations |
h14(mm) |
700/1160 |
|
minimum/maximum |
|
|
|
Height with forks lowered |
h13(mm) |
80 |
|
Overall length |
l1(mm) |
1530 |
|
Body length |
l2(mm) |
380 |
|
Overall width |
b1(mm) |
540 |
|
Fork size |
s/e/l(mm) |
47/160/1150 |
|
Outer width of forks |
b5(mm) |
540 |
|
Minimum ground clearance |
m2(mm) |
33 |
|
Aisle width for pallets 800 × 1,200 |
Ast(mm) |
1783 |
|
lengthwise (200 safety gap) |
|
|
|
Turning radius |
Wa(mm) |
1330 |
|
Traveling speed, full - load/no - load |
km/h |
4.6/4.8 |
|
Lifting speed, Full - load/no - load |
mm/s |
20/25 |
|
L owering speed, full - load/no - load |
mm/s |
50/40 |
|
Maximum gradeability, full - load/no - load |
% |
6/16 |
|
Service brake |
|
Electromagnetic brake |
|
Drive motor power |
kW |
0 .65 |
|
Lifting motor power |
kW |
0.5 |
|
Battery, as per DIN 43531/35/36 A, B , C, no standard |
|
/ |
|
Battery voltage/capacity |
V/Ah |
0.5 |
|
Battery weight |
kg |
4.6 |
|
Energy consumption (VDI cycle) |
kWh/h |
0.18 |
|
Drive control mode |
|
DC speed control |
|
Driver’s parotic noise level, as per EN12053 dB(A) |
dB(A) |
<70 |
