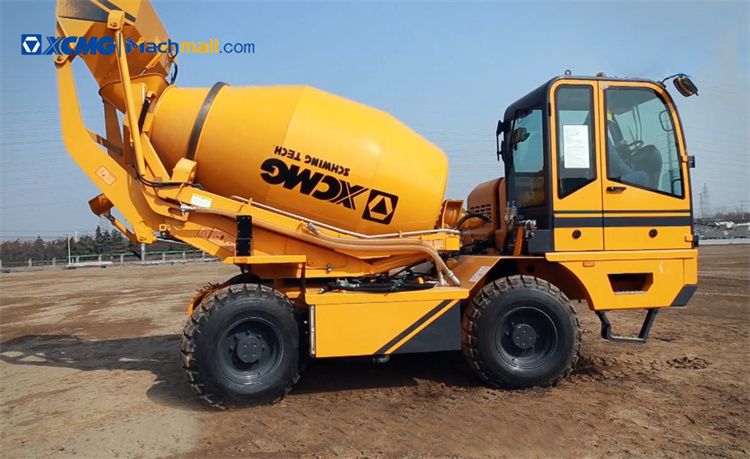

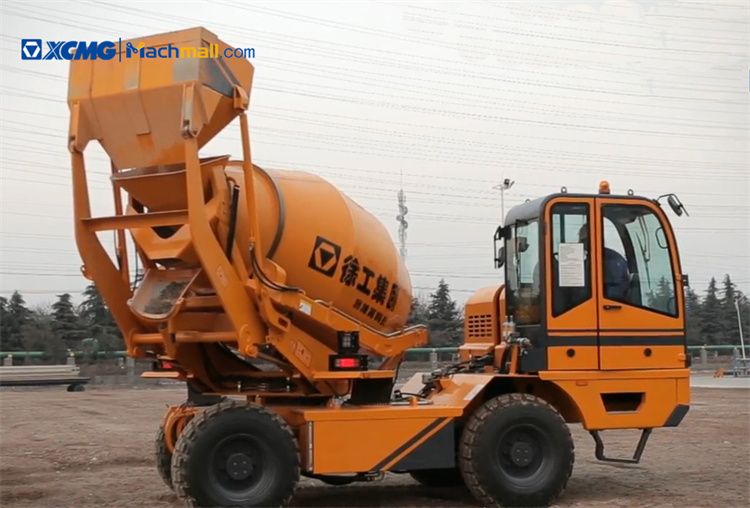

Schwing 4 cubic meters Mini Self Loading Concrete Mixer Truck SLM4.
XCMG Schwing 4 cubic meters Mini Self Loading Concrete Mixer Truck SLM4 with a maximum driving speed of 30km/h and a production efficiency of about 12-14m3/ h. All bucket action through the pilot handle to achieve.
Main Features

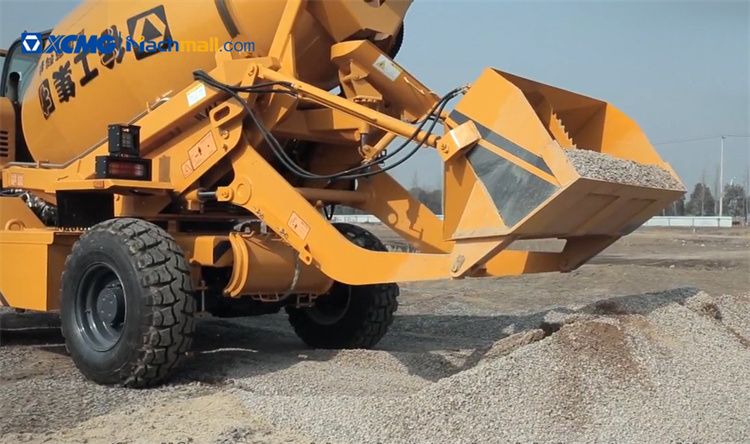

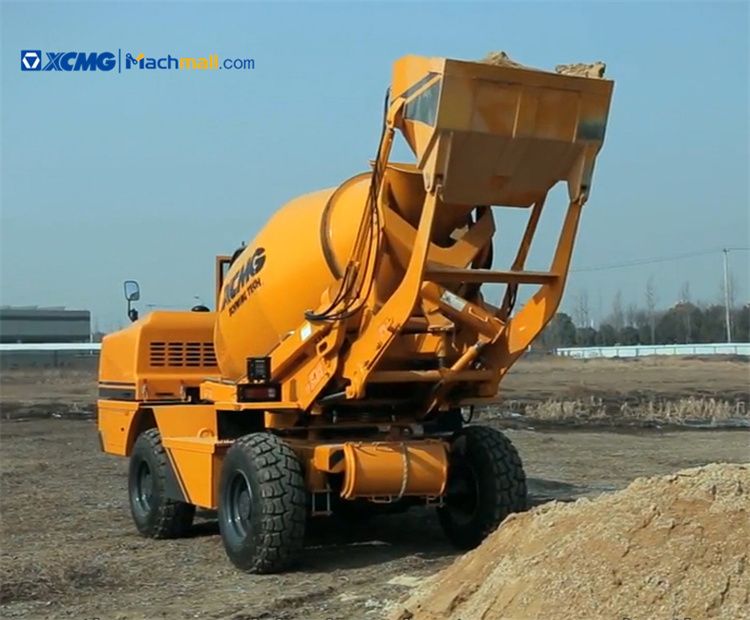

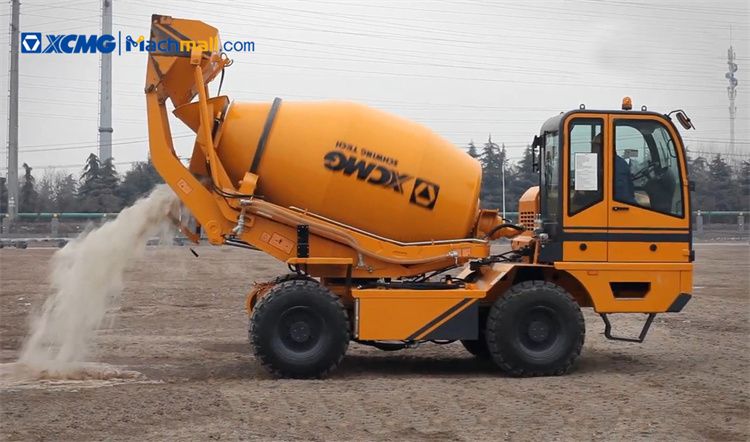

1. Self-loading concrete mixer feature combines self-loading,weighting,mixing and discharging,it can maximize and improve the job efficiency and reduce the production cost and time.
2. Multi-function integration
Self loading concrete mixer SLM4 is a kind of equipment combining the functions of existing concrete transport truck and mixing station. It can complete loading, measuring, mixing and unloading, and can realize transportation and on-site construction.
3. Hydrostatic transmission
The vehicle is four-wheel drive, so that the mixer can also produce concrete in bad working conditions, to ensure the work efficiency.
4. Weighing system
The aggregate is weighed in the loading process to ensure that the required concrete can be produced and the production efficiency can be improved with the weighing accuracy within 3%.
|
Item |
Unit |
SLM4 |
|
Engine |
/ |
82KW/2200rpm |
|
Geometrical capacity of drum |
m3 |
5.3 |
|
Max.output |
m3 |
4 |
|
Transmission system |
/ |
Hydrostatic; variable pump wih variable motor; four wheel dive |
|
Vehicle speed |
Km/h |
0~30 |
|
Cab |
/ |
Closed type; bucket movement operated by Joystick |
|
Rotation angle of mixing drum |
/ |
255 |
|
Electrical system |
/ |
Generator(28V-55A); Accumulator(24V-180Ah) |
|
Max. gradeability |
% |
44 |
|
Bucket |
L |
600 |
|
Water/fuel oil/hydraulic oil tank |
L |
900/100/140 |
|
Wheel base/wheel center distance |
mm |
2600/1988 |
|
Inner/outer turning radius |
mm |
2120/4340 |
|
Outline dimension-travelling state |
mm |
6100*2425*4008 |
|
Curb mass |
Kg |
8800 |
