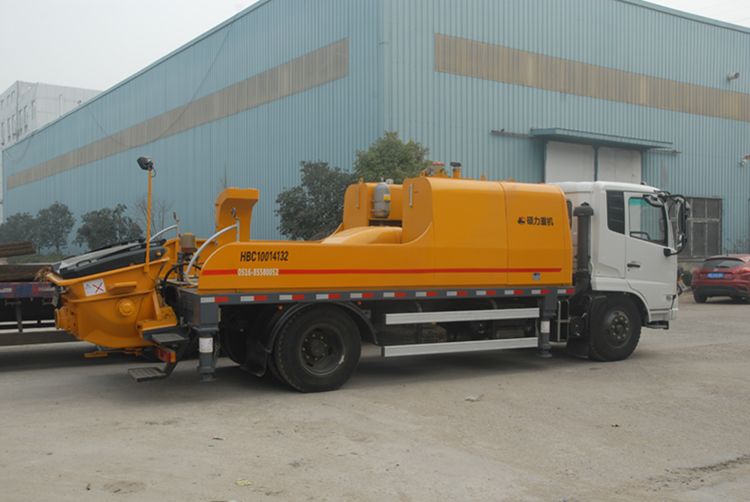

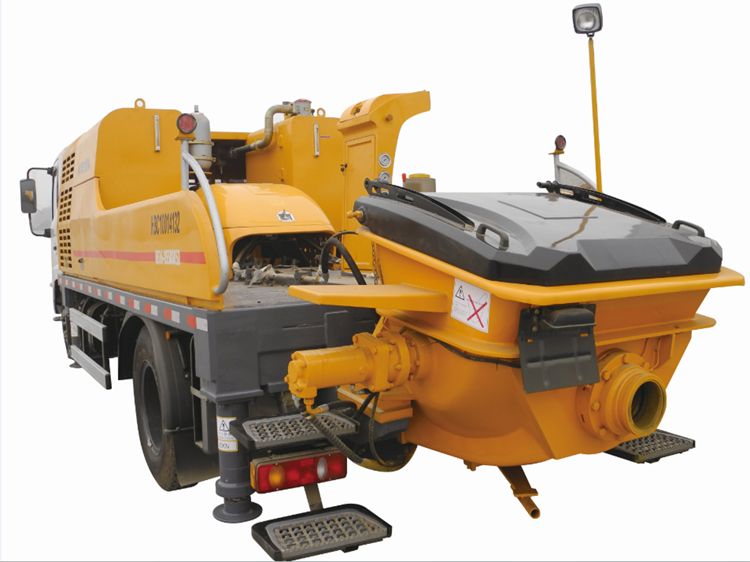

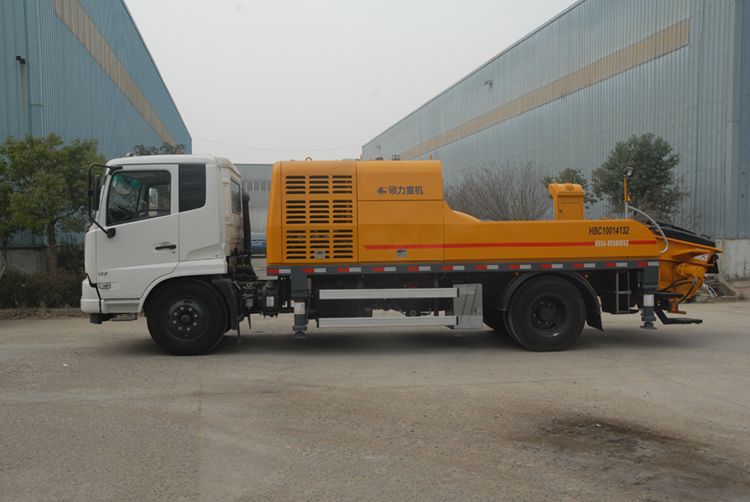

China shuoli 80m3/h truck mounted pump for concrete HBC80-11-110.

Strong power: the main engine adopts famous brand diesel engine;

High-quality hydraulic components: main oil pumps and valves are sampled from famous brand products such as German Rexroth;

Advanced hydraulic system: use open circuit, electro-hydraulic reversing system;

Equipped with high and low pressure switching valve: the working state of the pump can be adjusted at will according to the construction requirements, no need to disassemble the oil pipe to avoid system pollution;

Parameter	Unit	HBC80-11-110
Maximum concrete conveying volume	m3/h	80
Maximum pumping concrete pressure	Mpa	11
Main cylinder bore×cylinder rod×stroke	mm	φ125×φ80×φ1650
Conveying cylinder bore×stroke	mm	φ230×1650
Hydraulic system pressure	Mpa	32
Loading height	mm	1350
Main power	kW	110
Number of commutations	Times/min	21
Power system speed	r/min	1480
Model		EQ1108Z46D1
Deadweight	kg	5000
Vehicle weight	kg	11000
Maximum speed		90
Maximum power	Kw	100
Maximum grade		27
The number of passengers in the cab		3
Fully loaded front axle	kg	3020
Fully loaded rear axle	kg	6630
Front suspension and back suspension	mm	4700
Wheelbase	mm	1250/2560
Tire specifications		8.25-20-14PR
