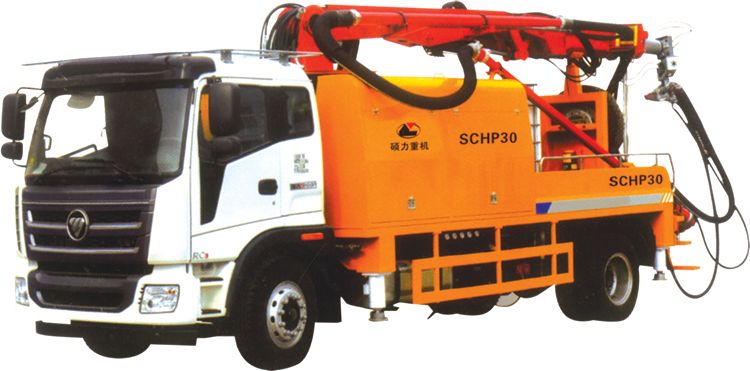

Shuoli hydraulic shotcrete machine concrete SCHP30 30m3/h displacement.
Engine and motor dual power system, fully hydraulic drive, and can be quickly switched according to needs, strong applicability, convenient operation, simple maintenance, and high safety.
The walking system is fully hydraulic double-axle drive, four-wheel steering, small turning radius, high maneuverability and maneuverability, good adaptability to individual small-area high piles or deep pits, and strong absorption of roadbed protrusions.
The dexterous spray manipulator can realize 9 degrees of freedom operation of the boom movement. The dynamic load stability is good, the operation is flexible and convenient, the construction scope is large, and there is no construction blind area, which can be applied to the needs of different working conditions. The nozzle adopts rotating spray construction, which has low rebound, less dust and high construction quality.
Fully intelligent computer control system, productivity and feeding ratio can be automatically set and adjusted, strong anti-interference ability, good construction stability and quality.
The concrete conveying adopts the S-valve plunger pump conveying method, which has high bearing pressure, long life and stable conveying.
Machine parameters | ||||
model | Unit | SGHP25／SGHP30 | SGHP25C/SGHP30 | CSGHP25D／SGHP30D |
Operation method |
| Wheeled self-propelled | Wheeled self-propelled | Wheeled self-propelled |
Engine power | Kw | 92 | 92 | 92 |
Maximum travel speed | km/h | 20 | 20 | 20 |
Minimum turning radius | m | 6.4/6.6 | 6.4/6.6 | 6.4/6.6 |
Maximum grade |
| 25° | 25° | 25° |
Minimum distance from the ground | mm | 300/350 | 300/350 | 300/350 |
Braking distance |
| ≤10m／22kmh | ≤10m／22kmh | ≤10m／22kmh |
Maximum steering angle |
| 34°/33° | 34°/33° | 34°/33° |
Long | mm | 7850/8450 | 7850/8450 | 7850/8450 |
Width | mm | 2460（transport）／2600（work | 2450（transport）／2600（work | 2450（transport）／2600（work |
High | mm | 3490 | 3490 | 3490 |
Self-weight | kg | 16000/17500 | 16000/17500 | 16000/17500 |
Coagulant system parameters | ||||
Accelerating agent pump model |
| - | - | - |
Motor Power | KW | 0,75 | 0,75 | 0,75 |
Accelerator system pressure | Pa | 8/12 | 8/12 | 8/12 |
Accelerating agent tank volume | L | 1000 | 1000 | 1000 |
Manipulator parameters | ||||
Slewing support model |
|
|
|
|
Boom structure |
| Telescopic + folding + telescopic | Telescopic + folding + telescopic | Telescopic + folding + telescopic |
Jet height | m | 16 | 16 | 17 |
Jet width | m | 28 | 28 | 30 |
Boom pitch angle |
| 30°～60° | 30°～60° | 30°～60° |
Forearm pitch angle |
| 60°~37° | 60°~37° | 60°~37° |
Forearm swing angle |
| 230° | 230° | 230° |
Nozzle horizontal axis rotation angle |
| 360° | 360° | 360° |
Vertical axis swing angle of nozzle |
| 240° | 240° | 240° |
chassis parameters | ||||
Chassis model |
| SJ25/5J30 | SJ25/5J30 | SJ25/5J30 |
Wheelbase | mm | 4230/4500 | 4230/4500 | 4230/4500 |
Front axle track | mm | 1896/1800 | 1896/1800 | 1896/1800 |
Rear axle track | mm | 1896/1800 | 1896/1800 | 1896/1800 |
Wheel mussel model |
| 16/70-20 | 16/70-20 | 16/70-20 |
Tire diameter | mm | 1020/1070 | 1020/1070 | 1020/1070 |
Front and rear axle drive mode |
| hydraulic | hydraulic | hydraulic |
Turning |
| Four-wheel steering | Four-wheel steering | Four-wheel steering |
Concrete cylinder conveying system | ||||
Work drive |
| motor driven | motor driven | motor driven |
Motor Power | kw | 75/55 | 75/55 | 75/55 |
Motor voltage | V | 380 | 380 | 380 |
Theoretical pumping times of concrete | times/min |
|
|
|
Theoretical displacement of mud concrete | m3/h | 25/30 | 25/30 | 25/30 |
Outlet pressure | Mpa | 6 | 6 | 6 |
Concrete cylinder inner diameter | mm | 160/180 | 160/180 | 160/180 |
Concrete cylinder stroke | mm | 800 | 800 | 800 |
Conveying pipe diameter | mm | Φ125-Φ80 | Φ125-Φ80 | Φ125-Φ80 |
Nozzle mouth diameter | mm | Φ45 | Φ45 | Φ45 |
Hopper feeding height | mm | 1470 | 1470 | 1470 |
