XCMG 3 ton Lithium Battery Electric Forklift XCB-30EL price
Payment
Shipping
Support Sea freight · Land freight · Air freight
Recommendation
Specs & Compare
Fork Width: 1070mm
Fork Length: 122mm
Min Lifting Height: 3000mm
Rated Loading Capacity: 3 ton
Type: Lithium Battery Electric Forklift
Model Number: XCB-30EL
Brand Name: XCMG
Place of Origin: Xuzhou, China
Add models to compare
Description

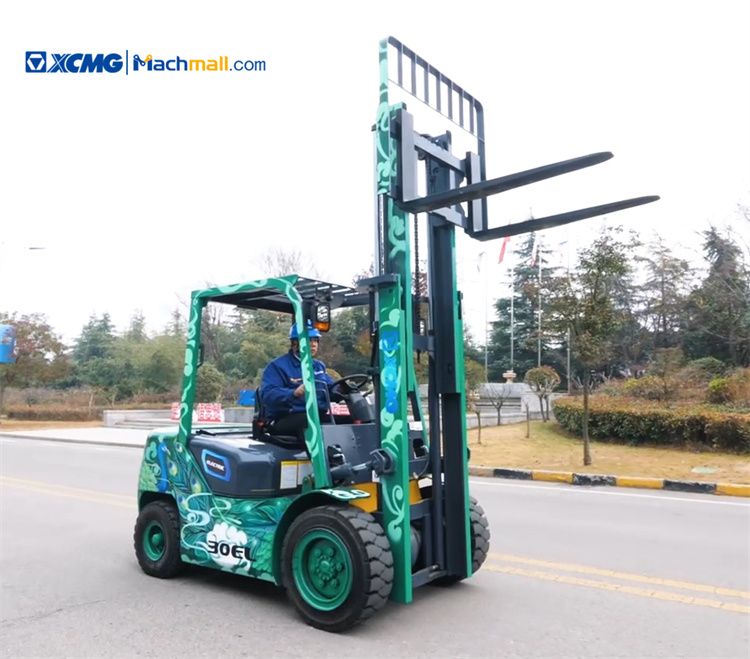

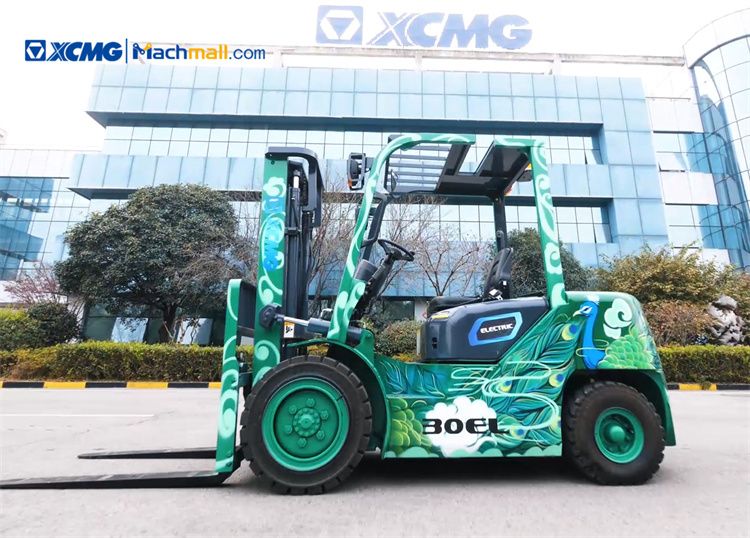

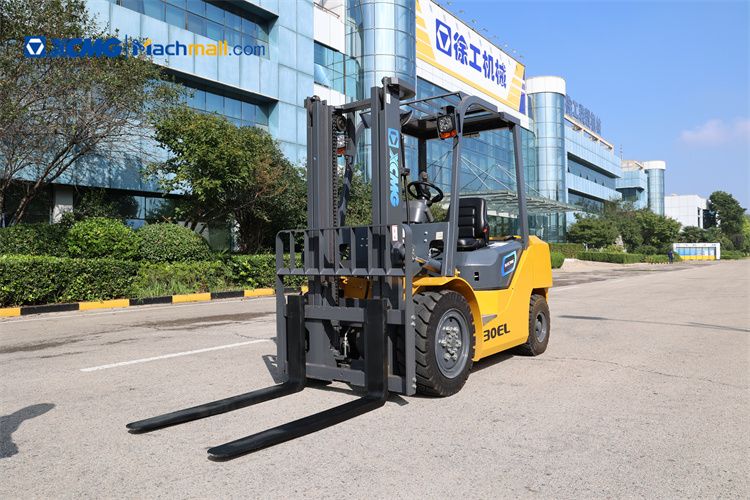

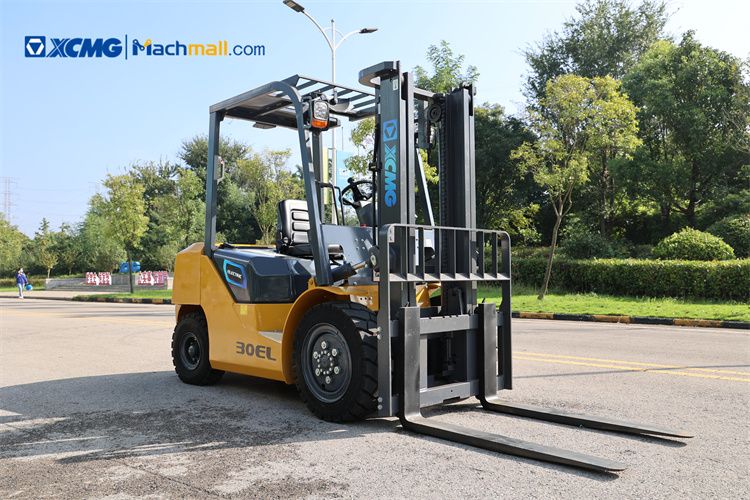

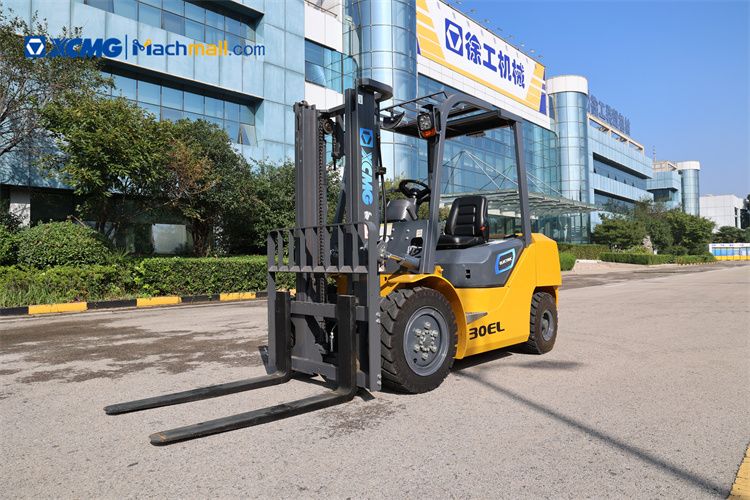

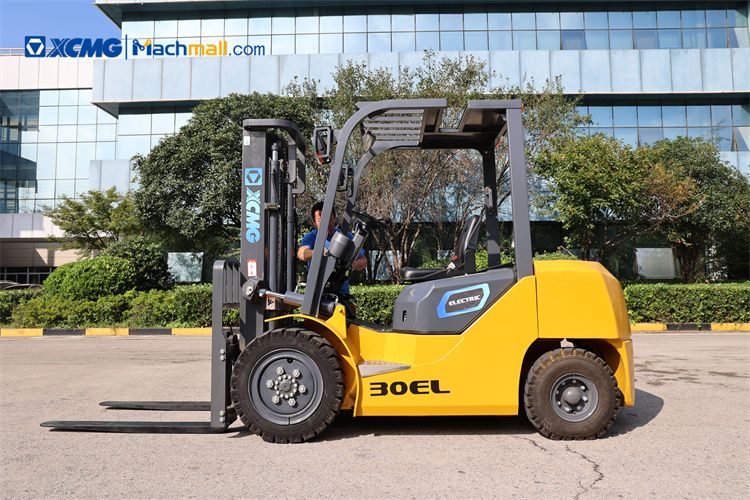

XCMG 3 ton Lithium Battery Electric Forklift XCB-30EL.



XCMG lithium battery electric forklifts XCB-30EL have further enhanced its operating capabilities, with stronger power, lower energy consumption and longer battery life. The application of XCMG's intelligent fleet management system realizes remote monitoring of vehicles, which is safer and smarter.



1. New appearance: Breaking through the industry appearance with the roof guard and the body being integrally connected.



2. Super performance: Four speed modes, two lifting modes, 20% climbing ability comparable to internal combustion forklifts;

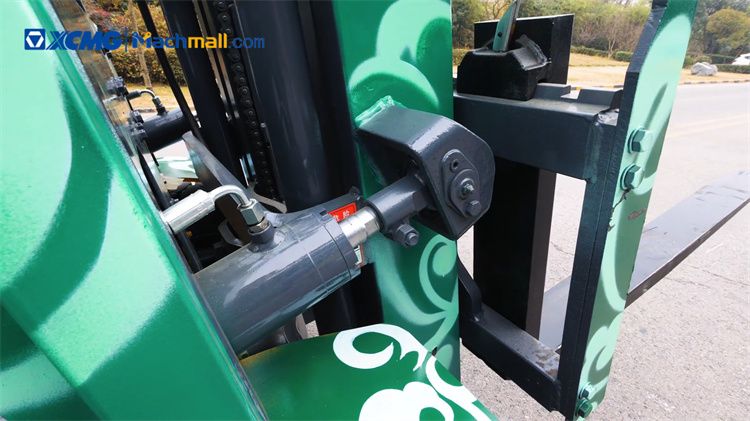

3. Safe and reliable: Smooth start, acceleration , and braking ; the hydraulic system adopts double seals; the sixth-generation hydraulic cylinder, internal circulation oil circuit, with load buffer;



4. Comfortable operation: Dual-degree-of-freedom steering mechanism to create a more comfortable operation experience;



5. Convenient maintenance: Cover parts are disassembled without tools, larger maintenance space, and more convenient maintenance location;



6. Diversified configurations: Rich product configurations are used to meet the differentiated needs of users;



7. High cost performance: Charging for two hours can make it work for ten hours. XCMG's electric forklift maintenance costs and energy consumption costs are more than half lower than that of internal combustion forklifts.



XCMG lithium battery electric forklifts XCB-30EL are dominated by internal combustion forklifts in the Southeast Asian market when they first entered the market. They have successfully entered the construction, food, and manufacturing industries, and their powerful performance perfectly adapts to the local complex operating conditions.



Classification

 Item

E series

Characteristics

Manufacturer



XCMG

Model



XCB-30EL

XCB-35EL



Power form



Lithium battery

Lithium battery



Rated lifting capacity



3000

3000

kg

Load center distance



500

500

mm

Wheelbase



1750

1750

mm

 Weight

Weight



4500

4880

kg

Front/rear axle load

 Full load

6590/910

7375/1005

kg

No load

1880/2620

1952/2928

kg

Tire

Tire form



Air inflation

Air inflation



Front wheel specifications



28*9-15-14PR

28*9-15-14PR



Rear wheel specifications



6.5-10-10PR

6.5-10-10PR



Number of front/rear wheels  x = drive wheel



2X/2

2X/2



Dimension

Mast inclination

front/rear

6°/12°

6°/12°

°

Fork size (length×width×thickness)



1070*122*45

1070*122*50

mm

Fork frame standard



ISO3A

ISO3A



Fork frame width



1100

1100

mm

Minimum height from the ground at the mast



134

134

mm

Minimum height from the ground at the frame



159

159

mm

Minimum turning radius



2400

2400

mm

Height when the mast is back down



2067

2117

mm

Free lift height



165

170

mm

Lifting height



3000

3000

mm

Maximum height when the frame is raised (with shelf)



4068

4068

mm

Height of overhead guard



2140

2140

mm

Performance

Maximum traction force



20000

21000

mm

Service brake



Mechanical hydraulic

Mechanical hydraulic



Parking brake



mechanical

mechanical



Walking motor power



16.6

16.6

KW

Maximum travel speed



13.5/15

13.5/15

KM/H

Maximum Lifting speed



280/390

280/390

MM/S

Falling speed



690/260

690/260

MM/S

Maximum grade-ability



15

15

%

Lifting motor power



16

16

KW

Battery capacity



80V/206AH/277AH/554AH

80V/206AH/277AH/554AH

V/AH











More About XCMG Lithium Battery Electric Forklifts
