XCMG XCC-LW15 1.5 ton electric pallet truck with battery is made of environmental-friendly elastic material to realize comfortable operations and good insulation and damping and optimize the operator'S comfort.

1. The whole series is equipped with load wheel to realize higher stability and reliability of the machine body.

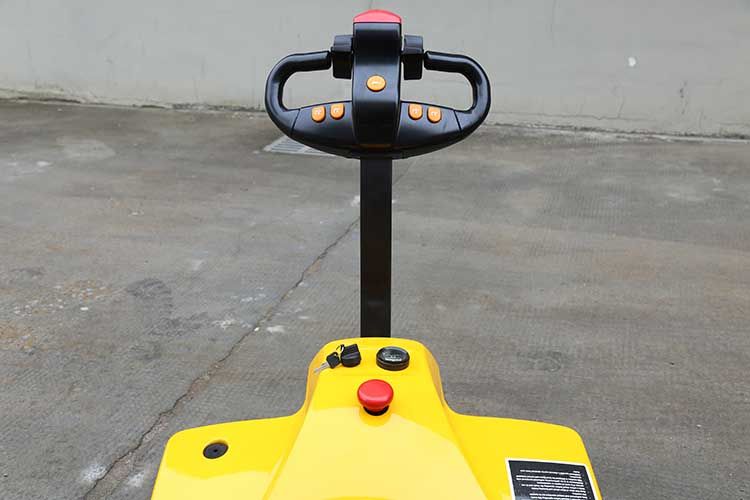

2. All switches and buttons are arranged at humanized and easily accessible positions to ease the operations. The built-in password lock and LCD screen realize the intelligent.

3. The machine can realize the traveling function with vertical handle to ensure the safe traveling and steering operations within a truck, elevator, or narrow space.

4. The frame adopts metal coverings to protect the internal parts. The forks are designed with large foot seals for quick insertion into and withdrawal from the pallets.

5. The independent charging coupler is applied to charge the battery without removing the battery from the machine. The maintenance-free intelligent lithium battery with standard built-in battery management system (BMS) and the high- power charger guarantee the outstand performances of the battery and realize intelligent control and quick charging.

	Product Name	XCMG Electric Truck Pallet Forklift 1.5 Automatic Forklift For Sale
Feature	Load capacity	Q(kg)	1500
	Load center	C(mm)	600
	Wheel base	Y(mm)	1284/1345
	Operating type		Walkie
Demension	Min.fork lowered height	H1(mm)	85
	Max.fork lifting height	H(mm)	195
	Fork Size (L×W×T)	mm	1150(1200)/160/44
	Min.Turning radius	Wa(mm)	1510
	Overall length	L1(mm)	1626
	Overall width	B(mm)	560/685
	overall hight(with handle/without handle)	H4(mm)	1190/710
Wheels	Wheel type	-	PU
	Wheel quantity Driving wheel/Balance wheel/Bearing wheel	-	1/0/4
Electrical configuration	Brake	-	Electomagnetic/Regenerative
	Drive motor/Lift motor/Steering motor	KW	DC0.63/DC0.8/0
	Battery voltage	V	24
	Battery capacity	Ah	70
	Controller	-	CURTIS
Weight	Battery weight	kg	48
	Service weight with battery	kg	275
*This product is looking for an agent, please contact us.

FAQ:

Q.Are you the offical manufacturer?

A:Of course! If you look carefully,you'll find the name of this shop is XCMG Forklift Co.,Ltd. We have the whole series products you need.

Q.What kind terms of payment can be accepted?

A:Normally we can work on T/T term or L/C term.

Q.Which incoterms 2010 terms can we work?

A:Normally we work on FOB,CFR,CIF.

Q.What about the delivery time?

A:7-30 days after receving the deposit.

Q:What about the warranty time?

A:12 months after shipment or 2000 working hours.

Q.I investigated many manufacturers on the Internet. But I don't know which one to choose.

A:No One Can Succeed Casually！Please Believe The Strength Of N0.1.

Q:Can I be the agent of XCMG in my state/country?

A:Of course! This year,We focus on "Global Searching for Agents.XCMG for Your Success".
