Model |
Desc |
Qty |
EXW price |
|
|

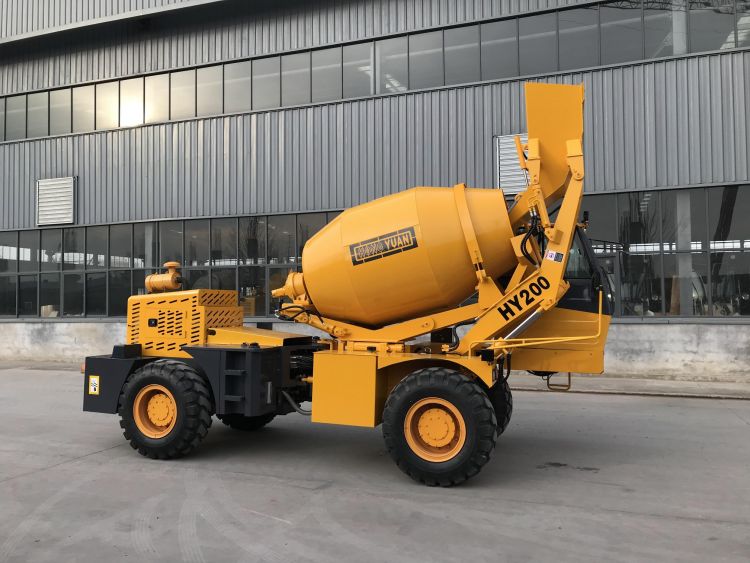

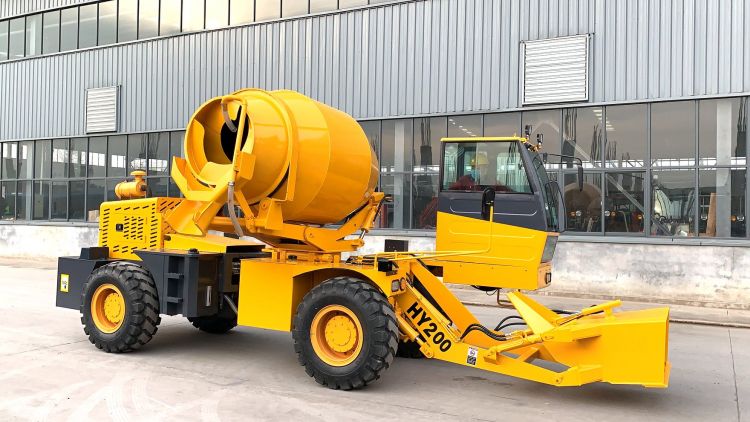

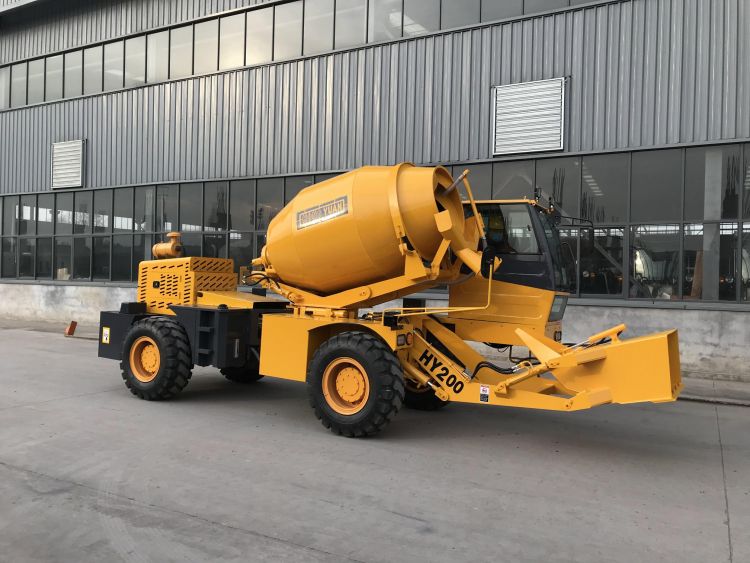

HY200 mobile self loading concrete mixer with 240°rotation function |
Yunnei 76kw engine . Concrete output productivity 2.0 cbm Automatic weighting system with printer double reverse camera . Air conditioner 4 batches per hour. Hydraulic Torque Converter Transmission, 4 wheel drive ,articulated style. 20.5/70-16 front tyres16/70-20 rear tyres . Turbo-Wom rotation . automatic upper water system ,with pump and pipes. warning light, back sound, radio, fan, hand brake, extinguisher, window hammer, Easy damaged spare parts ,tool box. |
1 |
|
|
|
|
240°rotation function |
|
|
|
|
Total |
|
|
|
|
|
Name |
Item |
Spec |
||
|
Overall machine |
Net weight |
5800kg |
||
|
Overall size |
6380*2470*2820mm(3630mm) |
|||
|
Transmission |
Full Hydraulic |
|||
|
4WD |
||||
|
Brake |
Air brake |
|||
|
Chassis |
Off-road |
|||
|
Wheelbase |
2600mm |
|||
|
Loader bucket |
Capacity |
0.3cbm |
||
|
Control |
Hydraulic |
|||
|
Tilt Angle |
30% |
|
||
|
Speed |
High speed |
0-25KM/H |
||
|
|
|
Low speed |
0-9KM/H |
|
|
Min turning radius |
3.3m/r |
|||
|
Tyre Model |
16/70-20 front 20.5/70-16 rear |
|||
|
Engine |
Type |
Yunnei |
|
|
|
Rated Power/RPM |
76KW/2400RPM |
|||
|
Max Torque/RPM |
460N.W/1400RPM |
|||
|
Cylinder |
4 |
|||
|
Starter |
Electric |
|||
|
Cooling type |
Water Cooling |
|||
|
Maxing Drum
|
Drum full capacity |
3.0cbm |
||
|
Drum work capacity |
2.0cbm |
|||
|
Bank angle |
16° |
|||
|
Self rotation angle |
240° |
|||
|
Rotation speed |
21R/min |
|||
|
Chute |
Swing Angle |
≥60° |
||
|
Angle control |
Hydraulic |
|||
|
Size |
110CM |
|||
|
Loader |
Weight model |
Computer control |
||
|
Concrete standard |
C15.C20.C25.C30 |
|||
|
Accuracy |
Cement |
≤±2%/time |
||
|
Relative error |
≤±3%/time |
|||
|
Water |
≤±1%/time |
|||
|
Additive |
≤±1%/time |
|||
|
Admixture |
≤±2%/time |
|||
|
Loader control |
Hydraulic control 4 way stick |
|||
