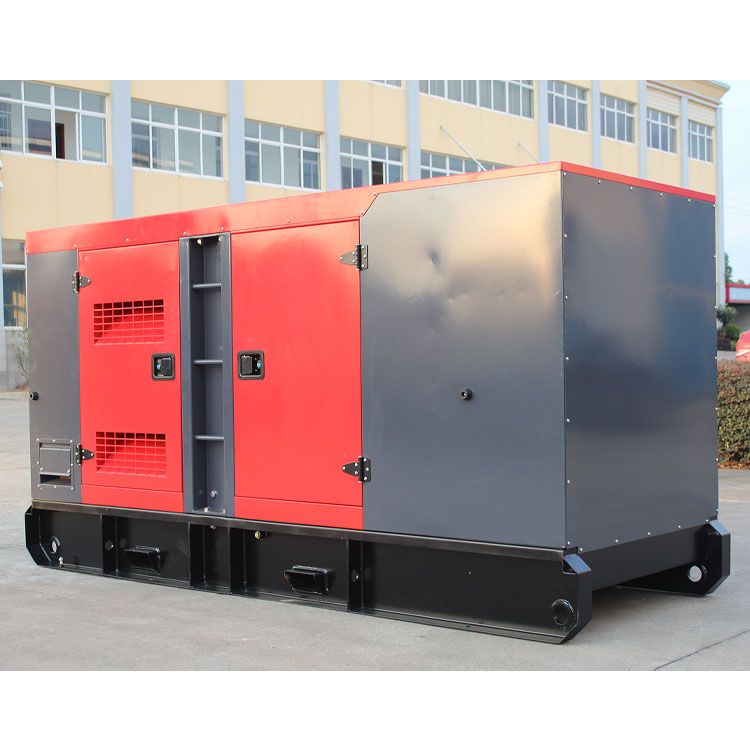

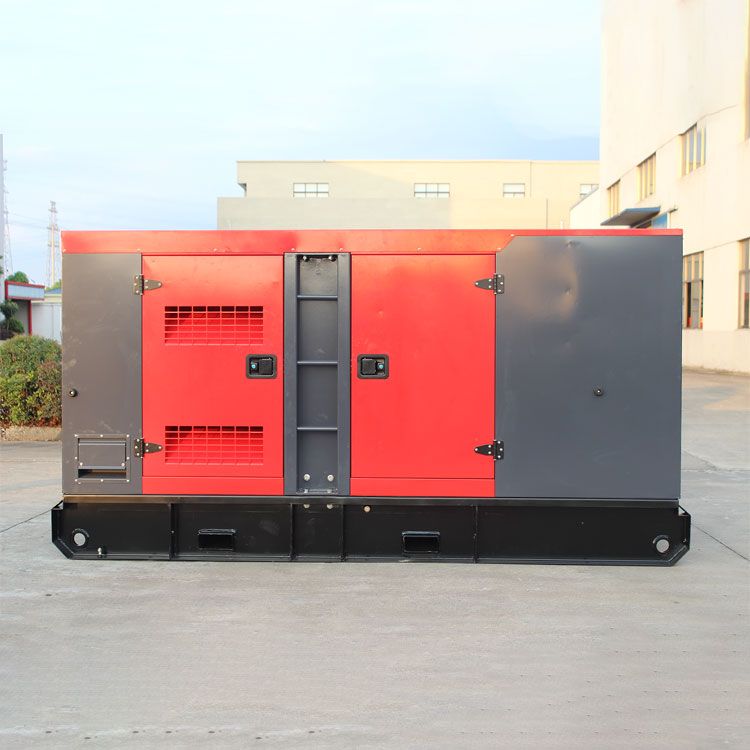

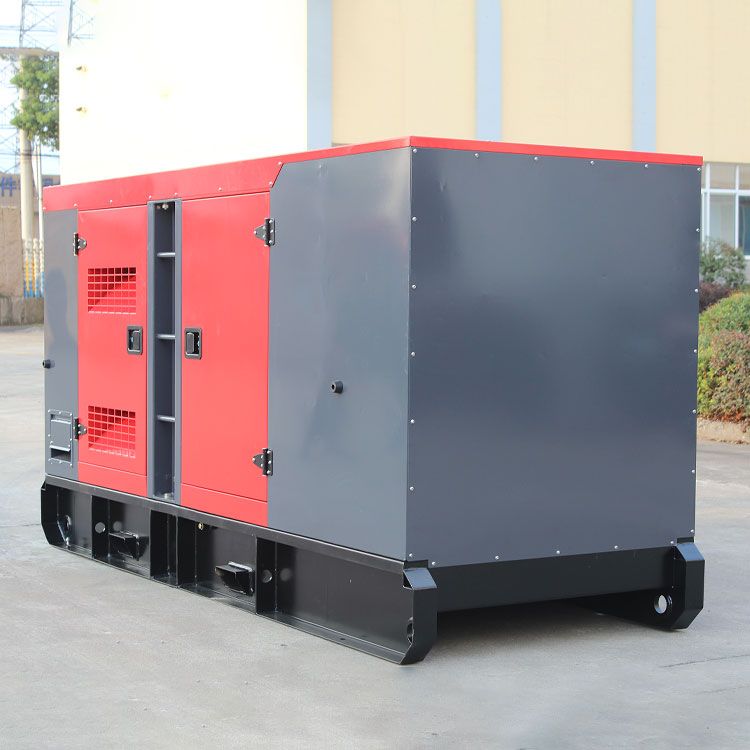

One the main parameters of the set

The model of the unit

XHZC-150GF

Rated Power

150KW/188KVA

Standby power

165KW/206KVA

Rated voltage

400/230 V

Rated current

271A

Frequency/Speed

50Hz/1500RPM

The waste of fuel with full load

215g/kw.h

Engine specification

Engine

Cummins

Brand

DCEC

Model

6CTA8.3-G2(G1)

Rated Power

163KW/204KVA

Standby power

180KW/225KVA

No. of Cylinders

6

Type

4 cycle

Aspiration

Turbocharged & Aftercooled

Standby power

50Hz/1500RPM

Bore*Storke:

114 *135MM

Displacement

8.3L

Compression Ratio

17.3:1

Lubricating oil capacity

16L

Cooling system

30L

Starting way

      DC24V starting with electricity

Alternator specification

Brand

XHZ

Place of production

Jiangsu

Model

WXHZ-150

Type

brushles

The connecting way of the phase

three phase four lines

Frequency/Speed

50Hz/1500RPM

Insulation degree

H degree

Grading Protection

IP23

Winding connection

Star

Voltage regulator type

AVR

Bearing

Single Bearing

Coating

Vacuum impregnation

coupling

Flexible disc

Control system introduction

Brand

             Smartgen

Place of production

             ZhengZhou

Model

           HGM6110series

HGM6110series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of single genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and “three remote” (remote control, remote measurement and remote communication). The controller uses LCD display, optional language interface including Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French with easy and reliable operation.

HGM6110series automatic controller uses micro-processing technique which can achieve precision measurement, value adjustment, timing and threshold setting etc. All the parameters can be configured from front panel or use USB interface (or RS485 interface) to adjust via PC. It can be widely used in all types of automatic control system for its compact structure, simple connections and high reliability.

Mains

Generator

Line voltage (Uab, Ubc, and Uca)

Line voltage (Uab, Ubc, and Uca)

Phase voltage (Ua, Ub, and Uc)

Phase voltage (Ua, Ub, and Uc)

Frequency HZ

Frequency HZ

Voltage regulator type

AVR

Load

Current IA, IB, IC

Active power KW

Reactive power KVar

Apparent power KVA

Power factor PF

Generator accumulated energy kWh

Mains have functions of over/under voltage and lack of phase; Gens have functions

of over/under voltage, over/under frequency and over current;

Precision measure and display of parameters about engine

Temp. (WT)

°C/ °F both are displayed

Oil pressure (OP)

kPa/Psi/Bar are all displayed

Fuel level (FL)

%

Speed (SPD),

RPM

Battery Voltage (VB)

V

Charger Voltage (VD)

V

Alternator specification

Brand

XHZ

Place of production

Jiangsu

Model

WXHZ-150

Type

brushles

The connecting way of the phase

three phase four lines

Frequency/Speed

50Hz/1500RPM

Insulation degree

H degree

Grading Protection

IP23

Winding connection

Star

Voltage regulator type

AVR

Bearing

Single Bearing

Coating

Vacuum impregnation

coupling

Flexible disc
