Max Lifting Height: 3000mm

Rated Loading Capacity: 1.5-3.8 ton

Power Source: Lithium battery/lead acid

Type: Electric counterbalanced forklift

Model Number: XCB15-38

Brand Name: XCMG

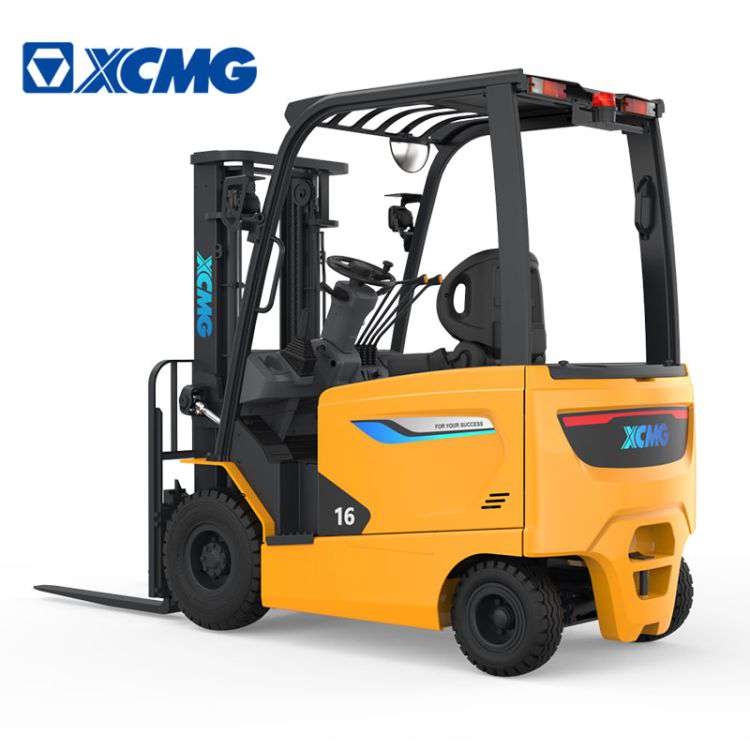

XCMG official new KunPeng series 1.5-3.8 ton electric counterbalanced forklift.

Relay on XCMG own core technology and parts, Kung-Peng Series Electric Counterbalanced Forklift practice the“Leading Technology, Durable”Golden Standard, produce mid-to-high end electric forklifts product with high cost performance ratio.

1. Kung-Peng Single Drive Type C, overall performance surpass traditional electric forklifts, high operating efficiency.

2. Lead-acid and lithium battery can be fast replaced, handy for multiple working schedules or battery changing free area.

3. Floor pad and balancing-weight cover are easy disassembly, main maintenance parts are located at front or rear conspicuous positions.

4. PSE three gear switch to fulfill different speed or different acceleration needs.

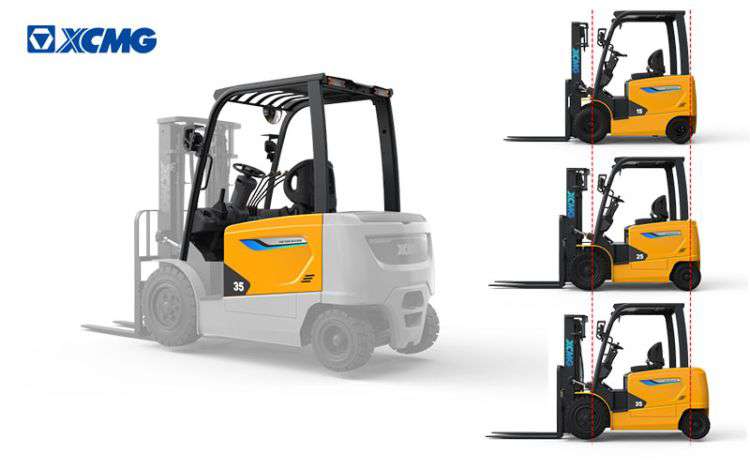

5. Wide vision mast, USB port, Cup holder, Cell phone holder, three gears and wide space form excellent ergonomic.

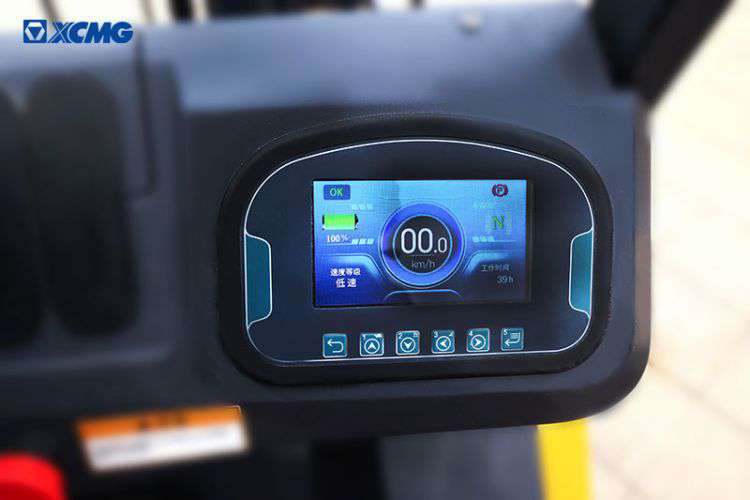

6. 1.5-3.8t Kung-Peng Forklifts’Roof protection, covers, display panel can be exchanged.

Features	1.1	Manufacturer		XCMG
	1.2	Model		XCB15	XCB18	XCB20	XCB20	XCB25	XCB30	XCB35	XCB38
	1.2a	ConﬁgurationNumber		L2-C/L5-C	L2-C/L5-C	LX2-C/LX5-C	L2-C/L5-C	L2-C/L5-C	L2-C/L5-C	L2-C/L5-C	L2-C/L5-C
	1.3	BatteryType		LithiumBattery
	1.4	OpreationType		SitdownType
	1.5	RatedLoadCapacity	Q(kg)	1500	1800	2000	2000	2500	3000	3500	3800
	1.6	LoadCentreDistance	c(mm)	500	500	500	500	500	500	500	500
	1.7	FrontOverhangingDistance	x(mm)	408	408	413	460	460	477	482	482
	1.8	Wheelbase	y(mm)	1440	1440	1440	1606	1606	1750	1750	1780
Weight	2.1	Weight(includedbattery)	(kg)	3015	3115	3215	3930	4250	4900	5400	5600
Dimension	3.1	MastRetractionHeight	h1(mm)	1995	1995	1995	2000	2000	2070	2120	2180
	3.2	MastFreeLiftingHeight	h2(mm)	155	155	155	150	150	155	160	160
	3.3	MaxLiftingHeight	h3(mm)	3000
	3.4	MastMaxHeight	h4(mm)	4065	4065	4065	4100	4100	4217	4217	4217
	3.5	OverallLength(incluedforks)	l1(mm)	3105	3105	3105	3316	3466	3610	3615	3650
	3.6	OverallLength(withoutforks)	l2(mm)	2185	2185	2185	2396	2396	2540	2545	2580
	3.7	Overallwidth	b1(mm)	1120	1120	1120	1250	1250	1250	1250	1250
	3.8	ForkSize(Thickness/Width/Length)	s/e/l(mm)	35/100/920	35/100/920	40/100/920	40/120/920	40/120/1070	45/122/1070	50/122/1070	50/122×1070
Performance	4.1	DrivingSpeed,full-load/empty-load	(km/h)	16/17	16/17	15.5/17	16/17	16/17	16/17	16/17	15.5/17
	4.2	LiftingSpeed,full-load/empty-load	(m/s)	0.34/0.46	0.31/0.46	0.3/0.46	0.35/0.46	0.31/0.46	0.34/0.46	0.31/0.46	0.29/0.46
	4.3	LoweringSpeed,full-load/empty-load	(m/s)	0.4/0.4	0.4/0.4	0.4/0.4	0.45/0.50	0.45/0.50	0.47/0.5	0.47/0.5	0.47/0.5
	4.4	MaxTraction,full-load	（N）	11100	11100	11100	16500	16500	20000	18500	18300
	4.5	MaxGradeability,full-load/empty-load	（%）	20/27	18/26	17/25	20/25	18/25	20/25	18/25	16/25
	4.6	Accelarationtime(10meters),full-load/empty-load	（s）	6/5.5
	4.7	ServiceBrake/ParkBrake		Hydrualic/Mechnaic
