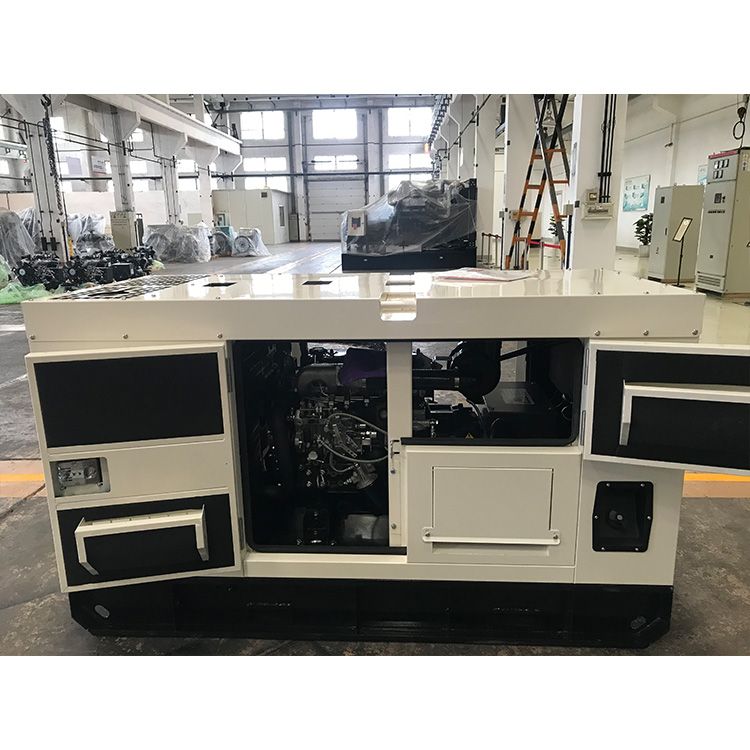

XCMG Official 20KVA mini silent diesel Power generator XCMG20 for sale
For multi machine parallel applications with complex load management, the integrated master control system is combined with the generator set controller to form an unattended fully automatic power management platform. No matter from the operation level or from the security point of view, we will provide reliable guarantee. The management platform can easily add specific functions to specific applications:
1、Complete system monitoring through touch screen
2、Complete all system logic control with programmable controller
3、Functional integration design according to user requirements
4、Intelligent network communication function (integrated cloud monitoring platform function)
| generating set specification | |||||
| (Gen-set Model) | XCMG20 | ||||
| Rated output(kw) | 16 | Standby output(kw) | 18 | ||
| Rated frequency(Hz) | 50 | Rated current(A) | 29 | ||
| Transient frequency deviation（％） | ≤+12，≤-10 | Transient voltage deviation（％） | ≤+25, ≤-20 | ||
| Frequency recovery time（s） | ≤5 | Voltage recovery time（s） | ≤6 | ||
| Frequency droop（％） | ≤5 | Steady-state voltage deviation（％） | ≤±2.5 | ||
| Steady-state frequency band（％） | ≤1.5 | Voltage modulation（V） | 0.3 | ||
| Rated capacity factor | 0.8 | Starting voltage（V） | 24 | ||
| weight(kg) | open type | 507 | Overall dimension（mm） | open type | 1345*775*885 |
| weight(kg) | fule tank | 537 | Overall dimension（mm） | fule tank | 1370*890*1020 |
| weight(kg) | low noise | 840 | Overall dimension（mm） | low noise | 2105*910*1135 |
| Control system model | EW581P-16X | Fuel tank capacity（L) | open type | none | |
| Fuel tank capacity（L) | fule tank | 80 | |||
| Fuel tank capacity（L) | low noise | 110 | |||
| Engine specification | |||||
| Rated speed（r/min） | 1500 | Compress ratio | 18:1 | ||
| 12hrs output power(kw) | 22 | 1hrs output power(kw) | 24 | ||
| Lub. Oil spec & class | CF-4 or above | Lub. Oil capacity（L） | 10 | ||
| Cylinder No.s | 4 | Bore/stroke(mm) | 90×105 | ||
| Fuel consumption（g/kw·h） | 225 | Lub.Oil consumption（g/kw·h） | 0.182 | ||
| Alternator specification | |||||
| Model | TWGⅡ184E1 | ||||
| Rated output(kw) | 16 | Rated current(A) | 29 | ||
| Phase ＆connection | Three phase four wire ,”Y” connection | Efficiency | 0.845 | ||
| Protection class | IP22 | Temp rise＆Insulation class | H/H | ||
| Telephone interference | ＜50 | Cooling | Self cooling | ||
