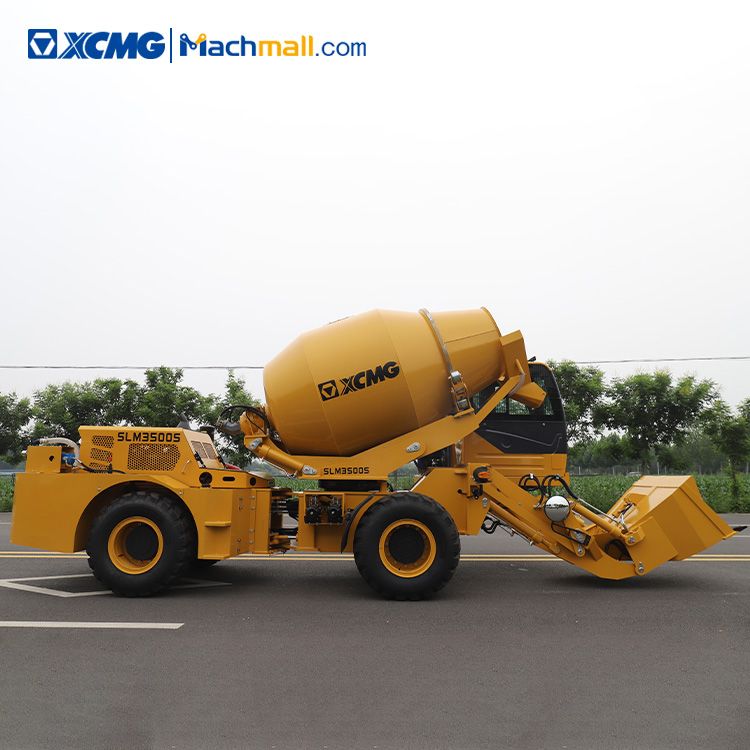

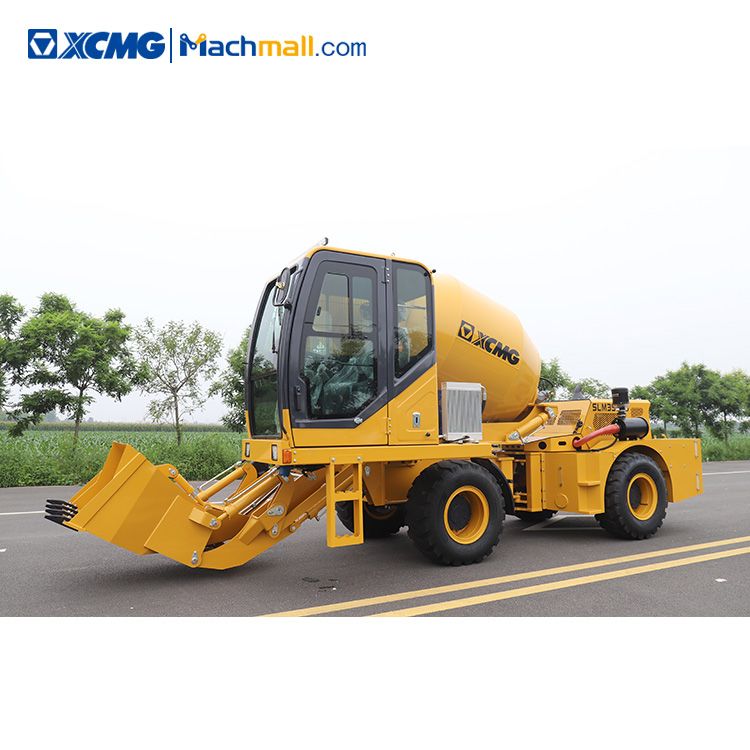

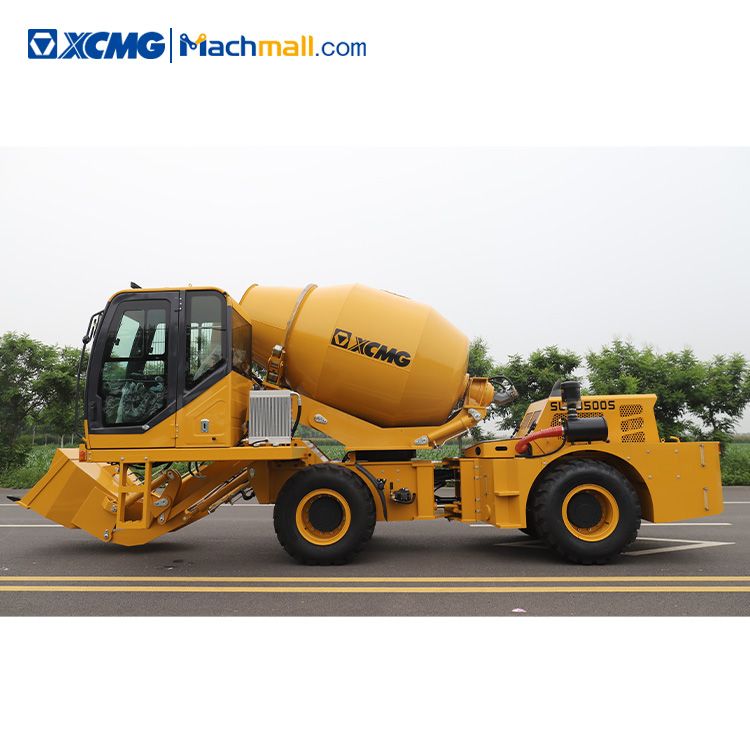

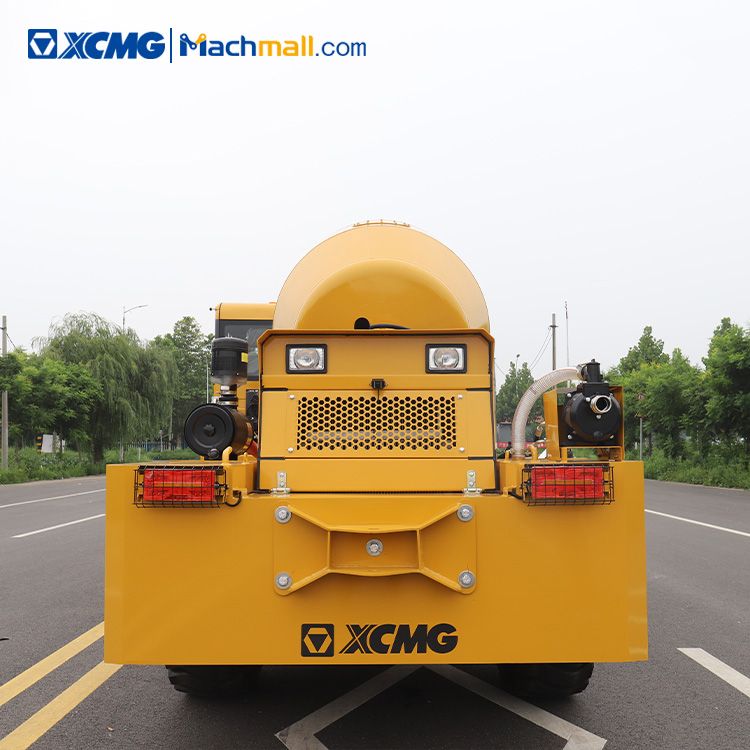

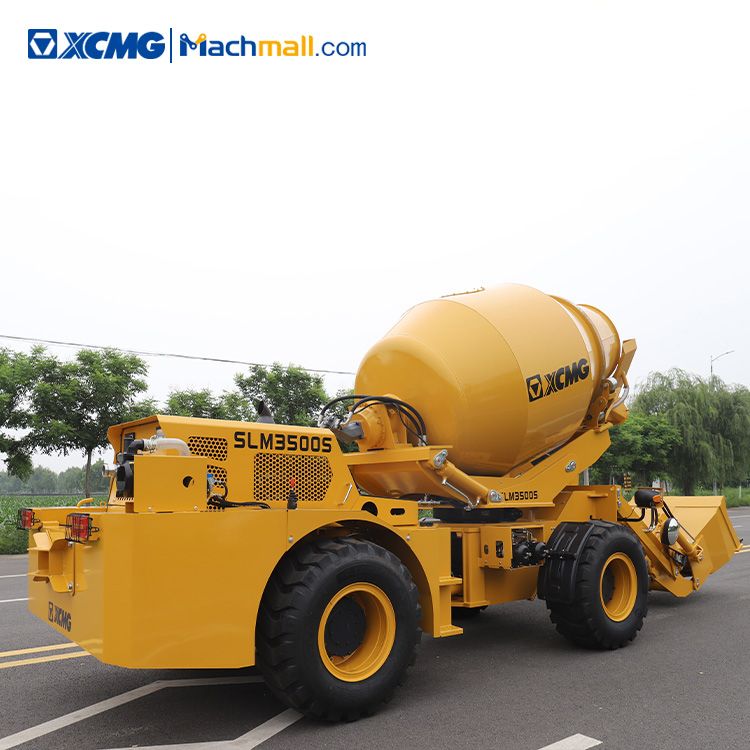

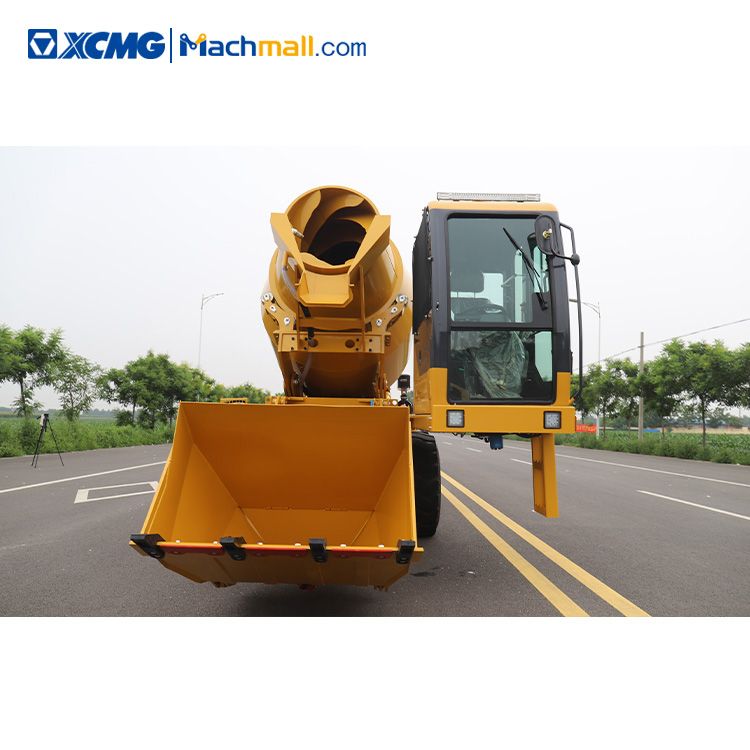

XCMG HT3.5 cubic left front drive two-way self-loading mixer SLM3500S PRICE

Output per lot: 3.5 cubic metres.

Drum rotation: discharge port height 1.8 meters, cab and tank horizontal rotation 270 tank can be raised and lowered.

ENGINE: Yuchai Power Ycd4j22t Foshan 16, diesel, water-cooled, 4 cylinders, 2600 RPM, rated power 85KW.

Drive mode: The engine is directly connected to the 280 torque converter, through the drive shaft to the transmission with dual high and low speed through the drive shaft connected to the front and rear axles to achieve 4-wheel drive.

SPEED: dual altitude, low speed 0-25 kph, high speed 0-40kph.

Driver's seat: Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat.

Hydraulic System: Open type oil, plunger type motor, two gear pumps to participate in the work.

JOYSTICK: Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank.

Clay Groove: equipped with one 150CM Removable Chute to increase the length of discharge.

Water Supply System: Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper.

BRAKES:Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper.

Steering: Hydraulic articulated steering.

Fuel tank / Water tank: 1 * 800 l water tank, 130 l diesel fuel tank, 130 l hydraulic fuel tank.

Others: Q345 manganese steel frame, excavator luxury cab, driving impact, cement bucket, air conditioning.
