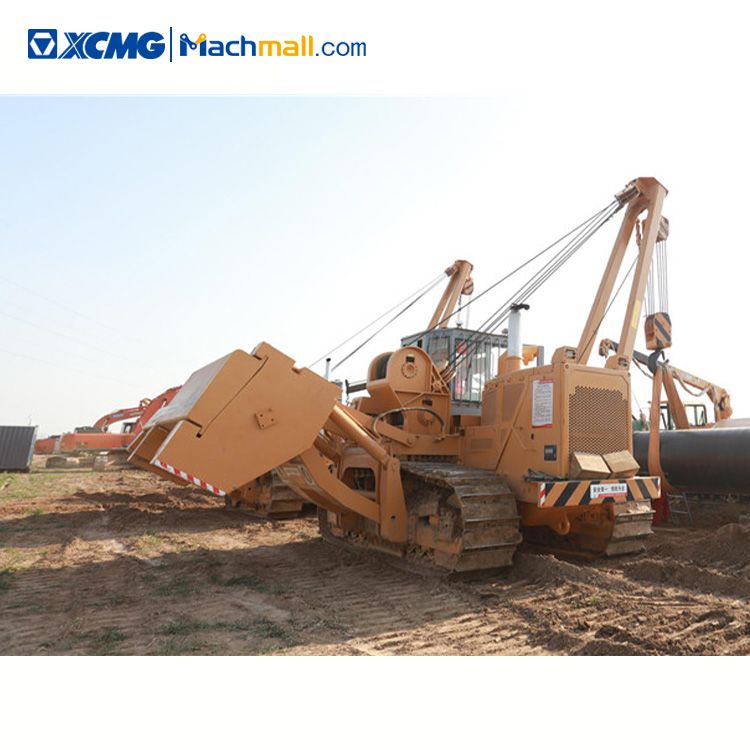

XCMG Manufacturer 40ton Pipe Layer XZD40 Sideboom Pipelayer with Hydraulic Transmission

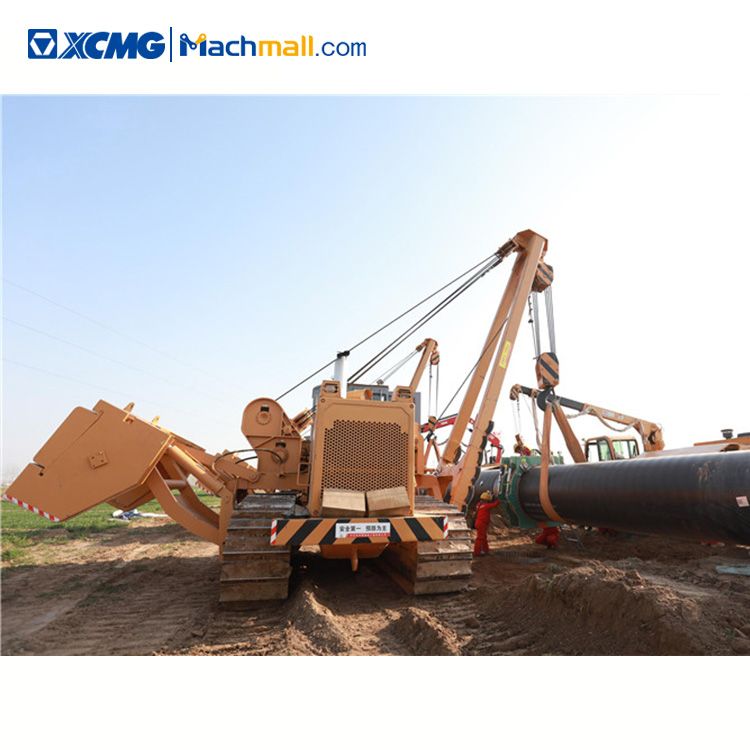

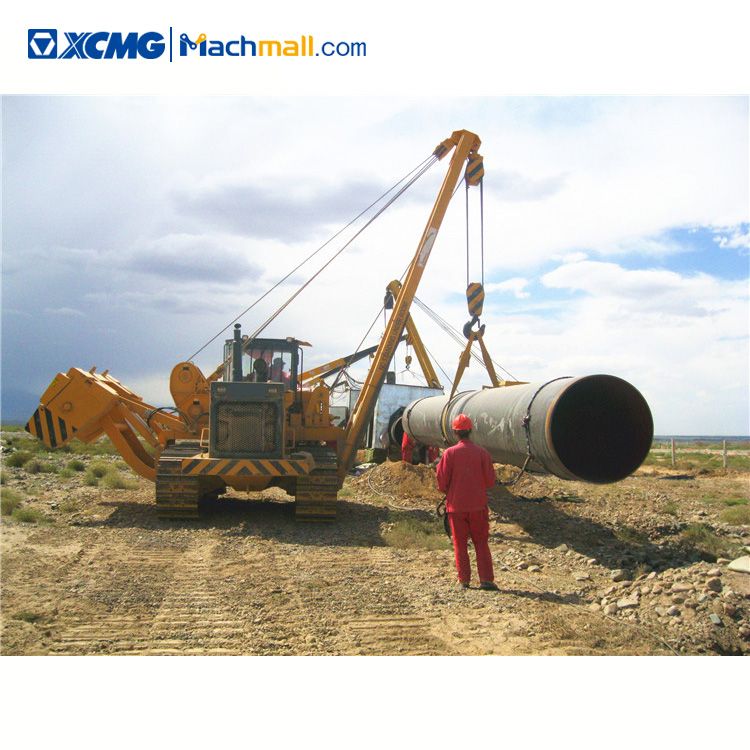

Pipelayer is an important construction equipment in the construction of oil and gas pipelines, mainly used for laying, aligning, and lowering large-diameter pipes. It has the characteristics of large lifting capacity and walking with heavy objects.
CABIN
Good visibility to work area and top of the boom with a sky window on the roof, ROPS can be installedas the optionalequipment.
ENGINE
The Cummins direct injection and turbocharged engine gives sustained power and hightorque rise that is required for the more tough jobs.
BOOM
Tubular A-Frame boom engineered for exceptionalsupport at maximum lift capacity and easy detachment.
CONTROL
Multi-axis, hydraulic joystick allows simultaneousprecisecontrol ofthe load and booms functions withone hand.Single-lever, hydraulic remote controlvalves are used for counterweight and two-speedfunctions.The controls are easy to operate and requireminimum operator training.
| Lifting Capacity at tipping point(t) | 40.00 | ||
| Max Lifting moment at min.load overhang(KN.m) | 478(392KN*1.22m) | ||
| Max Lifting moment at max.load overhang(KN.m) | 400(66.64KN*6.00m) | ||
| Boom Length(m) | 7 | ||
| Max Lifting height of hook(m) | 5 | ||
| Max hoisting speed of hook(6 part line) | 7 | ||
| Boom elevating time(s) | 35 | ||
| Engine | Engine Model | Cummins NT855-C280 | Cummins QSNT-C24O |
| Rated Power(kw/rpm) | 179/2000 | 179/2000 | |
| Track gauge(mm) | 2250 | ||
| Length of track on ground(mm) | 3050 | ||
| Track width(mm) | 660 | ||
| Operating Mode | Hydraulic Pilot Control | ||
| Rated working pressure of system(Mpa) | 20 | ||
| Min turning radius | 3.20 | ||
| Hook winch | Hydraulic driven,Planetary transmission,Free Fall Function | ||
| Diameter of lifting wire rope | 20 | ||
| Ranging wich | Hydraulic driven,Planetary transmission | ||
| Diameter of Ranging wire rope | 18 | ||
| Operating Weight(kg) | 34000.00 | ||
