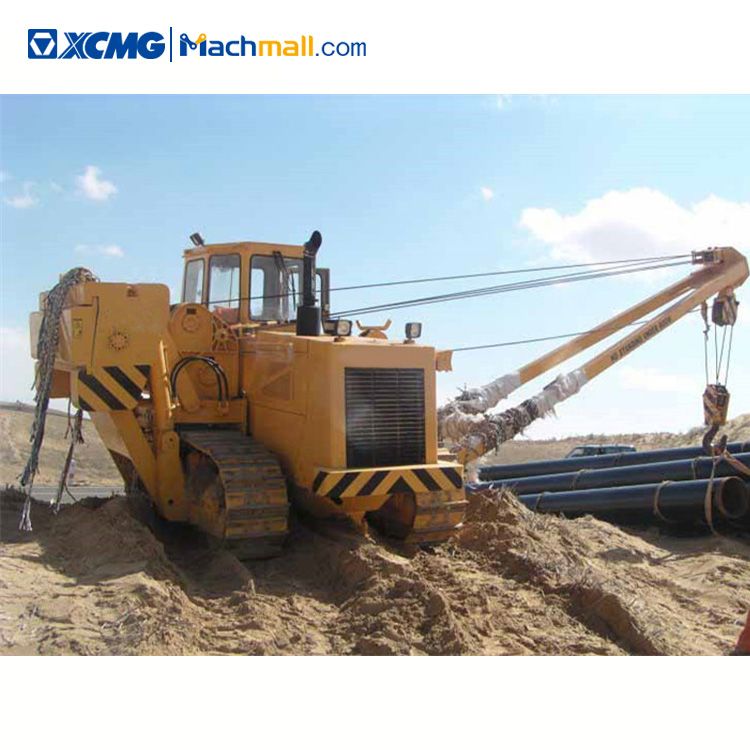

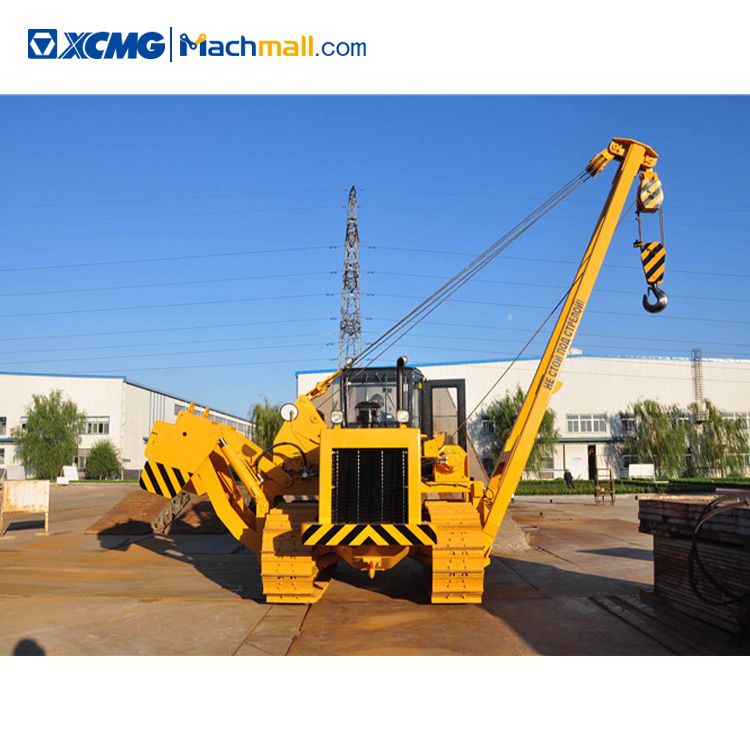

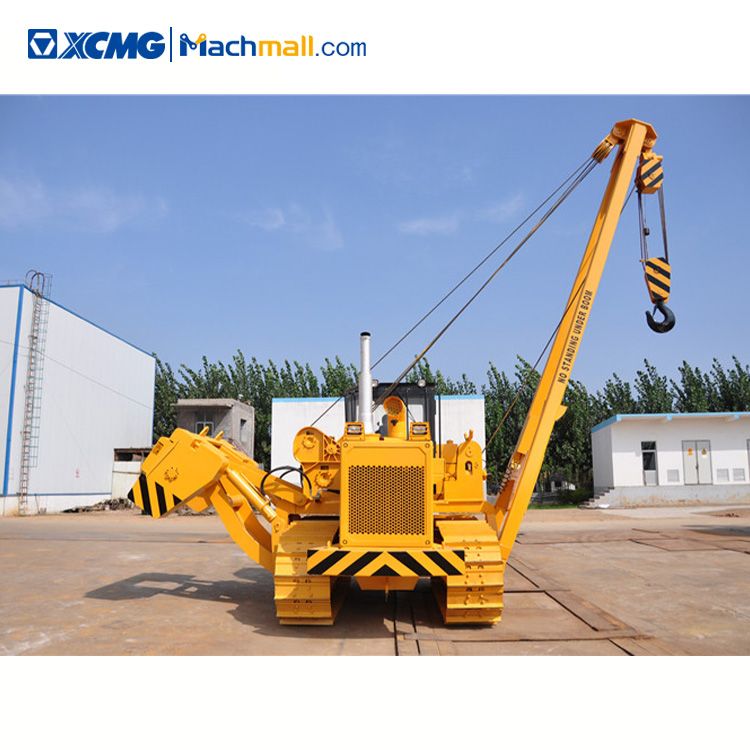

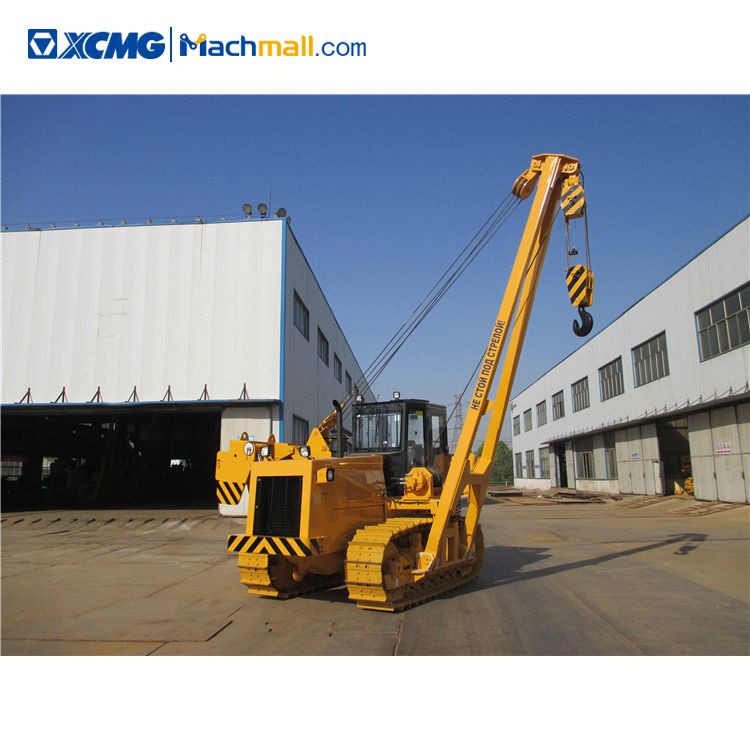

XCMG Official 25 ton Small Pipe Layer Xzd25 price for sale
Pipelayer is an important construction equipment in the construction of oil and gas pipelines, mainly used for laying, aligning, and lowering large-diameter pipes. It has the characteristics of large lifting capacity and walking with heavy objects.
CABIN
Good visibility to work area and top of the boom with a sky window on the roof, ROPS can be installedas the optionalequipment.
ENGINE
The Cummins direct injection and turbocharged engine gives sustained power and hightorque rise that is required for the more tough jobs.
BOOM
Tubular A-Frame boom engineered for exceptionalsupport at maximum lift capacity and easy detachment.
CONTROL
Multi-axis, hydraulic joystick allows simultaneousprecisecontrol ofthe load and booms functions withone hand.Single-lever, hydraulic remote controlvalves are used for counterweight and two-speedfunctions.The controls are easy to operate and requireminimum operator training.
| Lifting Capacity at tipping point(t) | 25.00 | ||
| Max Lifting moment at min.load overhang(KN.m) | 299(245KN*1.22m) | ||
| Max Lifting moment at max.load overhang(KN.m) | 176.4(29.4kN x6.0m) | ||
| Boom Length(m) | 6.5 | ||
| Max Lifting height of hook(m) | 5.1 | ||
| Max hoisting speed of hook(6 part line) | 10 | ||
| Boom elevating time(s) | 30 | ||
| Chassis Model | DGY25G | ||
| Engine | Engine Model | Weichai WD10G | Weichai WP10G |
| Rated Power(kw/rpm) | 131/1850 | 133/1850 | |
| Length of track on ground (mm) | 2570 | ||
| Track wldth(mm) | 560 | ||
| Operationg Mode | Hydraulic Pilot Control | ||
| Rated working pressure of system(Mpa) | 20 | ||
| Hook winch | Hydradic driven,Planetary transmission,Free Fall Function | ||
| Diameter of lifting wire rope(m) | 18 | ||
| Ranging wich | Hydraulic driven, Planetary iransmission | ||
| Diameter of Ranging wire raps(m) | 16 | ||
| (Operating Weight(kg) | 25000.00 | ||
