Description | Unit | Parameter value | |

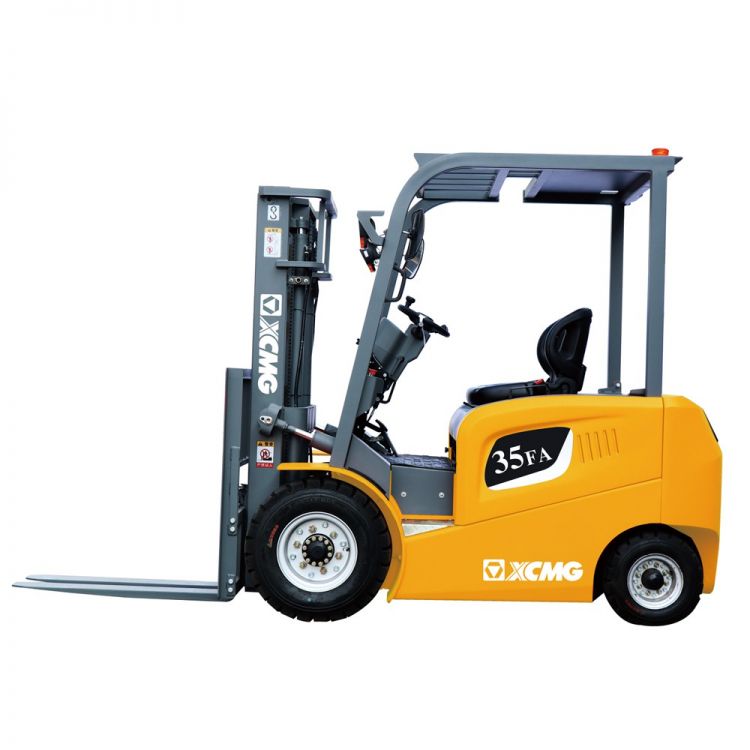

Model | CPD35FA | ||
Driving mode | seated | ||
Rated capacity | kg | 3500 | |
Load center distance | mm | 500 | |
Power mode | lead-acid battery | ||
Wheel base | mm | 1620 | |
Tyre type(front/rear) | solid tyre | ||
Wheel number(front/rear) | 2/2 | ||
Front wheel base | mm | 1270 | |
Rear wheel base | mm | 980 | |
Tyre(front) | mm | 23x9-10-18PR | |
Tyre(rear) | mm | 18x7-8-14PR | |
Front overhang | mm | 543 | |
Mast tilt angle , front/rear | ° | 5/10 | |
Height with mast retraction | mm | 2036 | |
Free lifting height | mm | 135 | |
Max.lifting height | mm | 3000 | |
Mast height,extended | mm | 4152 | |
Overhead guard height | mm | 2210 | |
Fork size:thickness x width x length | mm | 50*125*1070 | |
Truck body length | mm | 2656 | |
Truck body width | mm | 1260 | |
Min.Turning radius | mm | 2404 | |
Clearance between mast and ground | mm | 97 | |
Clearance between wheel base center and ground (loaded) | mm | 125 | |
Right angle stacking aisle width(pallet1000x1000mm clearance 200mm) | mm | 4217 | |
Right angle stacking aisle width(pallet1200x1200mm clearance 200mm) | mm | 4347 | |
Travelling speed,loaded/unloaded | km/h | 13/14 | |
Lifting speed,loaded/unloaded | mm/s | 250/400 | |
Lowering speed,loaded/unloaded | mm/s | 450 | |
Gradeability,loaded/unloaded | % | 15/20 | |
Drive motor | KW | 15AC | |
Lifting motor | KW | 10AC | |
Battery voltage / capacity | V/Ah | 80V/500Ah | |
Controller | Curtis | ||
Battery weight | kg | 1346 | |
Total weight(with battery) | kg | 5440 |
