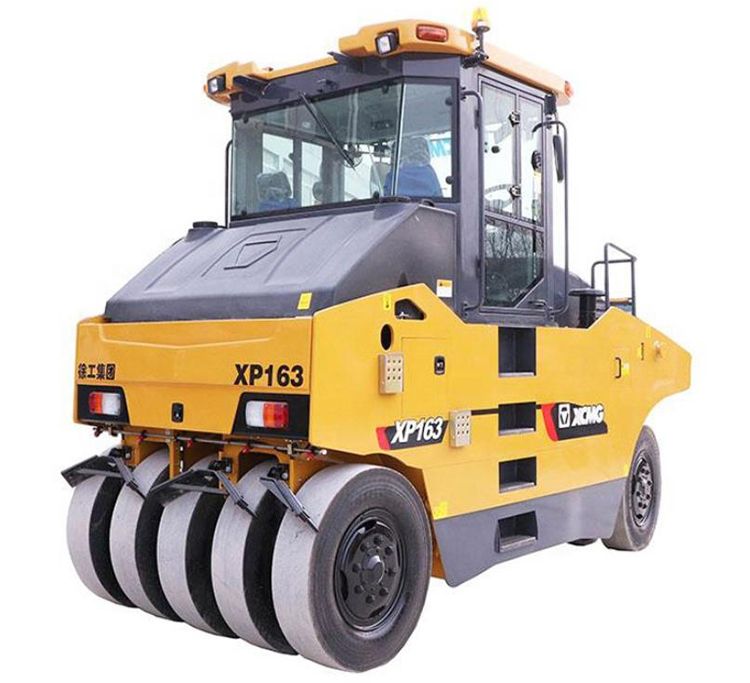

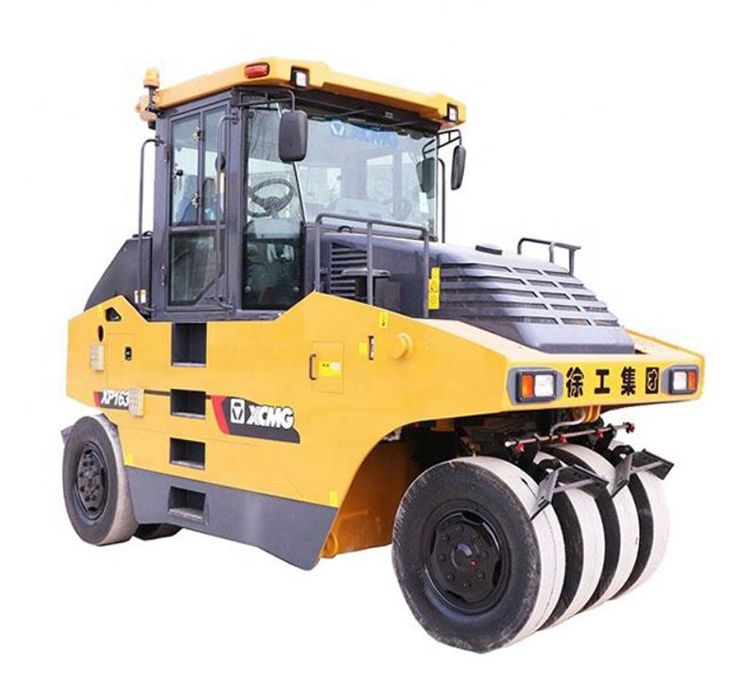

XCMG 16 ton pneumatic tyre roller XP163 static road roller.
Main parameter:
Operating weight :16 tons,
Drum width: 2250 mm,
Detailed configuration
* SHANGCHAI engine,
* With function of purling,
* Air conditioner
Advantages
Adopt good brand engine, pump. Great working performance.
Comfortable adjustable chair
Easy for operation.
XP163 tire roller is a self-propelled static roller, suitable for compacting asphalt pavement, foundation layer, sub-base layer and filling project, etc. It is an indispensable compaction equipment for road construction and water conservancy construction.
Description | Unit | Parameter value |
Minimum work weight | kg | 11750 |
Maximum working weight | kg | 16000 |
Counterweight water | kg | 650 |
Counterweight mass | kg | 3600 |
Ground pressure | kPa | 150-300 |
Driving speed | km/h | 4 |
8.3 | ||
17.5 | ||
Theoretical climbing ability | % | 20 |
Minimum turning radius | mm | 7330 |
Minimum ground clearance | mm | 260 |
Compaction width | mm | 2250 |
Tire overlao | mm | 45 |
Tire specifications | 11.00-20-16PR | |
Tire arrangement | Front 4 Back 5 | |
Engine model | SC4H115.4G2B | |
rated power | kw | 86 |
Fuel consumption | g/kw.h | ≤205(1±5%) |
Total length | mm | 4800 |
Total width | mm | 2356 |
Total height | mm | 3330 |
