XCMG 3 ton Mini Double Vibratory road Roller XMR303 Light Compactor Equipment for sale
Payment
Shipping
Support Sea freight · Land freight · Air freight
Recommendation
Specs & Compare
Weight: 3100KG
Dimension(L*W*H): 2675*1318*2680 mm
Power(W): 28.5kW
Model Number: XMR303
Brand Name: XCMG
Place of Origin: Jiangsu, China
Grade Ability: 30%
Travel Speed: 0-9.5km/h
Static Linear Pressure: 129N/cm
Type: Vibratory Roller, Double Drum Roller
Certification: ISO/CE
Add models to compare
Description

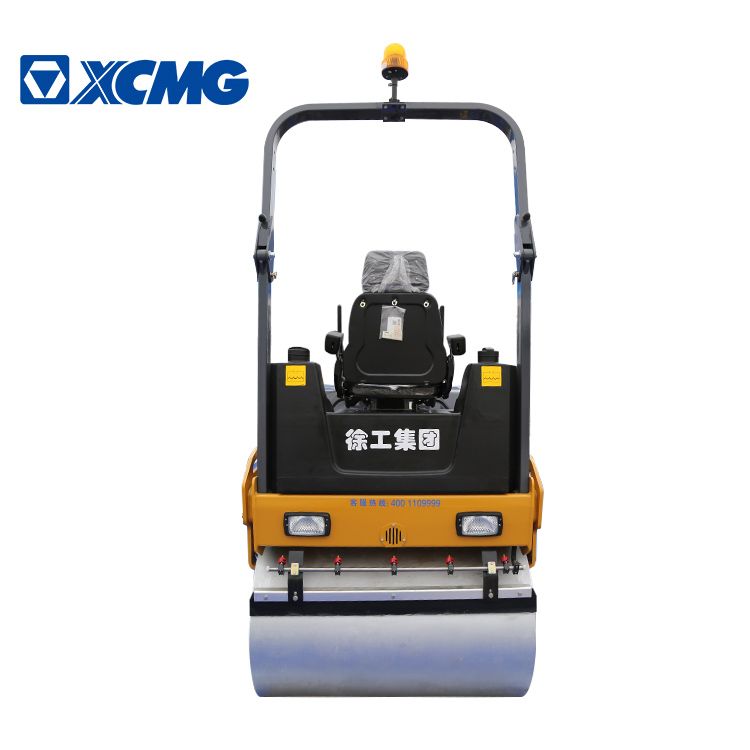

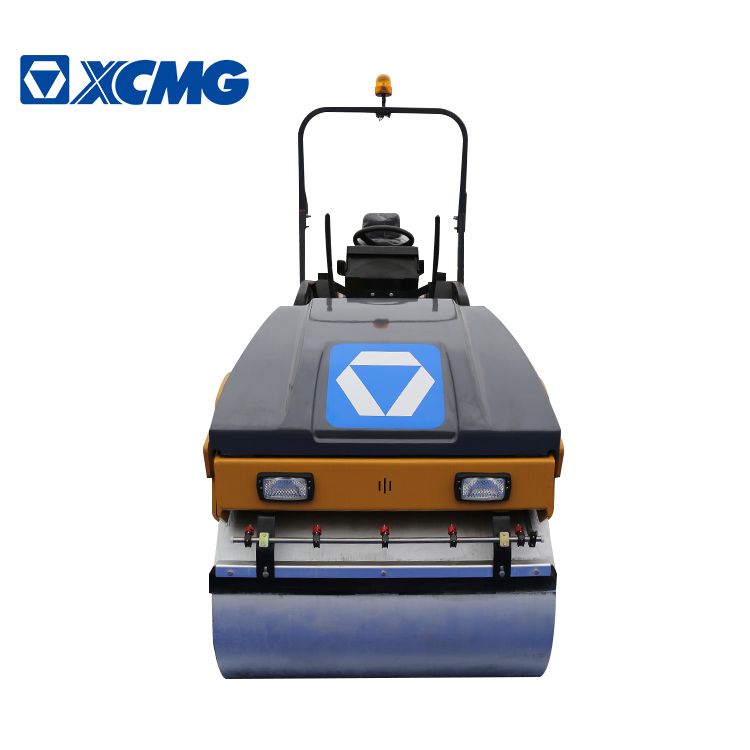

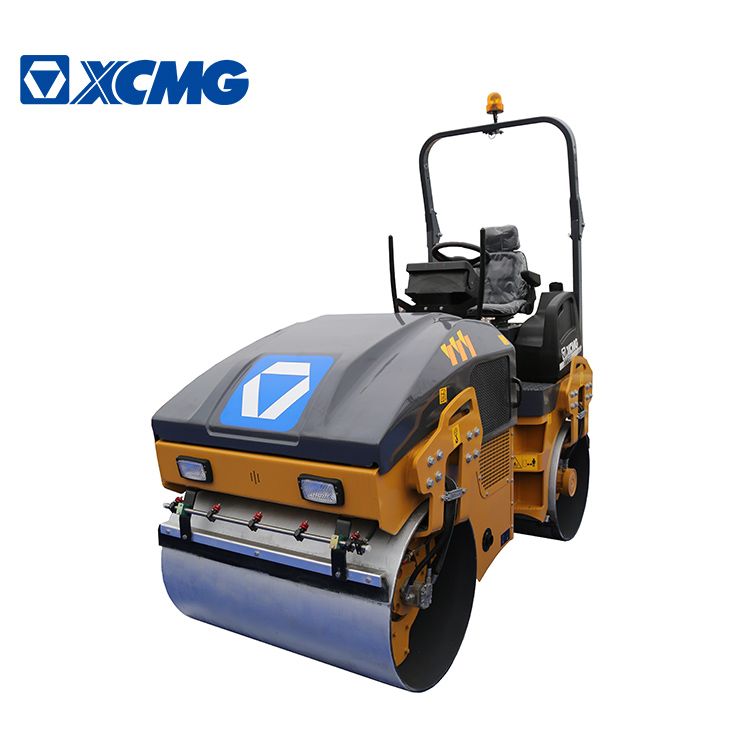

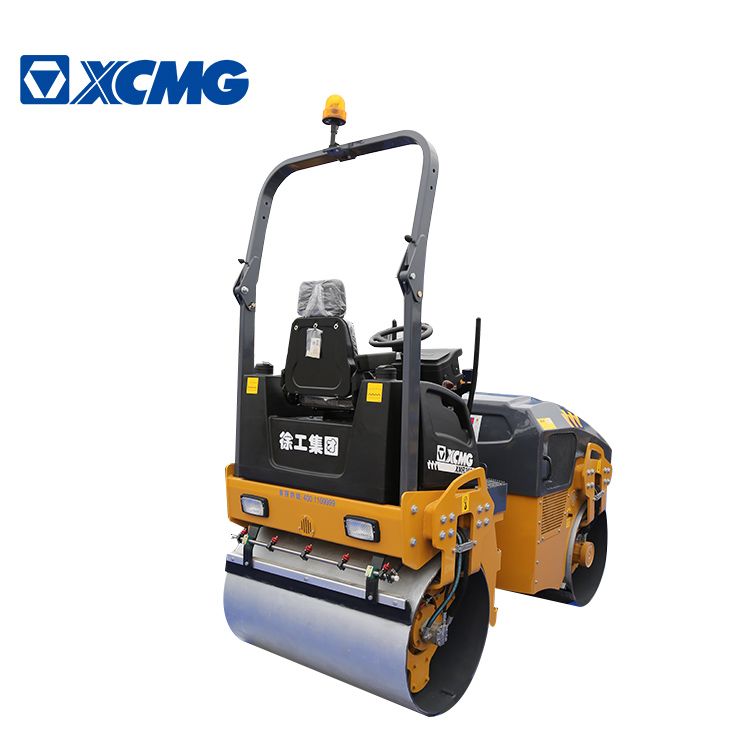

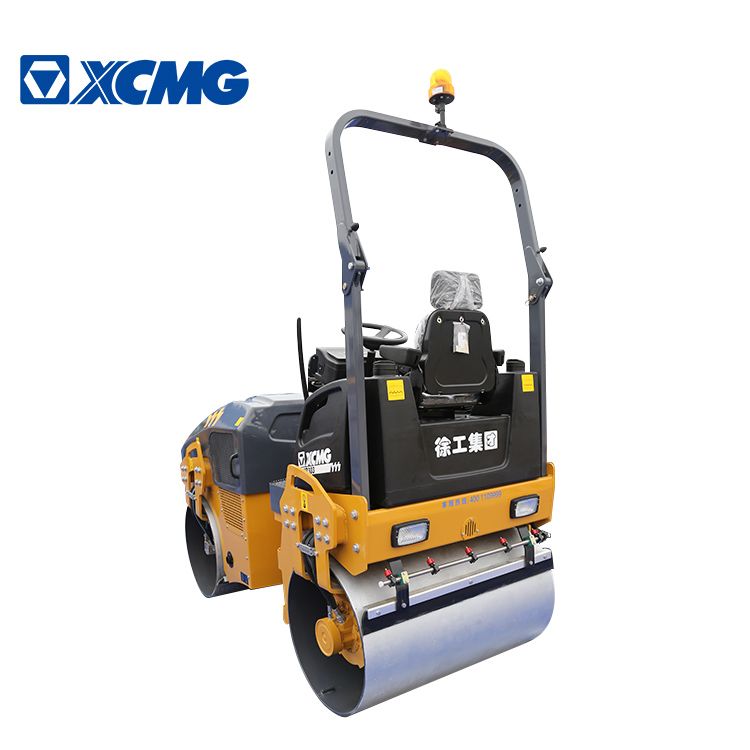

XCMG 3 ton Mini Double Vibratory road Roller XMR303 Light Compactor Equipment.



Main parameter:
Operating weight :3.1 tons ,
Vibration frequency :60 Hz,
Drum width:1200 mm,

Detailed configuration
* F2L2011 engine ,
* Hydraulic double drive,
*Single vibratory drums for XMR303, Double vibratory drums for XMR303S .,

Advantages
Adopt good brand engine , pump ,vibratory bearing .Great working performance .
Easy for compaction even on road side .High working efficiency .
Equip large capacity water tanks.



XMR303 light double drum vibratory roller is suitable for surface compaction of compaction works such as asphalt engineering and cement engineering and compaction of curbs. It is also suitable for compaction of base and base layers, sand and gravel materials.



Type

Unit

XMR303

Operating weight

kg

3100

Static linear load(front/rear)

N/cm

129/129

Travel Speed

km/h

0-9.5

Theoretical agreeability

%

30

Min. turning radius(Inner/Outer)

mm

2890/4090

Min ground clearance

mm

310

Steering angle

± °

30

Swing angle

±°

10

Vibration frequency

Hz

60

Vibrating system-max.pressure

Mpa

20

Steering system-max.rressure

Mpa

14

Nominal amplitude

mm

0.46

Exiting force

kN

32

Compacting width

mm

1200
