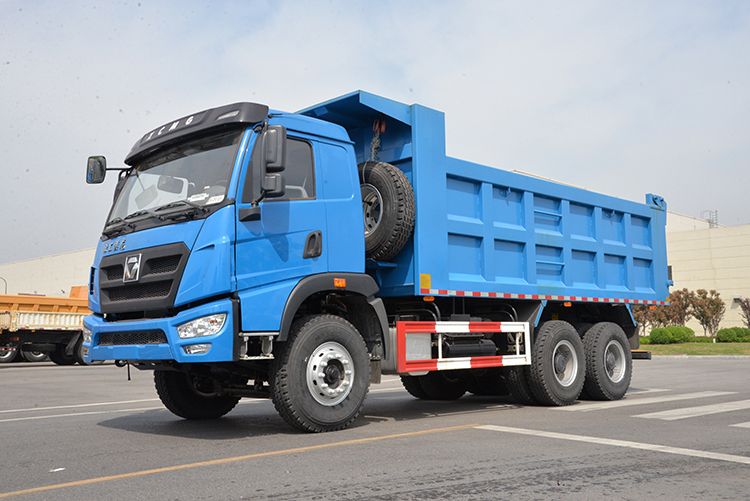

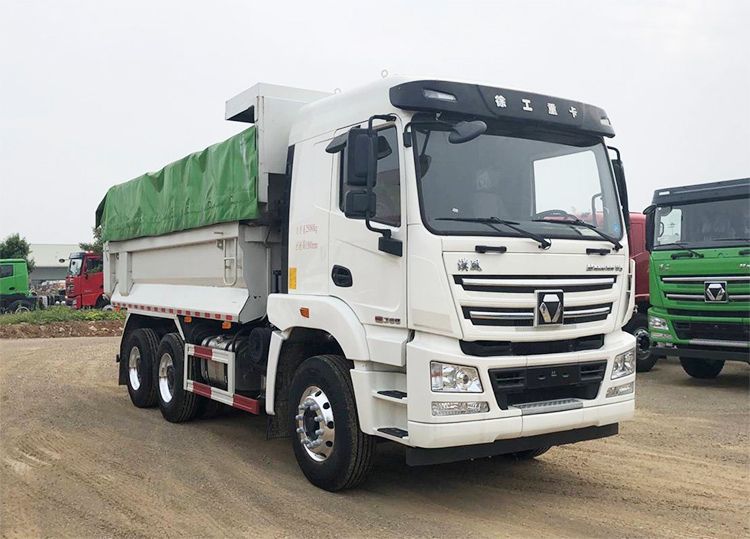

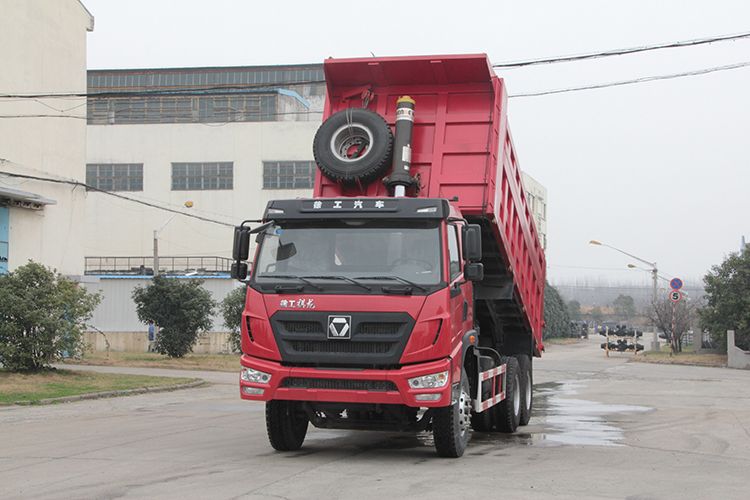

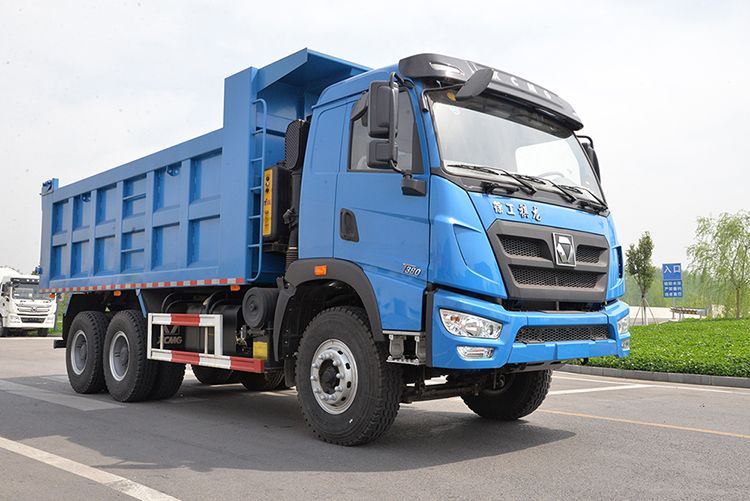

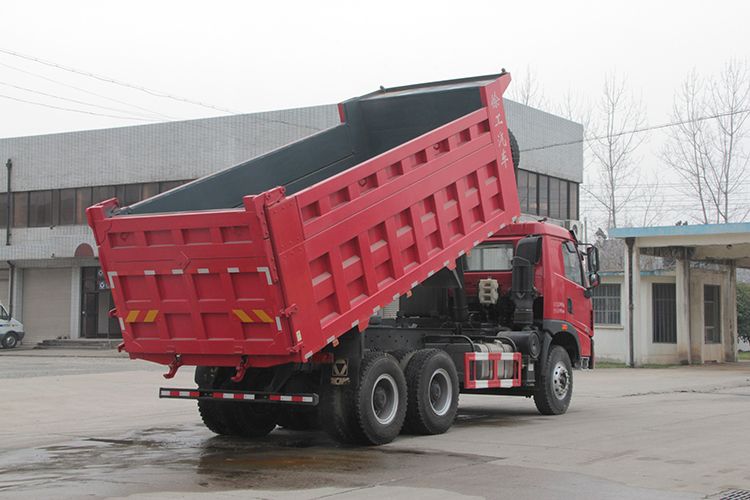

XCMG manufacturer dumper 370HP dump truck XGA3250D2KC.
Advantages and Highlights:
* T-series tipper have excellent performance at heavy load and could apply to multiple working condition. Our product aims to achieve the integration of economic efficiency, safety, reliability, and practicability.
* In view of the dump truck work environment, the design of the power, transmission, axles, chassis and suspension system are optimized. The vehicle adopts the finite element simulation analysis and optimization, to achieve the best system matching of high power, high reliability and high economic.
Description | Unit | Parameter value |
Overall size | mm | 8710*2500*3267 |
Cargobody size | mm | 5800*2300*1500 |
Wheelbase | mm | 3850+1350 |
Wheel tread (Front/Rear) | mm | 2060/1860 |
Min. ground clearance | mm | 281 |
Kerb mass | kg | 15620 |
Gross vehicle weight | kg | 40000 |
Rated loading capacit | kg | 25000 |
Max. travel speed | km/h | 79 |
Min. turning diameter | m | 17 |
Max. gradeability | % | 39 |
