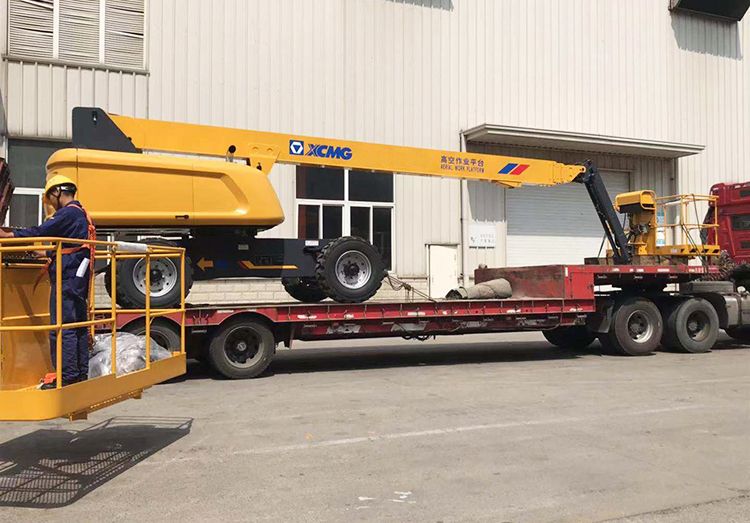

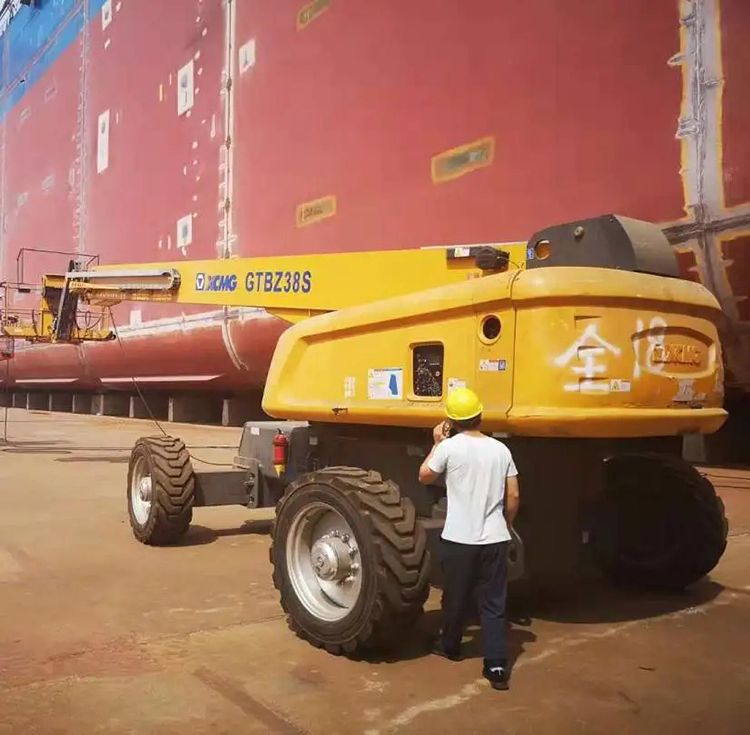

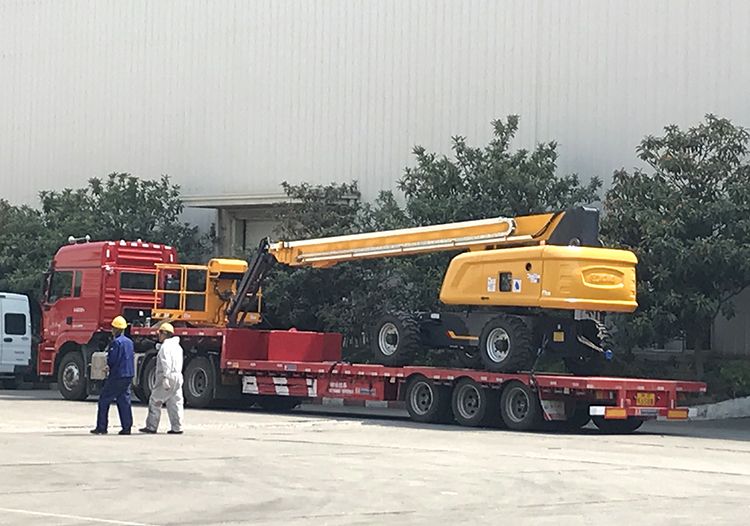

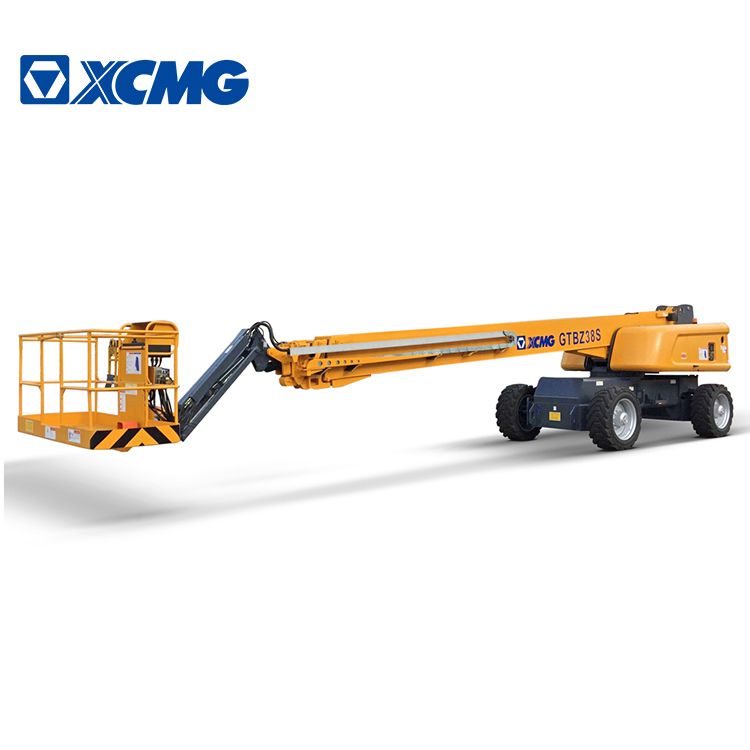

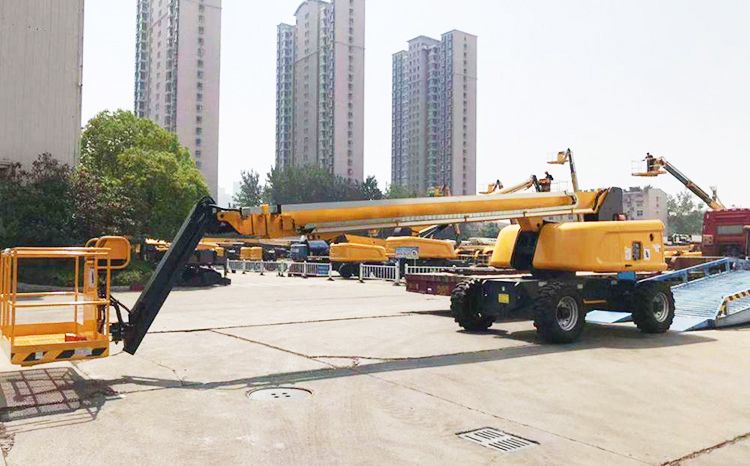

Telescopic Lift aerial work platform GTBZ38S.

Main configuration:

Four-wheel drive, four-wheel steering, axle balance, foam filled tires

Max. travel speed: 5km/h;

Max. grade ability: 40%;

Axle extending and retracting system: Max. span is 3.8m, providing better vehicle stability

Axle balance system: greatly improving the capability to pass through rugged road surface

XCMG CTBZ38S built-in traveling reducer integrating motor and reducer is selected, with fast and slow travel speed, which can meet the requirements for traveling in different environment. The traveling mechanism has self-braking function when traveling on a slope, meanwhile clutch device is equipped for dragging in event of failure.

Performance Highlights:

1. Double closed pump respectively controls left and right motors for chassis traveling, variable pump controls the hydraulic system of whole vehicle except traveling, which is directly driven by the engine to provide power for hydraulic system.

2. The speeds of inside and outside tires can be harmonized and controlled so as to improve smoothness in traveling and reduce tire wear.

3. The engine can be rotated out by removal of locking bolts, which is easy access to the engine and accessories for maintenance and service.
