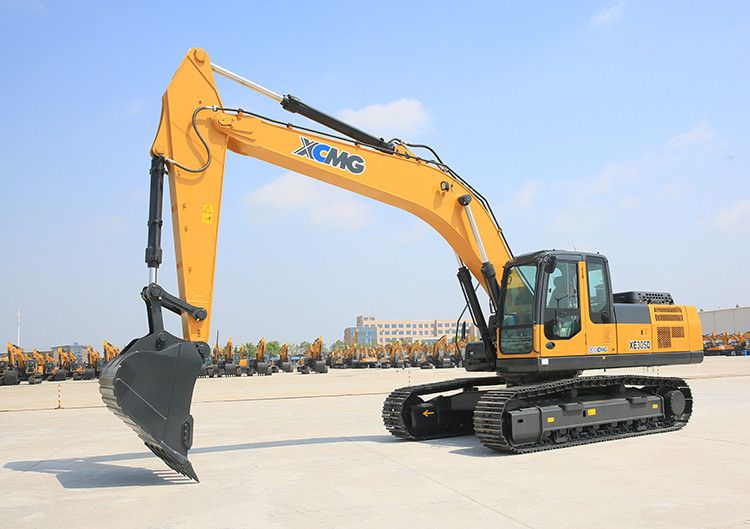

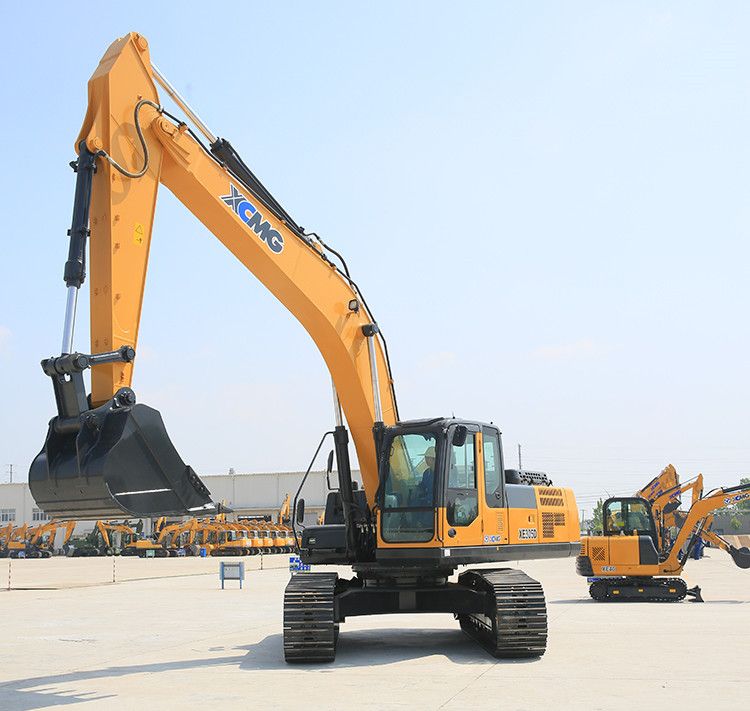

XCMG Excavator Machine 30 Ton Mining Excavator XE305D With Hydraulic Hammer.

Based on the full absorption of internationally advanced technology and relying on independent innovation, XE305D hydraulic excavator has fully solved many key technologies of 30-ton hydraulic excavator. The fully upgraded XE305D hydraulic excavator has more power, lower fuel consumption and stronger working performance. It can be widely used in farmland water conservancy, river dredging, municipal construction and small mine construction, and can also realize different operations such as excavating, breaking and dismantling. The adaptability of working conditions has been further strengthened.

Main technical performance and characteristics:

1. Ecological and economical

* Cummins three stage 169kW high-power engine is more fuel savin.

* New Japan Kawasaki main pump can ensure high efficiency and reduced leakage.

* Efficiency main valve increases overflow pressure and reduces pressure loss.

* Smart matching technology ensures higher operating efficiency and lower fuel consumption.

2. Multiple applications

* Variety of boom, stick and bucket matching to maximize utilization in different conditions.

* Multi-functional intelligent work tool control system can meet different operating requirements such as digging, breaking and dismanting.

* The plateau mode can easily cope with the high-altitude operating environment.

* The new control system can achieve faster data management and more efficient control.

3.Comfortable operating experience

* Air Conditioner and Heator ensure the appropriate temperature.

* Silicone rubber shock absorber is adopted in the cab.

* Air-suspending seat equipped with electric heating function.

* Integrated control panel and large display screen provide multiple information.

* ROPS and FOPS Cab can improve cab safety.

Sales model		Unit	XE305D
Operating weight		Kg	30800
Bucket capacity		m³	1.27-1.6
Engine	Model	/	QSB7
	No. of cylinders	/	6
	Output power	kw/rpm	169/2050
	Maximum torque/speed	N.m/rpm	895/1250
	Displacement	L	6.7
Main performance	Travel speed	km/h	5.2/3.1
	Swing speed	r/min	9.8
	Gradeability	°	35
	Ground pressure	kPa	56.4
	Bucket digging force	kN	198
	Arm digging force	kN	138
	Maximum traction	kN	252
Hydraulic system	Rated flow of main pump	L/min	2×252
	Main safety valve pressure	MPa	34.3/37
	Travel system pressure	MPa	34.3
	Rotary system pressure	MPa	30
	Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	520
	Hydraulic tank capacity	L	270
	Engine oil capacity	L	20
Appearance size	A Overall length	mm	10645
	B Overall width	mm	3190
	C Overall height	mm	3410
	D Width of platform	mm	3050
	E Track length	mm	4944
	F Overall width of chassis	mm	3190
	G Track width	mm	600
	H Length to center of rollers	mm	4028
	I Track gauge	mm	2590
	J Counterweight clearance	mm	1198
	K Min. ground clearance	mm	538
	L Min. tail swing radius	mm	3200
	M Track height	mm	1084
Working scope	A Max. digging height	mm	10146
	B Max. dumping height	mm	7180
	C Max. digging depth	mm	7200
	D Maximum depth cut for 2240mm(8 ft) level bottom	mm	7000
	E Max. vertical wall digging depth	mm	5190
	F Max. digging radius	mm	10665
	G Min. swing radius	mm	3076
Standard configuration	Length of boom	mm	6200
	Length of arm	mm	3110
	Bucket capacity	m³	1.4
Optional configuration	Length of boom	m³	/
	Length of arm	m³	2600
	Bucket capacity	m³	1.3、1.4 Rock bucket 1.5 Strengthened bucket 1.6 Earth Working bucket
