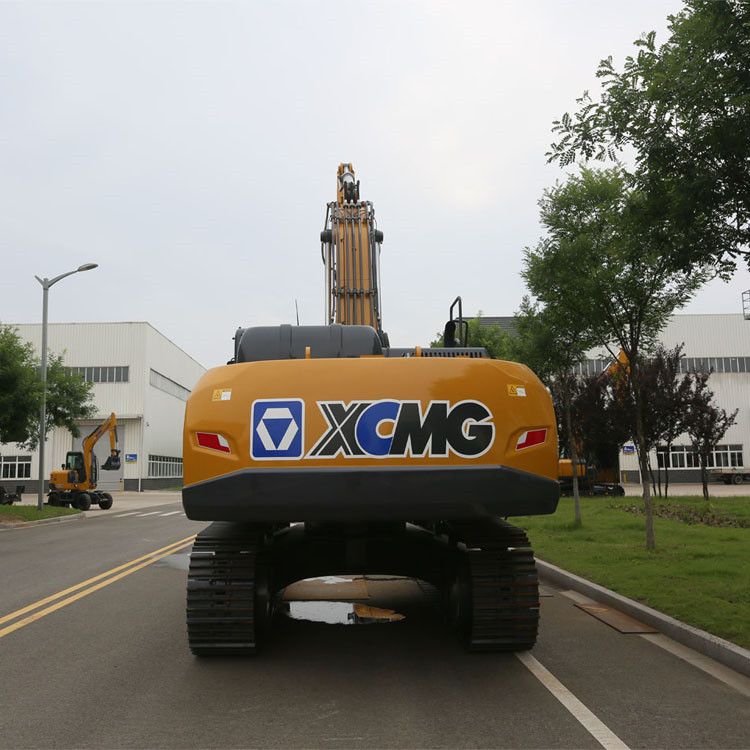

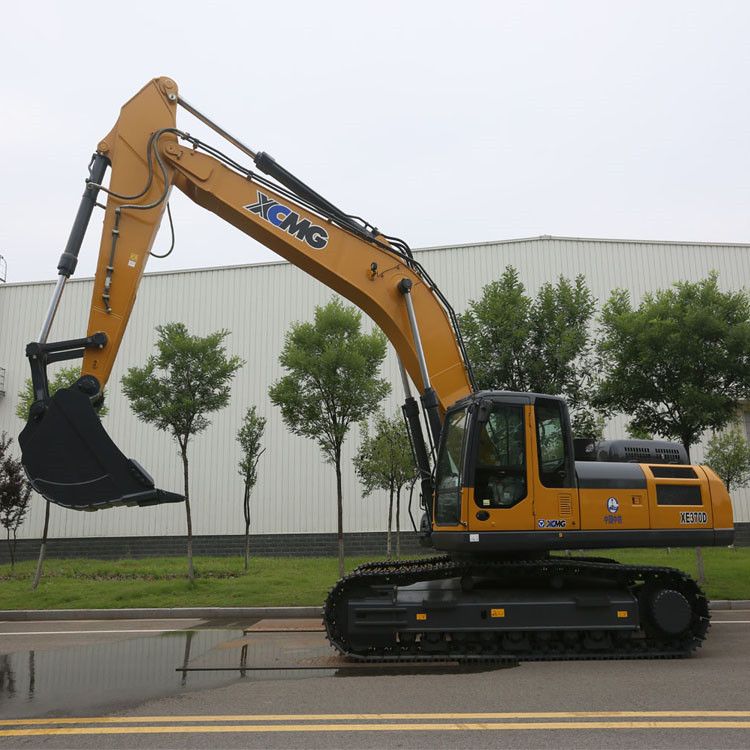

XCMG 38 Ton Large
Crawler Excavator XE380DK Hydraulic Excavators 2.1M3 Bucket For Mining.
1,The
overall layout and the axle load distribution are more reasonable to achieve
better traveling stability and the maximum traveling speed is up to 40km/h to
realize faster site transfer speed.
2,The
domestic leading hydraulic system distribution technology features high
energy-saving and efficiency.
3,The
highest breakout force on the loading end is leading the industry by 15%~20%
compared with like models.
4,The
advanced structure and hinge points on the digging end and the industry’s
largest rotating angle of the bucket ensure strong soil holding capacity.
|
Sales model |
Unit |
XE380DK |
|
|
Operating weight |
Kg |
38200 |
|
|
Bucket capacity |
m³ |
1.9-2.3 |
|
|
Engine |
Model |
/ |
QSL9 |
|
No. of cylinders |
/ |
6 |
|
|
Output power |
kw/rpm |
214/2100 |
|
|
Maximum
torque/speed |
N.m/rpm |
1344/1300 |
|
|
Displacement |
L |
8.9 |
|
|
Main performance |
Travel speed |
km/h |
5.6/3.3 |
|
Swing speed |
r/min |
9.6 |
|
|
Gradeability |
° |
35 |
|
|
Ground pressure |
kPa |
69 |
|
|
Bucket digging
force |
kN |
292 |
|
|
Arm digging
force |
kN |
209 |
|
|
Maximum traction |
kN |
285 |
|
|
Hydraulic system |
Rated flow of
main pump |
L/min |
2×330 |
|
Main safety
valve pressure |
MPa |
34.3/37.3 |
|
|
Travel system
pressure |
MPa |
34.3 |
|
|
Rotary system
pressure |
MPa |
26.5 |
|
|
Pilot system
pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank
capacity |
L |
660 |
|
Hydraulic tank
capacity |
L |
350 |
|
|
Engine oil
capacity |
L |
30 |
|
|
Appearance size |
A Overall length |
mm |
11436 |
|
B Overall width |
mm |
3225 |
|
|
C Overall height |
mm |
3695 |
|
|
D Width of
platform |
mm |
3220 |
|
|
E Track length |
mm |
5035 |
|
|
F Overall width
of chassis |
mm |
3190 |
|
|
G Track width |
mm |
600 |
|
|
H Length to
center of rollers |
mm |
4040 |
|
|
I Track gauge |
mm |
2590 |
|
|
J Counterweight
clearance |
mm |
1197 |
|
|
K Min. ground
clearance |
mm |
500 |
|
|
L Min. tail
swing radius |
mm |
3700 |
|
|
M Track height |
mm |
1105 |
|
|
Working scope |
A Max. digging
height |
mm |
10508 |
|
B Max. dumping
height |
mm |
7300 |
|
|
C Max. digging
depth |
mm |
7147 |
|
|
D Maximum depth
cut for 2240mm(8 ft) level bottom |
mm |
6980 |
|
|
E Max. vertical
wall digging depth |
mm |
6542 |
|
|
F Max. digging
radius |
mm |
10793 |
|
|
G Min. swing
radius |
mm |
4560 |
|
|
Standard
configuration |
Length of boom |
mm |
6400 |
|
Length of arm |
mm |
2900 |
|
|
Bucket capacity |
m³ |
1.9 |
|
|
Optional
configuration |
Length of boom |
m³ |
/ |
|
Length of arm |
m³ |
2670 |
|
|
Bucket capacity |
m³ |
2.1 Strengthened
bucket 2.3 Earth
Working bucket |
|
