XCMG Brand New Wheel Excavator 21 Ton Construction Equipments XE210WA Price
Payment
Shipping
Support Sea freight · Land freight · Air freight
Recommendation
Specs & Compare
Rated Speed: 9.5km/h
Max Digging Radius: 9613mm
Machine Weight: 21140kg
Maximum Digging Depth: 5755mm
Maximum Digging Height: 10528Kg
Bucket Capacity: 0.86m3
Operating Weight: 21140kg
Model Number: XE210WA
Brand Name: XCMG
Place of Origin: Jiangsu, China
Add models to compare
Description

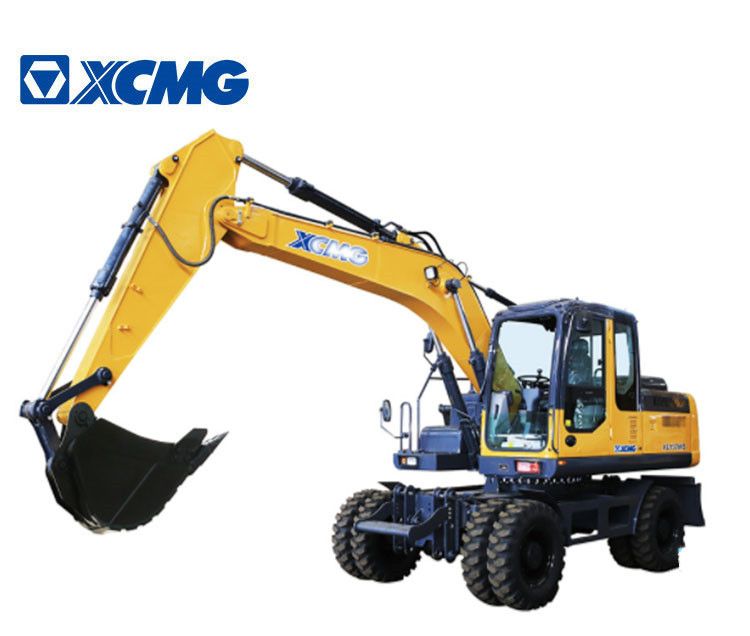

XCMG Brand New Wheel Excavator 21 Ton Construction Equipments XE210WA.



This machine has used a new generation of independent researched and developed controllers as well as a compact parallel pump and focused on the matching between the engine power and the high-speed running to make full use of the engine power, improve the working efficiency and effectively reduce the fuel consumption. The reliability during heavy-load operations can be satisfied by virtue of its lightweight chassis with high rigidity and strengthened key parts.





As a model featuring excellent flexibility, high fuel efficiency and considerate operation reliability and based on the power system in accordance with the North America and Euro-III and China Stage-II emission standards, this machine can be provided with optional one-section booms, two-section booms, lengthened booms and other working mechanisms as well as other multi-functional implements, able to be widely used in highway bridges, housing construction, road engineering, construction of water conservancy works, port construction, general construction projects and other small and medium earthwork construction.







Model

Unit

XE210WA

Operating weight

Kg

20200

Bucket capacity

0.86

Engine

Model

/

6B5.9

Output power

kW/r/min

133/2000

Maximum torque/speed

N.m

708/1500

Displacement

L

5.9

Fuel tank

L

305

Main performance

Rated flow

L/min

2×220

Working Pressure

MPa

31.4/34.3

Hydraulic tank

L

202

Swing speed

r/min

13

Bucket digging force

kN

115

Arm digging force

kN

91

Min. turning radius

mm

6500

Travel speed

km/h

9.5/31

Gradeability

%

70%

Hydraulic system

Main pump/Pilot pump

/

2×Piston pump

Appearance size

A Overall length

mm

9597

B Overall width

mm

2552

C Overall height

mm

3590

D Counterweight clearance

mm

1250

E Min. ground clearance

mm

340

F tail turning radius

mm

2820

G Wheel base

mm

2850

H Tread width

mm

1890

I Width of chassis

mm

2495

J Distance from front bridge to rotary center

mm

1550

K Hood height

mm

2542

L Max. digging depth of dozer

mm

145

Dozer(width/height)

mm

2495/566

Working scope

A Max. diggingradius

mm

9840

B Max. digging distance

mm

9638

C Max. digging height

mm

9000

D Max. dumping height

mm

7000

E Max. digging depth

mm

6460

F Maximum depth cut for 2240mm(8 ft) level bottom

mm

6285

G Max. vertical wall digging depth

mm

5810

H Max. lifting height of dozer

mm

497

Standard





Single boom
