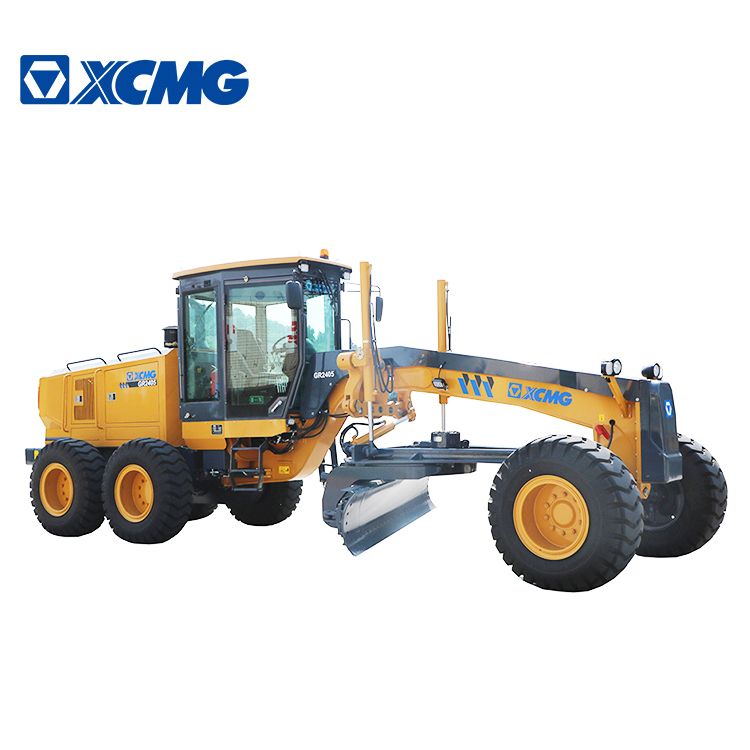

XCMG Brands Road Construction Equipment Machine 240hp New Chinese Motor Grader GR2405 RC Price.



The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.



1. Utilizing load sensitive hydraulic system, small control force, good control feeling, realizing micro control.



2. Engine variable power control technology, more energy efficient.



3. Intelligent fan control technology enables fan speed changing with the real-time detected system temperature, low energy consumption and low noise.



4. Wet type brake axle, long lifetime, higher reliability.



5. Elevated cabin allows bigger operation space.



6. Optimal arrangement of the air conditioning flue, integration with cab interior design, better air conditioning effect.



7. Advance antivibration and noise reduction technology, low noise of the whole machine.



8. The working device is more reliable with the integral angle position device, high strength rotary support and overload protection worm gearbox.

Item

Unit

GR2405

Basic parameters

Engine model



QSB6.7

Rated power/speed

kW/rpm

178/2200

Overall dimension(standard)

mm

9300 x 2625 x 3470

Total weight(standard)

kg

17000

Tire specification



17.5-25

Ground clearance

mm

586

Tread

mm

2156

Space of front and rear axles

mm

6447

Space of middle and rear wheels

mm

1538

Performance parameters

Forward velocity

km/h

5811182540

Reverse speed

km/h

51125

Tractive effort f=0.75

kN

≥88

Maximum gradeadbility

%

≥25

Inflation pressure of tires

kPa

260

Working system pressure

MPa

22

Transmission pressure

MPa

1.85-2.2

Working parameters

Maximum steering angle of front wheels

°

±48

Maximum inclination angle of front wheels

°

±17

Maximum swing angle of front axle

°

±15

Maximum swing angle of balance box

°

front 15, rear 15

Maximum steering angle of frame

°

±25

Maximum turning radius

m

7.3

Blade

Maximum lifting height

mm

480

Maximum shoveling depth

mm

715

Maximum lateral inclination angle

°

90

Cutting angle

°

29-69

Oil filling amount

Slewing angle

°

360

Length x chord height

mm

3965 x 610

Coolant

L

50

Fuel tank

L

270

Engine

L

24

Transmission

L

38

Balance box

L

60

Drive axle

L

36

Hydraulic oil

L

190
