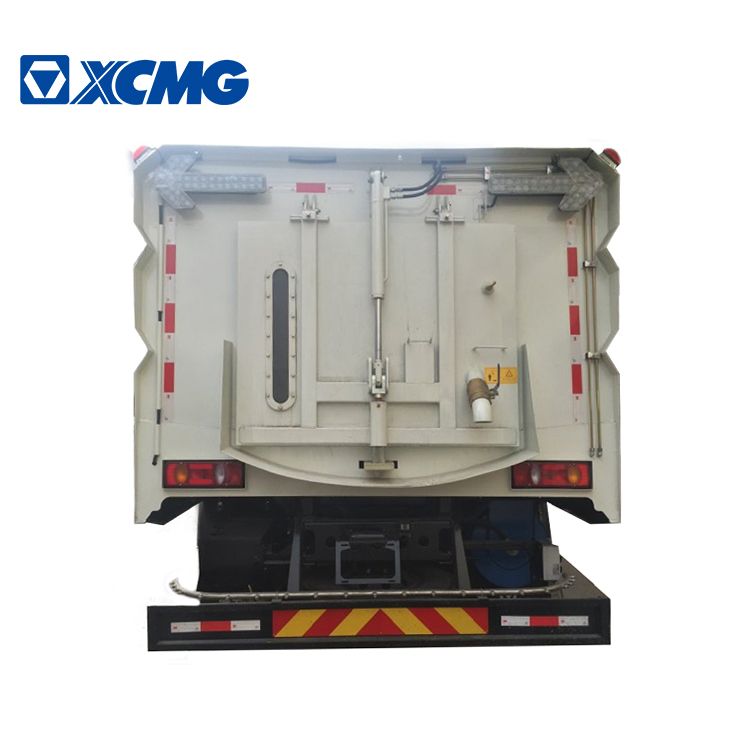

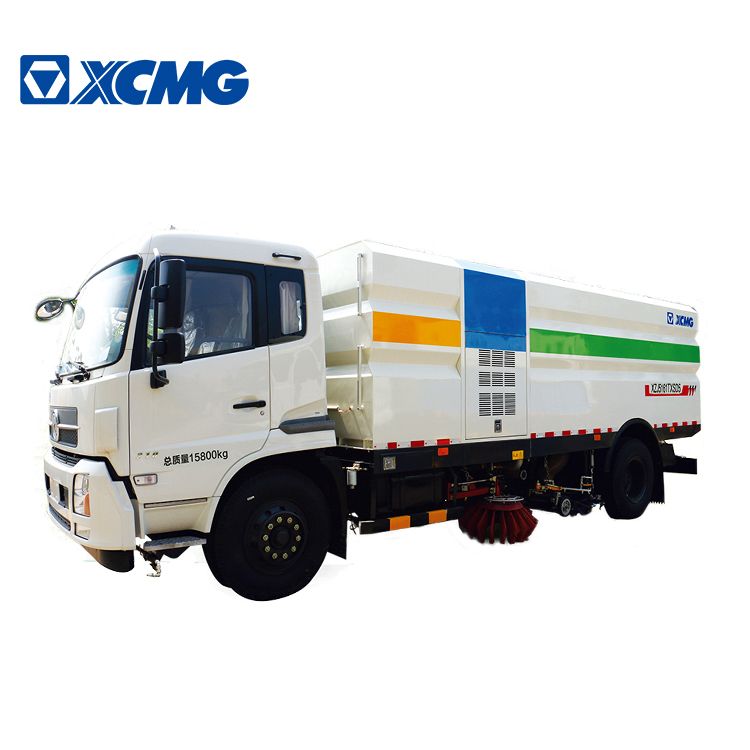

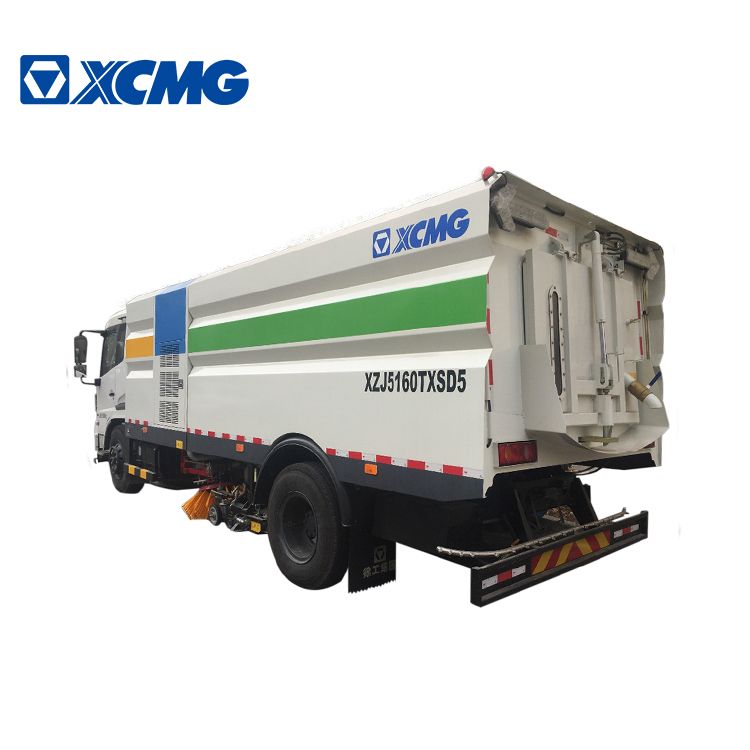

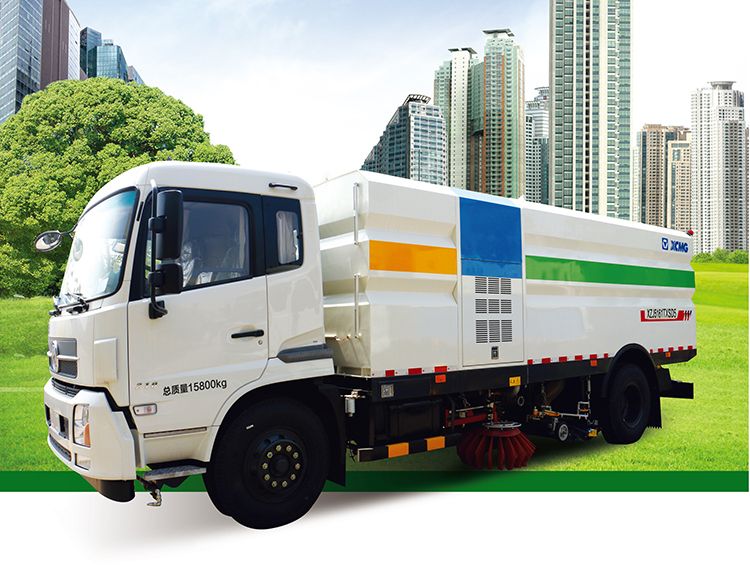

XCMG 8 Ton 9000L Sprinkler-Sweeping Truck XZJ5160TXSD5 Sanitary Engineering Road Sweeper Truck.
The sprinkler-sweeper truck is our self-developed and multi-functional sanitation product, with road cleaning, low pressure rinsing, water spraying functions as one. It combines traditional sweepers and cleaning vehicles function in principle, while the use of spray devices can make dust fall. It is widely used in urban roads, highways, squares, airports, terminals, tunnels, bridges and other occasions, cleaning, sweeping, spraying dust and other cleaning operations.
1. 9-26No.6.3C high-pressure centrifugal fan is used, with high efficiency and high blast capacity (maximum blast capacity: 12,000m³/h).
2. The mode of vertical brushing (with the unified type as the cleaning sweeper truck in the Plant) is adopted for the sweeping plate. Compared with the sweeping plate branded Zoomlion and FLM, this plate has more functions. It is capable of both road sweeping and curb cleaning. At the same time, it also continues the structure of the sweeping plate in the Plant, and makes great improvement to the universality.
3. This truck is provided with diversified functions including pavement cleaning, pavement sweeping, curb cleaning, curb vertical face brushing, spraying and aspirating. Multiple operating modes can be realized, such as "full washing & sweeping", "left washing & sweeping", "right washing & sweeping", "full sweeping", "left sweeping", "right sweeping" and "pure absorption". When it is necessary for spraying and aspirating, the spraying device can be started for spraying and aspirating.
4. An auxiliary engine is used to exclusively drive the fan and the hydraulic system, making sure continuous work in the driving process and the continuity in the sweeping process.
5. The structure of "two sweepers in the middle + long suction nozzle in the middle + V-shaped spray lance" is adopted, which improves the sweeping efficiency and makes it convenient for adjustment and maintenance of the cleaning device and the suction nozzle. It is of good trafficability while being transferred to another site.
6. The sweeping plate is provided with the function of automatic avoidance for protection and automatic resetting in case of an obstacle. While encountering an obstacle, it will retract and reset automatically after crossing the obstacle.
Description |
Specification |
Automotive chassis Model,categoryand manufacturer of chassis |
DFL1160BX1V (Standard China V) |
Automotive chassis Model and manufacturer of engine |
4HK1-TC51, 4KH1-TCG51 |
Automotive chassis Rated power of engine |
141kW/2600r/min |
Automotive chassis Front wheel |
7.00-16 14PR |
Auxiliary engine Model and manufacturer |
EQ6BT5.9 or QSB5.9-C160-30 (Standard China III) |
Auxiliary engine Power |
118kw/2500r/min; 120kw/2200r/min |
Auxiliary engine Clutch |
Single plate, dry type and diaphragm spring |
Fan Type |
Special high-pressure centrifugal fan |
Fan Mode of transmission |
Narrow V belt drive |
Hydraulic system Type |
Open type, EHC and centralized control |
Hydraulic system Overflow pressure |
14 MPa |
Hydraulic system Hydraulic oil capacity |
60 L |
Electrical system Control mode |
PLC control + manual control, voice alarm, electromechanical liquid interlocking, etc. |
Electrical system Chassis system voltage |
24 V |
Electrical system Working device system voltage |
12 V |
Electrical system Model of storage battery |
Chassis: 12V-70A.H (2 pieces connected in parallel) |
High-pressure cleaning system Type |
Plunger type |
High-pressure cleaning system Model |
Italian Pratissoli KEB36R |
High-pressure cleaning system Rated pressure |
10 MPa |
High-pressure cleaning system working pressure |
9 MPa |
High-pressure cleaning system Rated flow |
80 L/min |
High-pressure cleaning system Rated speed |
1150 L/min |
High-pressure cleaning system Type of water valve |
High-pressure stainless-steel ball valve, 10 MPa |
High-pressure cleaning system Control mode |
Oil cylinder drive, electrical control |
High-pressure cleaning system Type of nozzle of water spray rod |
High-pressure washing type |
Sweeping system Speed of sweeping plate |
Φ850mm |
