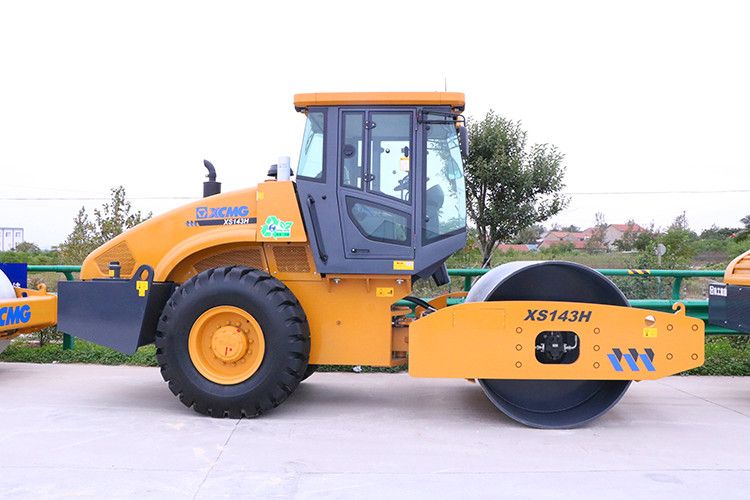

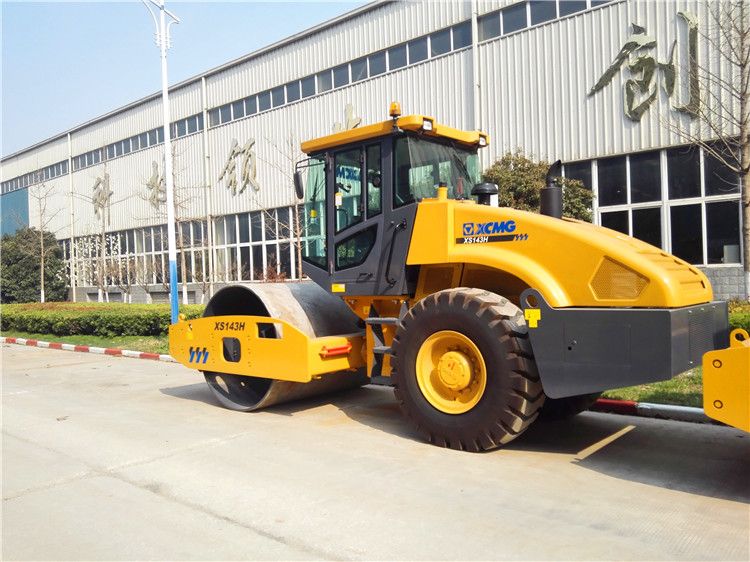

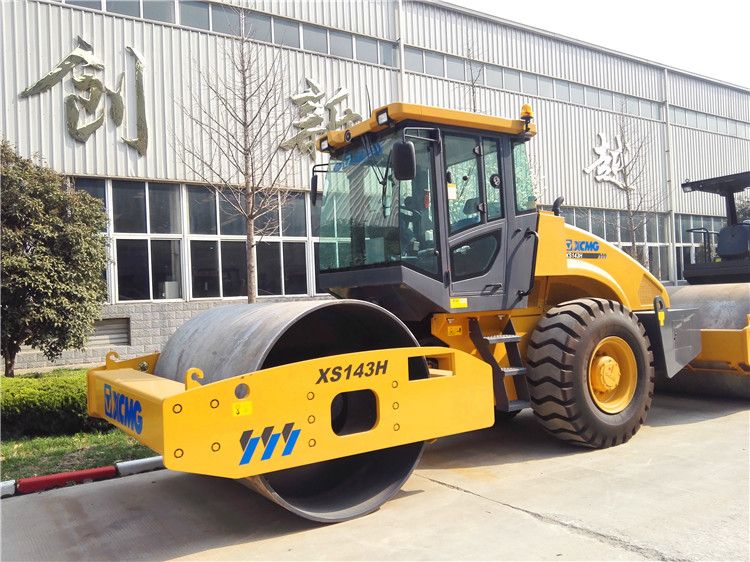

XCMG Official 14 ton hydraulic compactor XS143H single drum vibratory road rollers compactor.

XS143H has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc. and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects, with the maximum working depth up to 1.0m and above. Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.

Performance Characteristics:

* Use the H-series, water-cooling, four-cylinder four-stroke, direct injection turbo charged and air-air intercooling low-speed diesel engine. This kind of diesel engine has a large power reserve and has the function of energy saving and noise reduction.

* Rear drum hydraulic drive, adopt closed hydraulic drive system composed of variable displacement piston pump and piston motor to ensure better drive performance and gradeability.

* One gear infinitely variable speeds to ensure optimized working speed under diferent working conditions.

* Dual frequency and dual amplitude, meeting the requirements of different working conditions.

* Optimized vibration drum structure and vibration parameters to guarantee smoother compaction surface and higher compaction efficiency.
