XCMG official manufacturer sprinkler road sweeper garbage truck road cleaning machine XZJ5180TXSD5
Payment
Shipping
Support Sea freight · Land freight · Air freight
Recommendation
Specs & Compare
Certification: CE/ISO9001
Dimension(L*W*H): 8680x2490x3100mm
Weight: 12375kg
Model Number: XZJ5180TXSD5
Brand Name: XCMG
Place of Origin: Jiangsu,China
Water tank capacity: 9m^3
Sweep width: 3.5m
Working speed: 3-15km/h
Add models to compare
Description

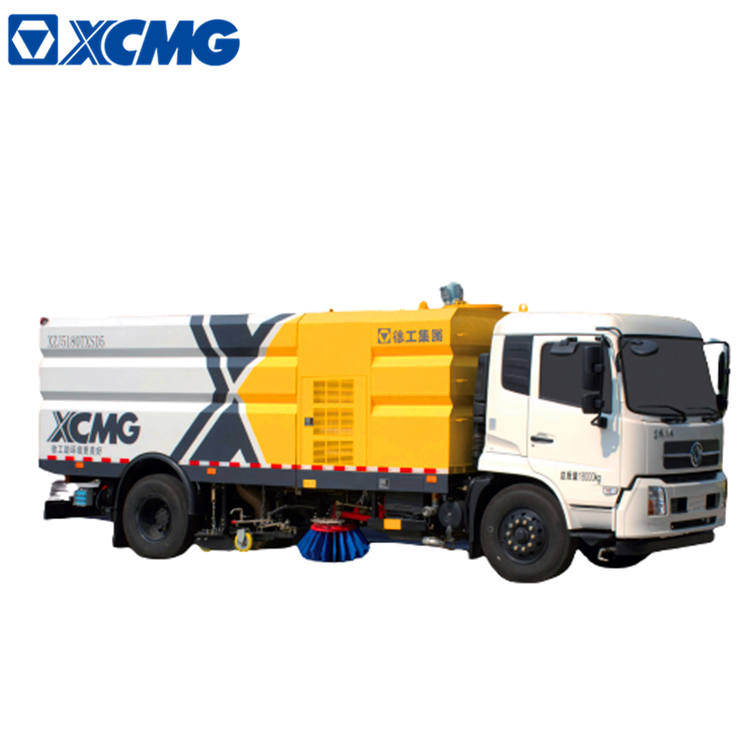

XCMG official manufacturer sprinkler road sweeper garbage truck road cleaning machine XZJ5180TXSD5.

*Patented Fan, Powerful Suction

The special high efficiency fan with exclusive patent is set and the comprehensive performance is improved by 35%. The energy consumption for operation is reduced by 28% at maximum.

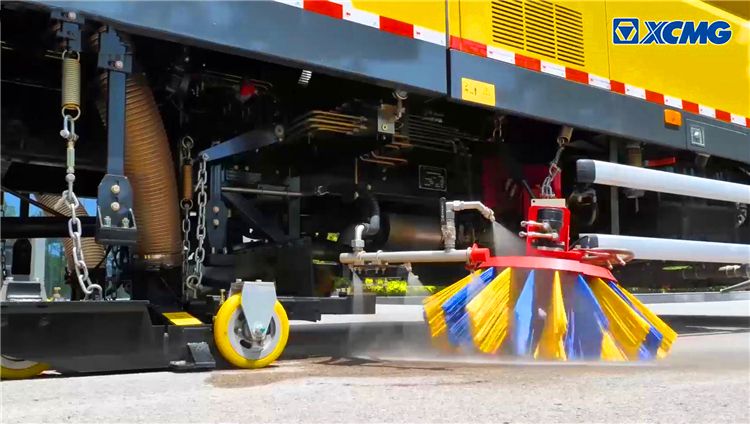

*Quick-change Sweeper, Longer Service Life

Depending on the national level R & D center of XCMG, detailed structural analysis is performed for sweeper material and secret formula makes the service life improved by above 60% (compared with competitive product). Quick-change interface is designed to realize convenient quick-change of sweeper.



*Learn Effectively, Understand Users

The product has operation memory function and control userJ s operation habits, which simplifies user's operation steps.



*Cruise Control, Comfortable Driving

The chassis has cruise control function; operation at a constant speed can effectively guarantee the cleaning effect, reduce electric power consumption, and largely improve the work efficiency and safety performance.



*Road Cleaning, One Enough

Diversified functions can meet different road cleaning requirements: sprinkling, rinsing, sweeping, cleaning, dustfall, etc. Meanwhile, high pressure waterjet is provided for cleaning of road sanitary dead angle and vehicle.

Parameters

Unit

XZJ5180TXSD5

Max. Total Weight

kg

18000

Rated Payload

kg

5625

Max. Speed

km/h

98

Overall Dimension

mm

8680x2490x3100

Sweeping Width

m

3.5

Sweeping Speed

km/h

3-15

Speed of Road Cleaning

km/h

3-20

Max. Width of Sprinkling Sweeping

mm

4.1

Speed of Sprinkling Sweeping

km/h

3-10

Max. Sweeping Ability

m7h

70000

Dustbin Volume

m3

7

Solution Tank Volume

m3

9

Sweeping Efficiency

%

97

Lifting Angle

o

48

Low-pressure Flushing Width

m

24
