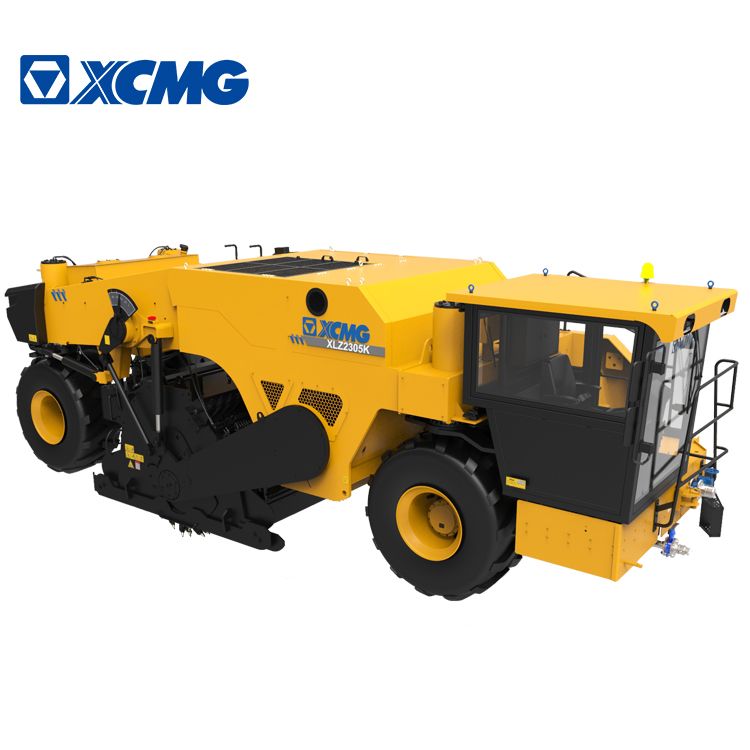

Road Maintenance Equipment Road Reclaimer XLZ2305K.
XLZ2305K road reclaimer is a
set of multi-functional road maintenance equipment. It is mainly used for
upgrading and reconstruction of old asphalt pavement. It is mainly used for
mixing fillers, cement, limes and other objects with natural soil, so as to
improve mechanical and physical properties of soil. It can be also used for
milling damaged asphalt or asphalt concrete pavement with the thickness of
250mm and below.
* The milling width of the
road reclaimer is 2300mm; generally, the maximum milling depth is 430mm.
* Milling rotor will be
driven by two groups of (13) belts of automatic tightening devices,
quick-change tool apron rotor getting Xugong patent technology guarantee cutter
can be installed and disassembled conveniently, so a worn cutter can be quickly
changed, thereby greatly lowering the cutter changing labor intensity,
extending the effective working time of the machine and improving working
efficiency.
* Running system has 4 speed
governing gears. It has four wheels for running and steering; their
low-pressure wide base big pattern tyres can run stably, with big adhesive
force.
* Sprinkling system has water
spraying function; and it can manually and intelligently control the medium spraying
volume.
* Automatic depth control:
built-in sensor of hydraulic cylinder is used for detection, and milling depth
can be displayed on display.
* The intelligent control
system can achieve on-line display, fault diagnosis, fault alarm, maintenance
hints and other advanced functions in working mode and walking mode; at the
same time, various data can be directly read through display.
