XCMG Official 1 Ton Mini Skid Steer Track Loader XC740K Price
Payment
Shipping
Support Sea freight · Land freight · Air freight
Recommendation
Specs & Compare
Rated Load: 750kg
Dimension(Long*Breadth*High): 3270*1807*1970mm
Type: Skid Steer Loader
Place of Origin: Xuzhou, Jiangsu, China
Model Number: XC740K
Brand Name: XCMG
Certification: CE/ISO90001
Add models to compare
Description

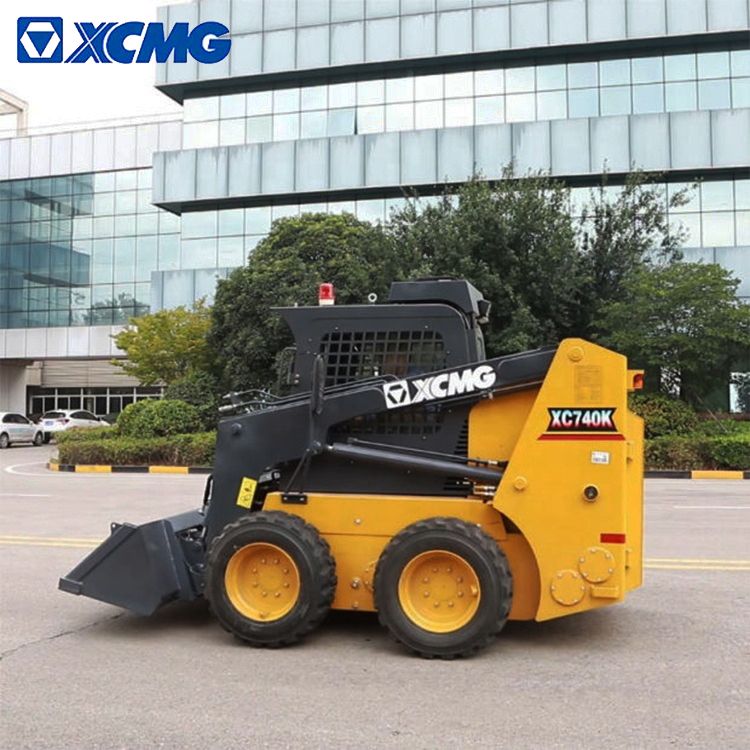

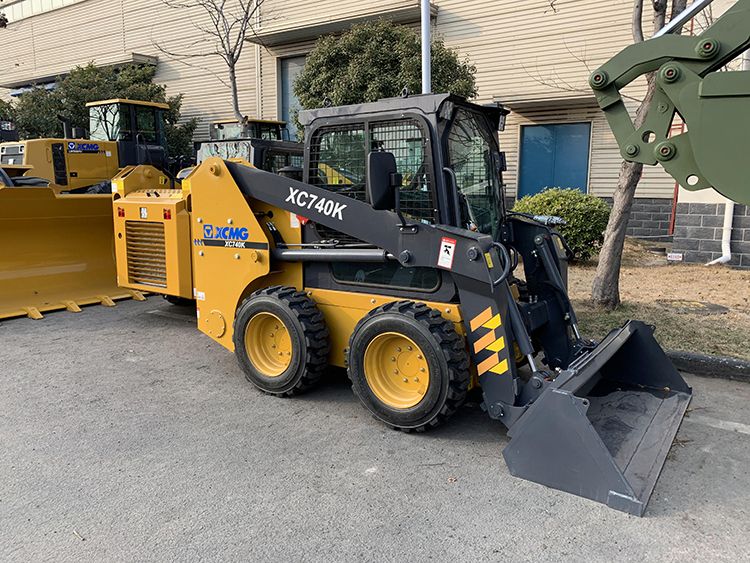

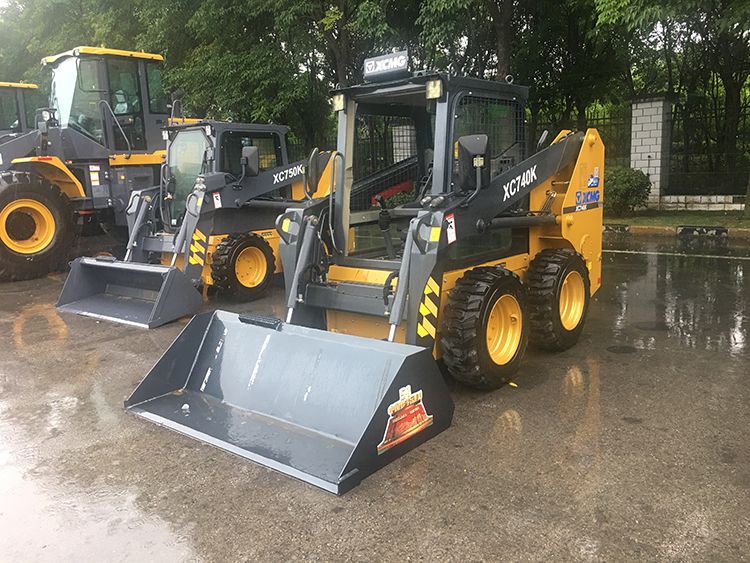

XCMG Official 1 Ton Mini Skid Steer Track Loader XC740K.



1.Strong and Efficient Power Transmission System

The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency. The static hydraulic drive technology adopted features stable drive and high efficiency and reliability. The fully-sealed sprocket case and high strength chains feature automatic lubrication and maintenance-free.



2.Flexible Operations

Compact structure, low turning radius, and strong site adaptability. The quick-change coupling equipped can change attachments rapidly in the construction site. The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working efficiency.



3.Incomparable Multi-functionality

The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.



4.Safe and Comfortable Operating Environment

The ROPS&FOPS cab and the seat belt, bumper, fire extinguisher, and safety hammer equipped guarantee the personal safety of the operator. The cab features large space, adjustable seats, and comfortable operations.The standard double-accelerator control model can use the pedal accelerator or work at preset constant power to save the operation labor.



5.Convenient Maintenance

The cab can be tilted backward for a large angle to make the repair and maintenance portions more accessible. The rear hood and upper hood can be opened conveniently and all units and pipelines are easily accessible to save the repair and maintenance labor and time.

Description

Unit

Parameter value

Rated load

kg

750

Tipping load

kg

1500

Operating weight

kg

3140

Maximum breakout force

kN

18

Engine

Manufacturer

Xinchai

Model

4D27G31

Rated power

Hp/kw

49.3/36.8

Rated speed

rpm

2500

Cooling mode

Water-cooling

Performance parameter

Operation mode

Mechanical & multi-function electronic control

Tire standard

10-16.5

Maximum speed

Km/h

14

Hydraulic system

Hydraulic flow rate

L/min

62.5

Optional large flow

--

Hydraulic pressure

bar

200

Maximum operating height

mm

3878

Bucket hinge pin height

mm

3057

Cabin top height

mm

1960

Maximum horizontal height of bucket bottom

mm

2851

Length without bucket

mm

2533

Length with bucket

mm

3310

Toppling angle

°

40

Maximum unloading height

mm

2375

Ground-bucket angle

°

30

Rotating angle of bucket at highest point

°

83

Unloading distance

mm

575

Wheel base

mm

1027

Departure angle

°

25

Ground clearance

mm

183

Front radius of turning circle (without bucket )

mm

1183

Front radius of turning circle (with bucket)

mm

2066

Rear radius of turning circle

mm

1564

Length of tail

mm

1005

Wheel track

mm

1380

Tire edge width

mm

1640

Bucket edge width

mm

1800

Bucket capacity (stacking height)

0.45

Bucket capacity (tiling)

0.35

Diesel tank capacity

L

80

Capacity of hydraulic oil tank

L

60
