Specs & Compare

Weight: 18700~25000kg

Dimension(L*W*H): 6545*2880*4000mm

Model Number: RP753

Brand Name: XCMG

Place of Origin: Xuzhou, Jiangsu, China

Paving Width: 2.5-7.5m

Max. Paving Thickness: 350mm

Power(W): 140KW

Production Capacity: 600t/h

Certification: CE/ISO9001

Add models to compare

Description

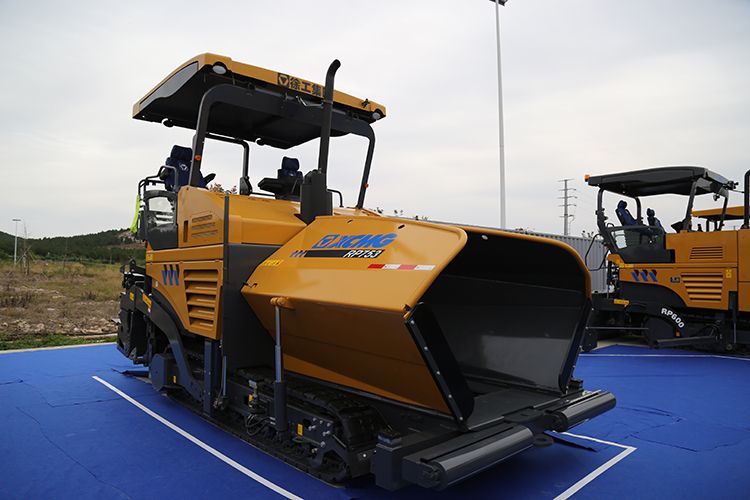

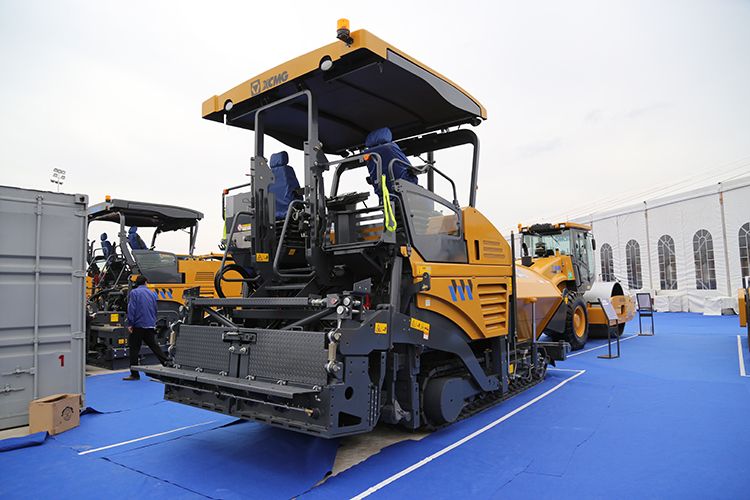

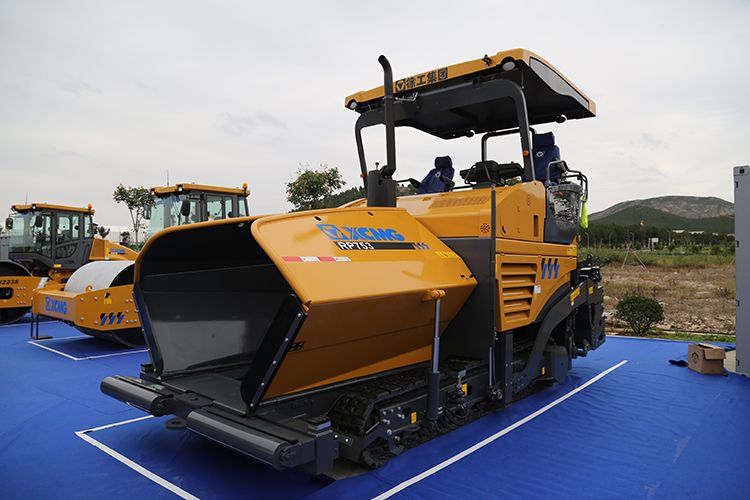

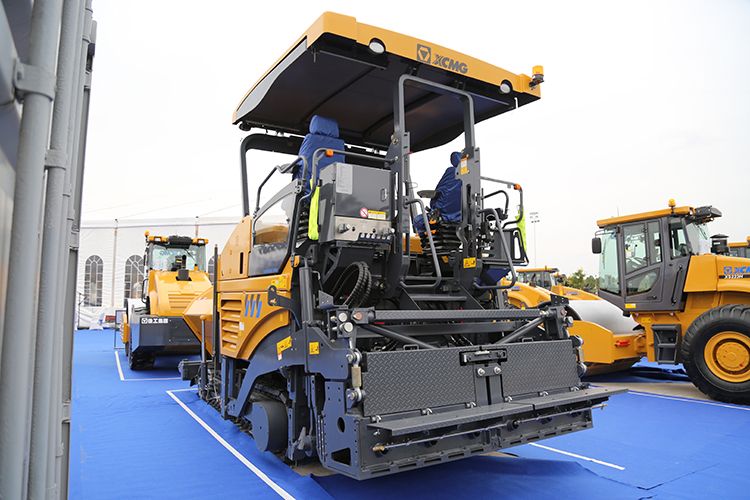

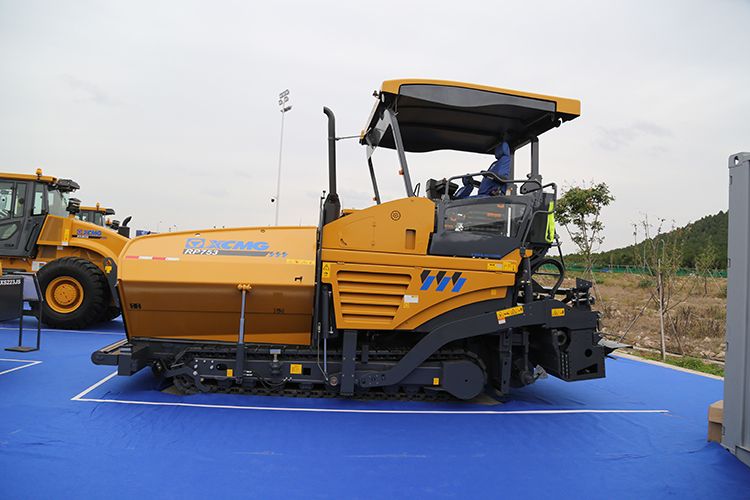

XCMG RP753 7.5m width road crawler paver laying machine.

XCMG paver RP753 drive left and right independent drive, microcomputer control, constant speed automatic control technology for paving speed, SC7H190 water-cooled supercharged engine of Shangchai (optional Deutz engine BF6M2012).

Using a three in-one powerful composite radiator, left and right transmission, and material distribution four sets of independent hydraulic system transmissions, high wear-resistant alloy material for the material-discharging blades, imported wear-resistant steel plate for the feeding floor and the screed bottom plate, and the left and right material-dispensing devices can be easily moved up and down to accommodate different paving thicknesses. A horizontal automatic leveling system ensures the flatness of the paving. Centralized lubrication system.

Item	RP753
Dimension	6545×2880×4000mm
Weight	18.7-25t
Driving speed	3km/h
Basic pave width	2.5-7.5m
Maximum pave width	7.5m
Maximum layer thickness	350mm
Maximum paving speed	20m/min
Hopper capacity	14t
Maximum laydown rate	600t/h
Rate power	140/2000 kw/rpm
