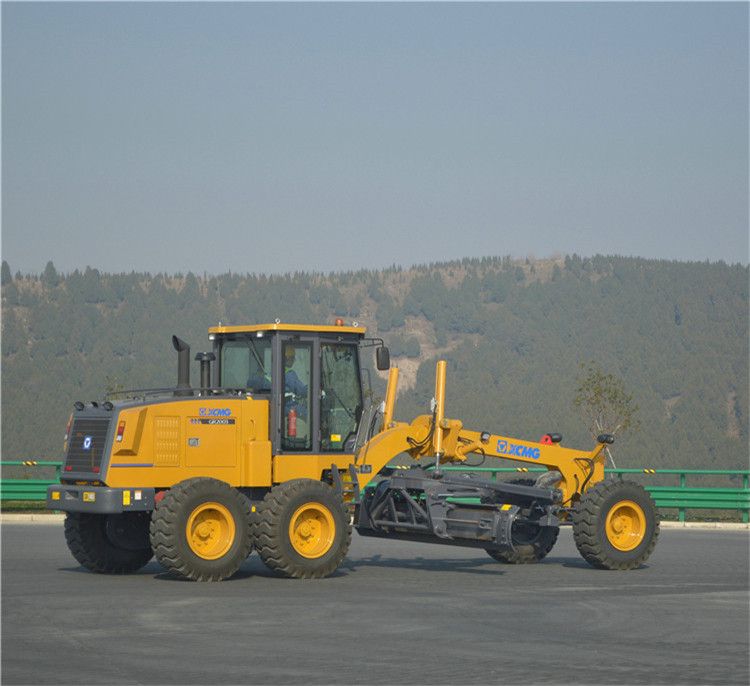

XCMG GR2003 China Brand New Road Motor Grader Machine.



The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.


Advantages and Highlights:



1.Energy-saving and noise-reducing: adopt low-speed engine transmission line, low specific fuel consumption of rated point, energy saving and environmental protection; low-speed ratio configuration of transmission system, average fuel consumption reduced by about 8%.

2.Strong Power: Adopting Sichai High-efficiency State III Variable Power Engine.

3.With load rotation: to improve the hydraulic system pressure, blade rotary force greatly improved, high-frequency quenching gear ring, wear resistance and life expectancy, to achieve load rotation.

4.Efficient operation: The displacement of the hydraulic pump and the hydraulic motor is increased.

Item

GR2003

Basic parameters

Engine model

SC9DK200.1G3

Rated power/speed

147kW/2200rpm

Overall dimension (standard)

8900x2625x3420mm

Total weight (standard)

16000 kg

Tire specification

17.5-25

Ground clearance (front axle)

430mm

Tread

2156mm

Space of front and rear axles

6219 mm

Space of middle and rear wheels

1538 mm

Performance parameters

Forward velocity

5/8/11/19/23/38km/h

Reverse speed

5/11/23km/h

Tractive effort f=0.75

82 kN

Maximum gradeability

25%

Tire inflation pressure

260kPa

Working system pressure

20MPa

Transmission pressure

1.3-1.8Mpa

Working parameters

Maximum steering angle of front wheel

±48°

Maximum slant angle of front wheel

±17°

Maximum oscillating angle of front axle

±15°

Maximum oscillating angle of equilibrium box

±15°

Maximum steering angle of frame

±27°

Minimum turning radius

7.3m

Scrape knife

Maximum lift height

400mm

Maximum cutting depth

500mm

Maximum tilt angle

90°

Cutting angle

28°-70°

Angle of revolution

360°

Length & chord height

4270x610mm

Oil filling amount

Coolant

50L

Fuel tank

280L

Engine

24L

Transmission

38L

Balancing box

46L

Drive axle

28L
