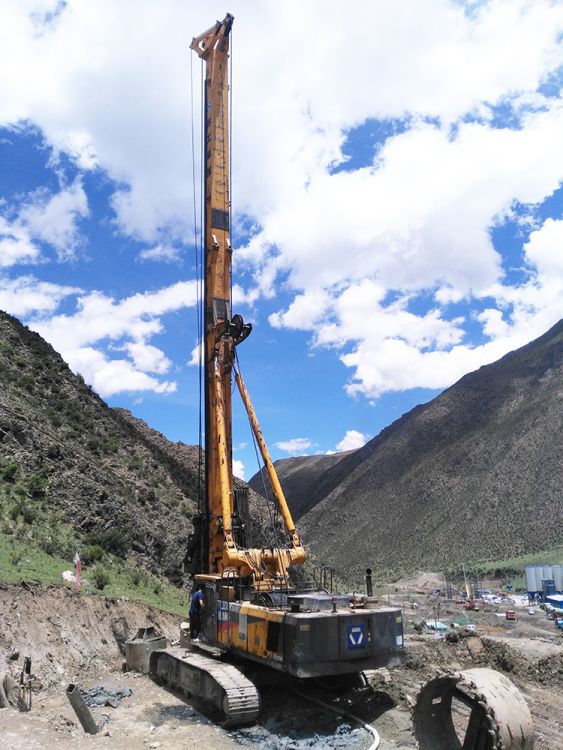

XCMG new 105m Rotary Drilling Rig XRS1050 Piling Rigs.
XR Series Rotary Drilling Rig stands for our company's achievement in many years' development and researches on piling machines, adopting advanced technology, both at home and abroad. With our company's powerful machinery manufacturing capacity, it is specially designed to drill the pile hole with the big diameter and into hard—layers, fitting for layer conditions in most areas.
Performance Characteristics:
* Super stability and convenience of transportation, for use the special hydraulic and telescopic crawling chassis of the rotary drilling rig.
* The import Cummins engine provides strong power, and the noise and emission meet Europe III standard.
* The design of big trigonal luffing mechanism brings a significant improvement in stability.
* The quality of work is enhanced by increase the mast section to reduce mechanical wobble of the mast.
* Ensure verticality of the hole by adding a bracket for drill pipe.
* High-performance and more energy-efficient, due to the technology of the load-sensing hydraulic system.
* It can be equipped with a variety of drilling tools to realize drought and wet working.
|
Description |
Unit |
Parameter value |
|
|
Max. drilling diameter |
mm |
2500 |
|
|
Max. drilling depth |
m |
105 |
|
|
Working condition (L × W × H) |
mm |
10265×4800×27520 |
|
|
Transport condition (L × W × H) |
mm |
17615×3500×3535 |
|
|
Weight of overall unit (standard configuration, excluding drilling tool) |
t |
114 |
|
|
Engine |
Model |
CUMMINS QSM11-C400 |
|
|
Rated power/speed |
kW |
298 |
|
|
Rotary drive |
Max. torque |
kN.m |
390 |
|
Rotational speed |
r/min |
7～18 |
|
|
Pull-Down Cylinder |
Max. pull- down piston push |
kN |
240 |
|
Max. pull- down piston pull |
kN |
250 |
|
|
Max. pull- down piston stroke |
m |
6 |
|
|
Main Winch |
Max. pulling force |
kN |
400 |
|
Max. line speed |
m/min |
60 |
|
|
Auxiliary Winch |
Max. Pulling force |
kN |
100 |
|
Max. line speed |
m/min |
65 |
|
|
Undercarrige |
Max. traveling speed |
km/h |
1.2 |
|
Max. grade ability |
% |
35 |
|
|
Min. Clearance |
mm |
445 |
|
|
Track shoe width |
mm |
800 |
|
|
Distance between tracks |
mm |
3500~4800 |
|
|
Hydraulic System |
Working pressure |
Mpa |
35 |
