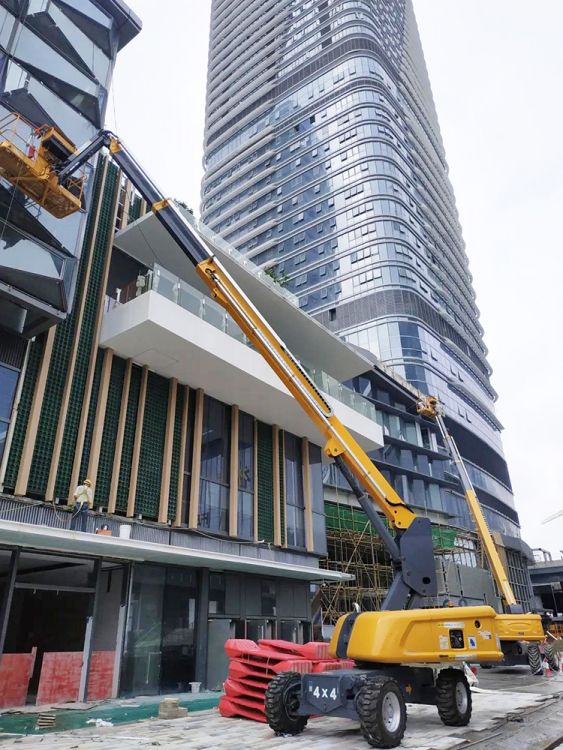

XCMG 24m China small self propelled telescopic boom lift XGS24.
XGS24 self propelled telescopic boom lift highlights with outstanding performance, efficiency, dynamics and easy operation.
It is leading in the industry with maximum carrying capacity of 340kg, high operation height and amplitude, suit for construction of large load and wide operation area.
Advantages and features:
1.Realize the dynamic adjustment of vehicle center of gravity, making the complete vehicle more stable.
2.The machine is excellent in drive and adaptability to road.
3.Making use of boom and making its work performance at leading edge.
4.Improves safety of extending mechanism and extends service life of steel rope.
5.Implementing the auto leveling, the weighting of platform payload, the dynamic monitoring and the fault warning.
|
Item |
Unit |
Parameter |
|
Overall length of complete machine |
mm |
10150 |
|
Overall width of complete machine |
mm |
2490 |
|
Overall height |
mm |
2800 |
|
Wheelbase |
mm |
2500 |
|
Max. working height |
m |
24 |
|
Max. platform height |
m |
22 |
|
Max. working range |
m |
18.3 |
|
Max. load capacity |
kg |
230/340 |
|
Luffing range of boom |
° |
-5 ~ +75 |
|
Slewing angle of turntable |
° |
360 |
|
Max. tail swing |
mm |
1550 |
|
Dimension of platform |
mm |
2400×900 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
12500 |
|
Max. traveling speed |
km/h |
6 |
|
Min. turning radius |
m |
6 |
|
Min. ground clearance |
mm |
230 |
|
Max. gradeability |
% |
45 |
|
Specification of tire |
- |
Solid tire 36×14-20/7.5 Or Foam tire 355/55D625 |
|
Engine model |
- |
Perkins 404D-22T |
|
Engine rated power |
kW/(r/min) |
43/(2600) |
