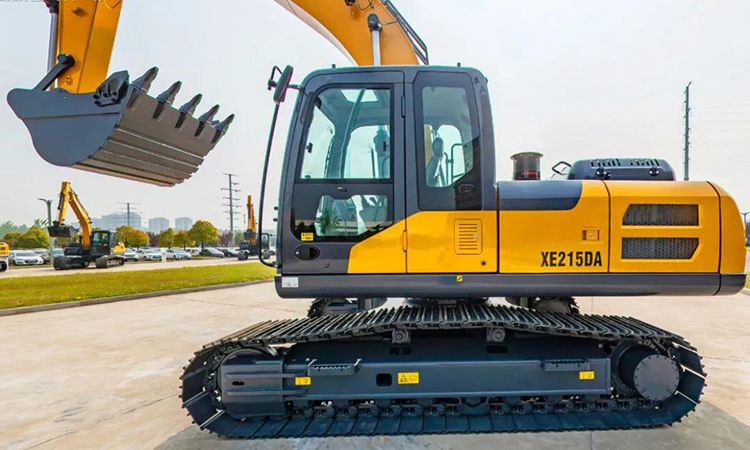

XCMG excavator XE215DA is an upgraded model of the D series with a new generation of hydraulic system, which has the characteristics of flexibility, good control performance, low fuel consumption, high construction efficiency, large digging force, and a wide range of applications.

It can be equipped with multifunctional attachments to realize various operations such as crushing, shearing, cleaning, compaction, milling, pushing, pinching, grabbing, shoveling, loosening, hoisting and so on.

1. A new generation of high-efficiency hydraulic system, main pump, main valve, and electronic control stick are adopted.

2. The Optimization of internal structure of the main valve has reduced the impact of stick start/stop and boom start/stop.

3. Large-bore bucket cylinder and stick cylinder are used to increase the digging force by more than 5%.

4. XCMG special low-speed high-torque engine, large-displacement pump, a new independent control system for the sub-cylinder has been developed to realize the precise distribution of main pump power.

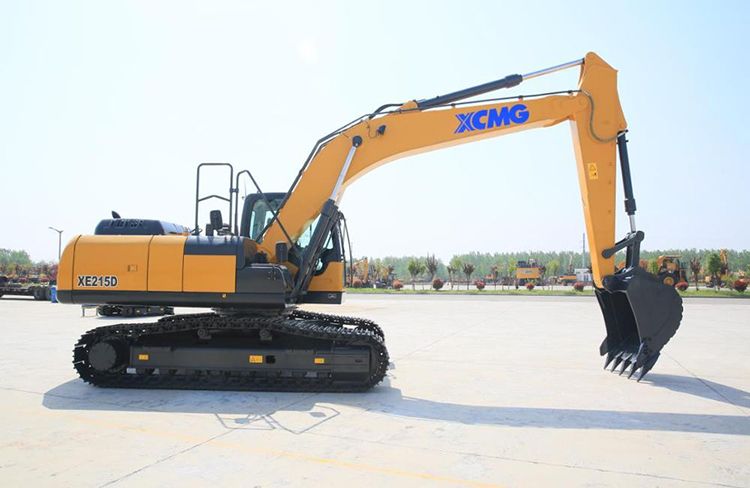

5. Compared with XE215D, the efficiency of XE215D is increased by 7%, the fuel consumption is reduced by 10%,and the comprehensive fuel consumption is lower than 12L/H.

6. The bucket capacity has increased to 1.05m³, and the work efficiency is higher.

Sales model		Unit	XE215DA
Operating weight		Kg	21500
Bucket capacity		m³	1.05
Engine	Model	/	QSB7
	No. of cylinders	/	6
	Output power	kw/rpm	135/2050
	Maximum torque/speed	N.m/rpm	740/900-1600
	Displacement	L	6.7
Main performance	Travel speed	km/h	5.4/3.1
	Swing speed	r/min	11.8
	Gradeability	°	≤35
	Ground pressure	kPa	47.2
	Bucket digging force	kN	149
	Arm digging force	kN	111
	Maximum traction	kN	184
Hydraulic system	Rated flow of main pump	L/min	2×216
	Main safety valve pressure	MPa	34.3/37
	Travel system pressure	MPa	34.3
	Rotary system pressure	MPa	27.5
	Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	400
	Hydraulic tank capacity	L	220
	Engine oil capacity	L	19.5
Appearance size	A Overall length	mm	9625
	B Overall width	mm	2990
	C Overall height	mm	3100
	D Width of platform	mm	2830
	E Track length	mm	4255
	F Overall width of chassis	mm	2990
	G Track width	mm	600
	H Length to center of rollers	mm	3462
	I Track gauge	mm	2390
	J Counterweight clearance	mm	1050
	K Min. ground clearance	mm	486
	L Min. tail swing radius	mm	2844
	M Track height	mm	942
Working scope	A Max. digging height	mm	9620
	B Max. dumping height	mm	6780
	C Max. digging depth	mm	6680
	D Maximum depth cut for 2240mm(8 ft) level bottom	mm	6500
	E Max. vertical wall digging depth	mm	5715
	F Max. digging radius	mm	9940
	G Min. swing radius	mm	3530
Standard configuration	Length of boom	mm	5680
	Length of arm	mm	2910
	Bucket capacity	m³	1.05
Optional configuration	Length of boom	m³	/
	Length of arm	m³	2400
	Bucket capacity	m³	1.2/1.3 Earth Working bucket 0.93/1.0 Strengthened bucket 0.9/1.0 Rock bucket
