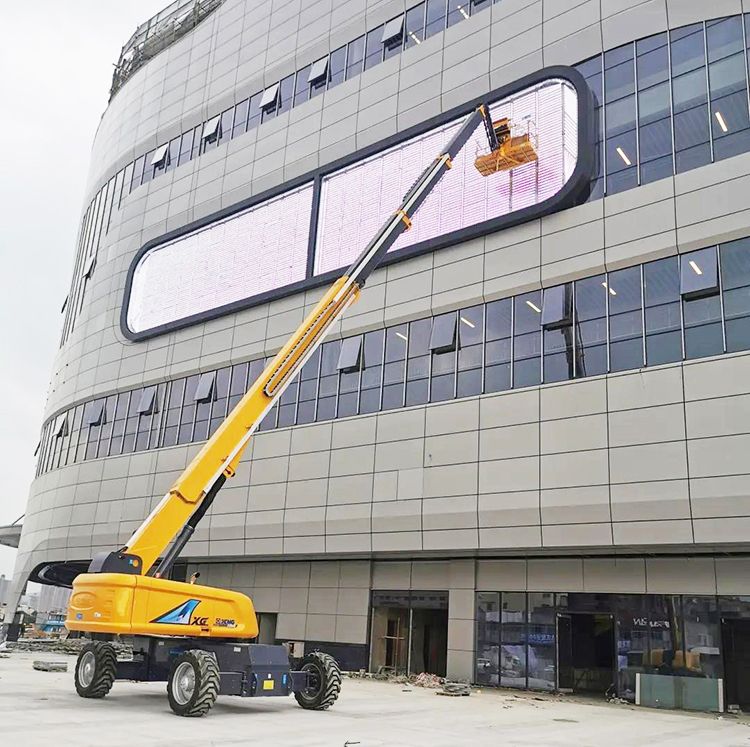

XCMG telescopic boom lift table XGS22 highlights with outstanding performance, efficiency, dynamics and easy operation. XCMG telescopic boom lift table XGS22 is leading in the industry with maximum carrying capacity of 460kg, high operation height and amplitude, suit for construction of large load and wide operation area.

1.XCMG lift table XGS22 realize the dynamic adjustment of vehicle center of gravity, making the complete vehicle more stable.

4.XCMG lift table XGS22 improves safety of extending mechanism and extends service life of steel rope.

5.Implementing the auto leveling, the weighting of platform payload, the dynamic monitoring and the fault warning.

Item	Unit	XGS22
A whole machine length	mm	10040
B whole machine width	mm	2490
C whole machine height	mm	2460
D wheelbase	mm	2500
Max. Operation height	m	22
Max. Platform height	m	20
Max. Operation extend	m	16.6
Max. Load capacity	kg	300/460
Luffing range of boom	°	-3~+73
Rotation angle of turntable	°	360
Max. Tail swing	mm	1270
Platform size	mm	2400×900
Platform rotation angle	°	160
Whole machine weight	kg	12300
Max. traveling speed	km/h	6.3
Min. Turning radius	m	6
Min. Ground clearance	mm	230
Max. gradeability	%	45
Tire specification	-	Solid tire 36×14-20 Or Foam Tire 355/55D625
Engine model	-	Yuchai 4D2404
Rated engine power	kW/(r/min)	36.8/ (2700)
