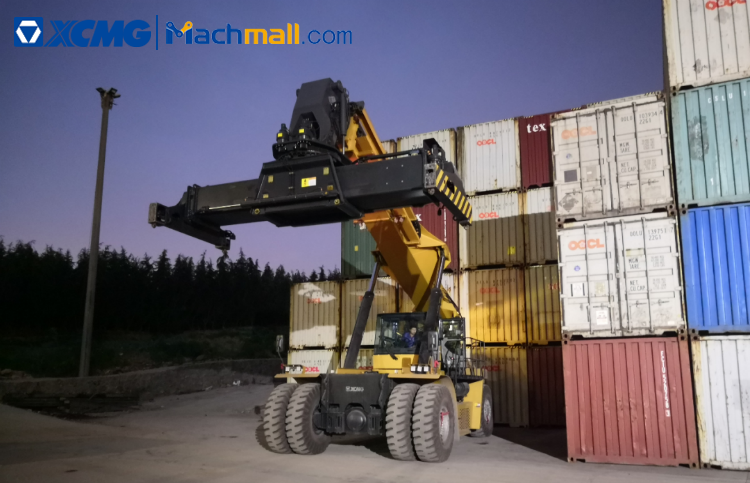

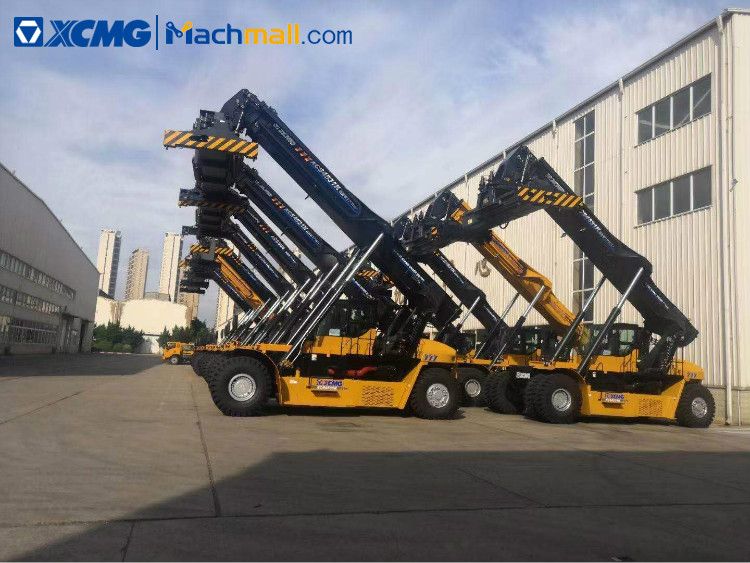

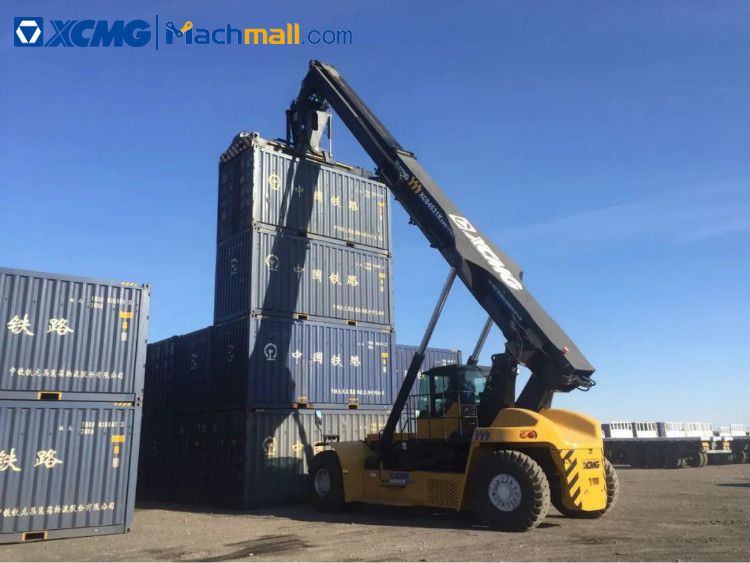

XCMG 45t container reach stacker .

XCMG Reach Stackers:

XCMG reach stackers include K series (diesel engine) and E series (pure electric) reach stackers

XCMG K Series Reach Stackers:

XCMG's K series reach stacker features good safety, high degree of intelligence, comfortable operation, energy saving and environmental protection, and it meets the requirements of the high-end market.

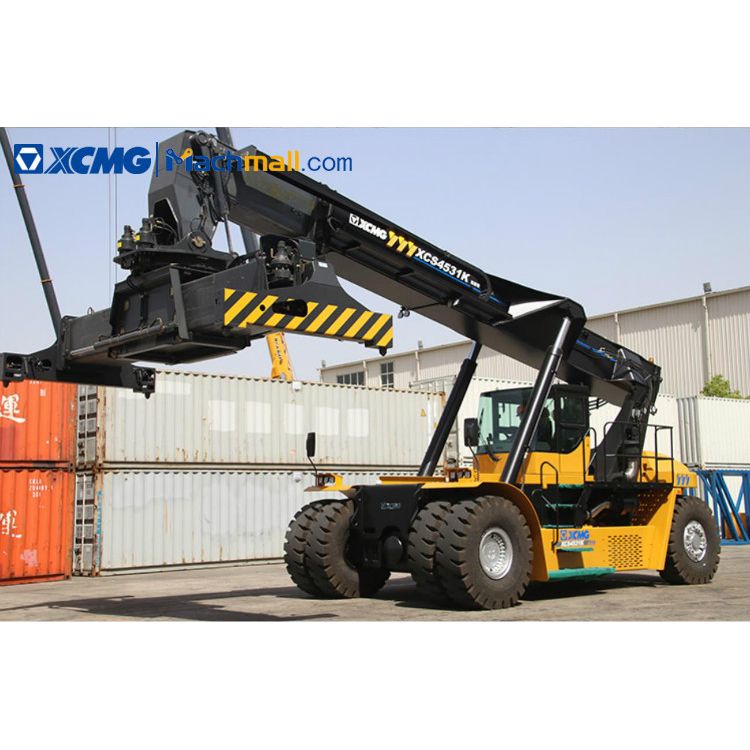

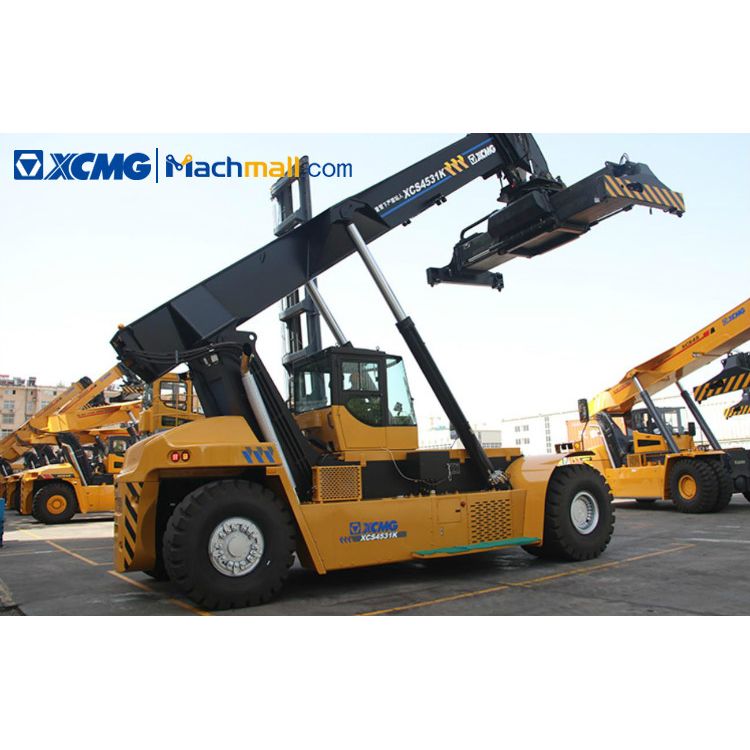

Applicable Working Conditions of XCMG K Series Reach Stacker XCS4531K:

IOS 20ft~40ft standard container

Highlights of XCMG XCS4531K Reach Stacker:

1. Powered by Volvo engine and Dana gearbox

2. Parker hydraulic system, IFM controller hydraulic and electric control scheme to ensure quick operation

3. The tilt spreader makes up for the defect that the ordinary reach stacker cannot dump and improves the efficiency of the container.

XCMG XCS4531K Reach Stacker Optional Configurations:

smart brakes, precise weighing, panoramic images, etc.

Parameter	Unit	XCS4531K
Max.lifting height	mm	15100
Inclination angle	。	0-60
Max lifting speed （Unloaded/loaded）	mm/s	420/250
Max lowering speed （Unloaded/loaded）	mm/s	360/360
Max travelling speed （Unloaded/loaded）	km/h	25/21
Gradeability （Unloaded/loaded）	%	39/32
Overall weight	t	71.2
Rated capacity	t	45
No. of stack	-	5（9’6”/8’6”）
Overall length	mm	11340
Wheel base	mm	6000
Overall height	mm	4670
Min ground clearance	mm	350
Overall width	mm	6052-12185
Front track	mm	3033
Rear track	mm	2790
Min Turing radius	mm	8000
20’ container aile width	mm	11300
40’ container aile width	mm	13600
