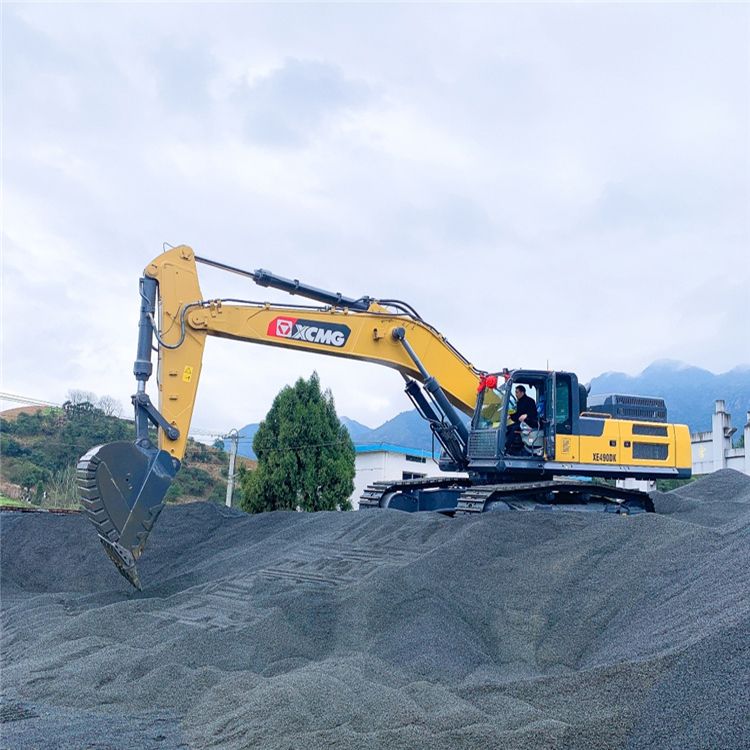

XCMG Official XE490DK 49 ton large crawler excavator.

XE490DK large crawler excavator is one of the leading large excavator models launched by XCMG Excavator Business Department. XE490DK large crawler excavator integrates the valuable experience gained by XCMG from years of research and development of excavating products, and adopts advanced design and manufacturing methods. Meanwhile,XE490DK large crawler excavator adheres to the design concept of "high efficiency, high safety, low carbon and environmental protection", and has perfect mining operation ability.

I. More energy-saving and environmental protection

* Power system adopts the imported Cummins (Cummins QSM11), featuring direct injection, four stroke, water-cooling, turbocharger, air to air intercooler, six cylinder engine. XE490DK large crawler excavator adopts efficient HPI fuel injection technology, through separate cylinder control and full electronic control, fuel economy will be greatly increased. It is an engine specifically designed and manufactured for engineering machinery operation conditions.

II. More efficient returns

* XE490DK large crawler excavator adopts customized torque curve, which has the characteristics of low speed and large torque, low fuel consumption, good economy and so on. At the same time, the engine adopts constant power mode in a specific speed segment, which enables the machine to maintain a strong power output under heavy load and low speed.

III. More reliable and durable

* Sturdy travelling mechanism can meet the requirements of heavy-load operations, its durability, reliability and mobility is higher. Equipped with reinforced four rollers and one track, excellent performance and more reliable quality can be achieved. Strengthen the lower frame and X-type beam, improve the strength of cross section, disperse the stress of carbody, it is qualified for more hard work.

IV. More intelligent control

* XEICS system with independent intellectual property rights, using CAN bus communication to achieve the corresponding control function, CAN effectively adapt to the operating environment, operating conditions and operating load, so as to be able to identify, think, judge, make decisions and execute.

V. More comfortable and safe

* The cab with pressurization function can effectively prevent dust from entering the cab and provide a clean working environment for drivers. The internal frame of the cab is strengthened, the overall structure strength is increased, pin holes are added in the front and rear, and safety performance is improved. Cab equipped with double laminated glass, can effectively filter UV and increase high protection level.

VI. Convenient maintenance

* Oil filter, pilot filter, fuel filter, oil and water separator, and air filter are accessible on the ground to check and replace, it is within your reach, easy to maintain, saves maintenance time, and improves work efficiency.

Item		Unit	Parameters
Operating weight		Kg	48100
Bucket capacity		m³	2.3～3.1
Engine	Model	/	Cummins QSM11
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	280/2000
	Maximum torque/speed	N.m	1898/1300
	Displacement	L	11
Main performance	Travel speed（H/L)	km/h	5.4/3.2
	Swing speed	r/min	9.2
	Gradeability	°	≤35
	Ground pressure	kPa	85
	Bucket digging force	kN	301
	Arm digging force	kN	248
	Maximum tractive force	kN	338
Hydraulic system	Main pump	/	Two piston pumps
	Rated flow of main pump	L/min	2×360
	Main safety valve pressure	MPa	34.3/37
	Travel system pressure	MPa	34.3
	Swing system pressure	MPa	31
	Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	725
	Hydraulic tank capacity	L	430
	Engine oil capacity	L	38
Appearance size	A Overall length	mm	11805
	B Overall width	mm	3582
	C Overall height	mm	3890
	D Width of platform	mm	3095
	E Track length	mm	5353
	F Overall width of chassis	mm	3582
	G Track shoe width	mm	600
	H Wheel base of crawler	mm	4292
	I Track gauge	mm	2750
	J Counterweight clearance	mm	1324
	K Min. ground clearance	mm	519
	L Min. tail swing radius	mm	3800
	M Track height	mm	1198
Working scope	A Max. digging height	mm	9855
	B Max. dumping height	mm	6890
	C Max. digging depth	mm	7000
	D Maximum depth cut for 2240mm(8 ft) level bottom	mm	6900
	E Max. digging radius	mm	10855
	F Min. swing radius	mm	4580
Standard	Length of boom	mm	6670
	Length of arm	mm	2900
	Bucket capacity	m³	2.5
Optional	Length of boom	mm	7060
	Length of arm	mm	2400/3380
	Bucket capacity	m³	2.3(Rock bucket) 2.5(Strengthened bucket) 3.1(Strengthened bucket)
