2 ton XCMG mini loader 4wd LW180K for sale
Shipping
Support Sea freight · Land freight · Air freight
Specs & Compare
Rated Load:
1800kg
Dimension(Long* Breadth * High):
5980*2060*2950mm
Type:
wheel loader
Place of Origin:
Xuzhou, Jiangsu, China
Model Number:
LW180K
Brand Name:
XCMG
Certification:
CE/ISO90001
Add models to compare
Description

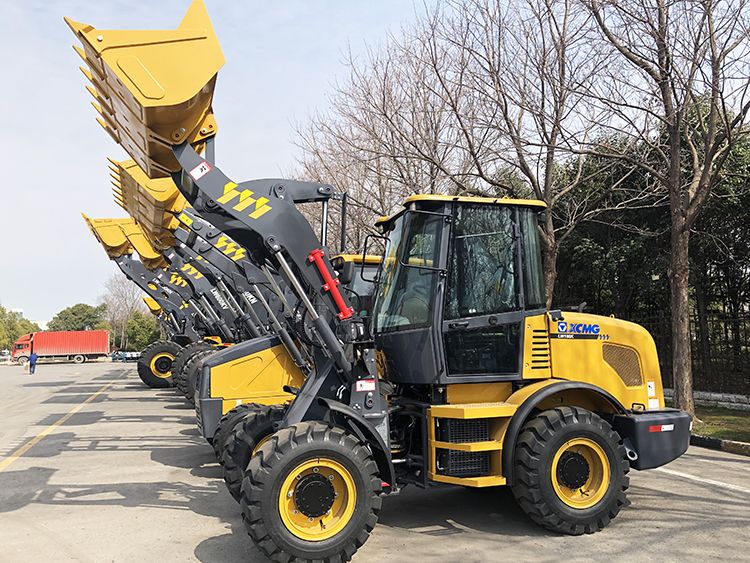

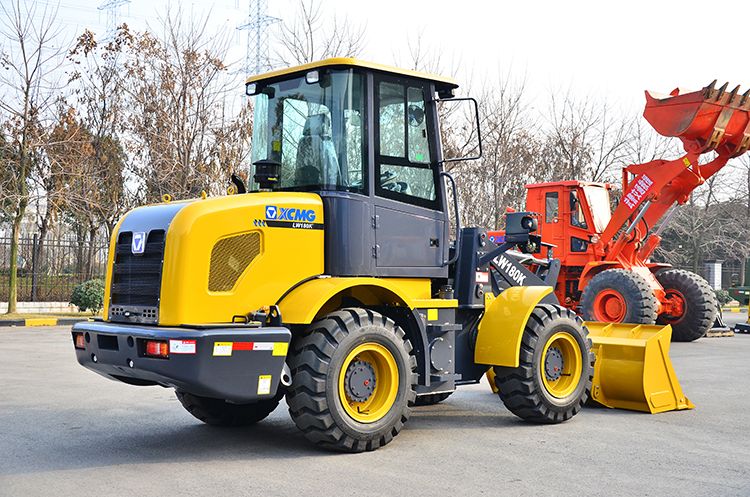

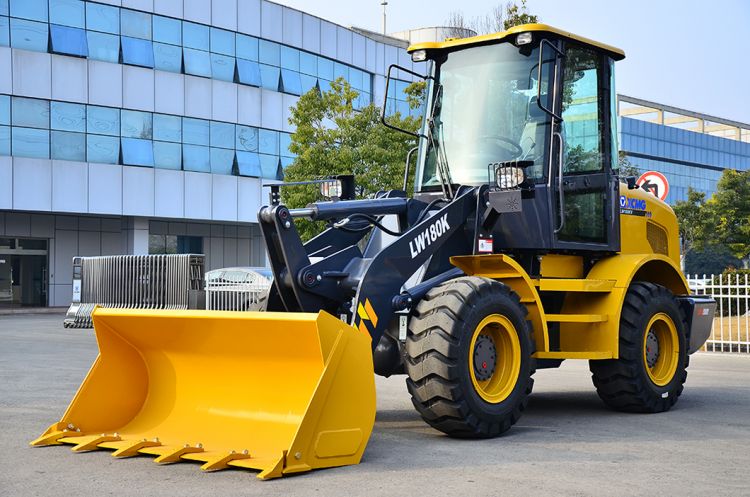

2 ton XCMG mini loader 4wd LW180K.
XCMG mini loader 4wd LW180K boasts the industry’s best traveling speed (26km/h), featuring high rapidness and efficiency.
XCMG mini loader 4wd LW180K Performance Highlights:
1. The extended wheelbase (2,300mm) design applied adapts to diversified super-heavy working conditions, with the stability leading the industry.
2. With powerful digging force (The breakout force of LW180K is ≥58kN) and strong breaking force, it handles diversified materials with ease.
3. XCMG mini loader 4wd LW180K The diversified dumping heights (at 2,650~2,970mm) are at choice to meet the operation needs in diversified applications.
Description
|
Unit
|
Parameter value
|
Rated operating load
|
kg
|
1800
|
Bucket capacity
|
m³
|
0.9~1.1
|
Machine weight
|
kg
|
6200
|
Dump clearance at maximum lift
|
mm
|
2650~2970
|
Reach at maximum lift
|
mm
|
900~1000
|
Wheel base
|
mm
|
2300
|
Tread
|
mm
|
1550
|
Max.breakout force
|
kN
|
≥58
|
Hydraulic cycle time-raise
|
s
|
5
|
Total hydraulic cycle time
|
s
|
≤8.5
|
Min. turning radius over tyres
|
mm
|
4470
|
Articulation angle
|
°
|
35
|
Gradeability
|
°
|
28
|
Tyre size
|
|
16/70-20
|
Overall machine dimension L×W×H
|
mm
|
5980×2060×2950
|
Model
|
|
YC4D80-T20
|
Rated Power/Speed
|
kW/rpm
|
58/2400
|
