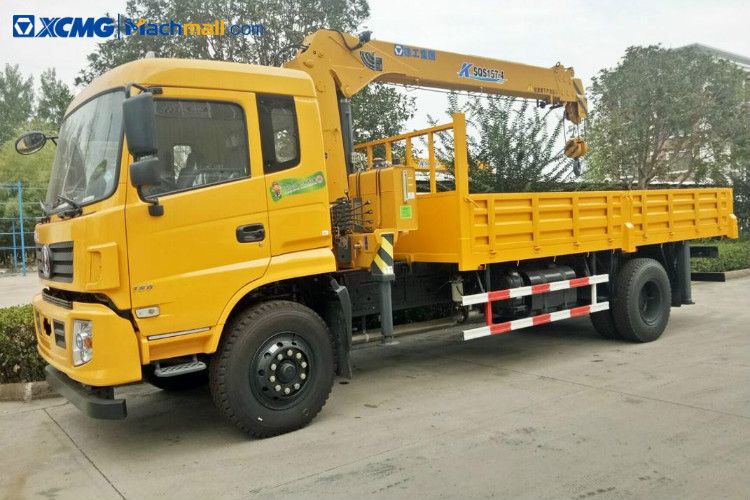

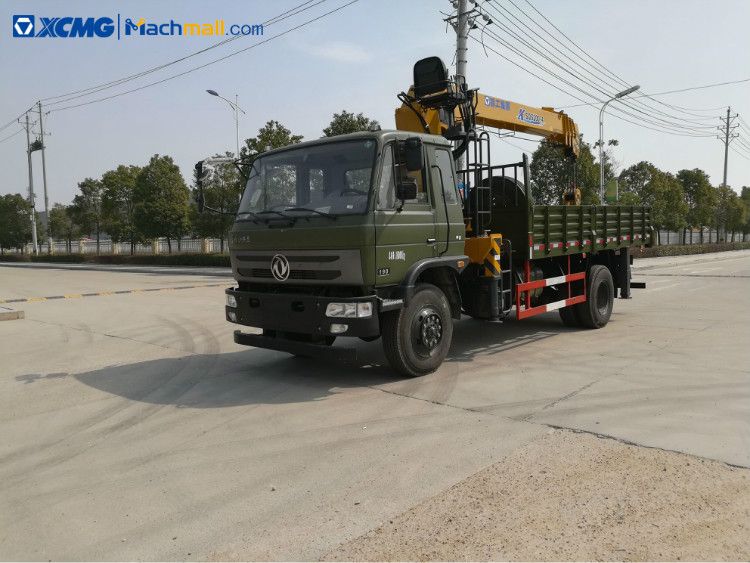

XCMG mini truck mounted crane 5 ton.

XCMG 5 ton mini truck mounted crane: Single cylinder synchronization guy cable technology makes work efficiency higher than before.

1. Compact hinge point design takes up smaller space.

2. The work is more safety after fitted with alarm device.

3. The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system.

4. Float three –point bridge structure design can lower the accessional stress on the chassis when traveling.

5. XCMG 5 ton mini truck mounted crane has been fitted own powerful slewing of working in diversifying conditions.

6. Anti-slewing impulse equipment makes vehicle running safety.

Parameter Item	Unit	Scale
Max Lifting Capacity	kg	5000
Max Lifting Moment	t.m	12.5
Recommend Power	kw	18
Max Oil Flow of Hydraulic System	L/min	32
Max Pressure of Hydraulic System	Mpa	20
Oil Tank Capacity	L	90
Crance Weight	kg	2120
Installation Space	mm	900
Rotation Angle	°	360° All Rotaion
