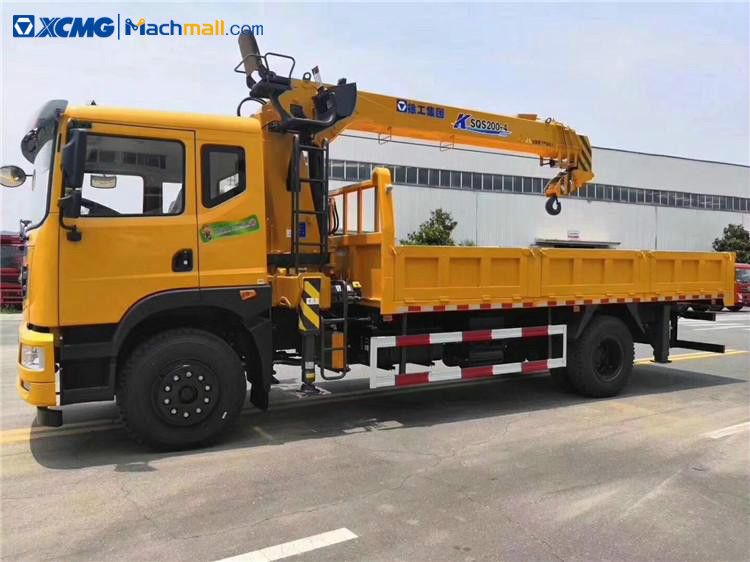

XCMG 4 ton small truck mount crane.
1. XCMG 4 ton small truck mount crane has been fitted own powerful slewing of working in diversifying conditions.
2. Compact hinge point design takes up smaller space.
3. The work is more safety after fitted with alarm device.
4. Single cylinder synchronization guy cable technology makes work efficiency higher than before.
5. Advanced development means make sure that the design is very reliable.
6. The more symmetrical center design of pentagon or hexagon boom make it has bigger anti-bending capacity.
|
ITEM |
UNITS |
SQ4SK2Q |
|
Max lifting capacity |
kg |
4000 |
|
Max lifting capacity |
t.m |
8.4 |
|
Recommend power |
kw |
16 |
|
Max oil flow |
l/min |
25 |
|
Max pressure |
map |
20 |
|
Oil Tank Capacity |
l |
60 |
|
Crane weight |
kg |
1271 |
|
Installation space |
mm |
850 |
|
Rotation angle |
。 |
360 All Rotation |
|
Max extension length |
mm |
7930 |
|
Max lifting height |
mm |
9000 |
|
Max elevation |
。 |
75 |
