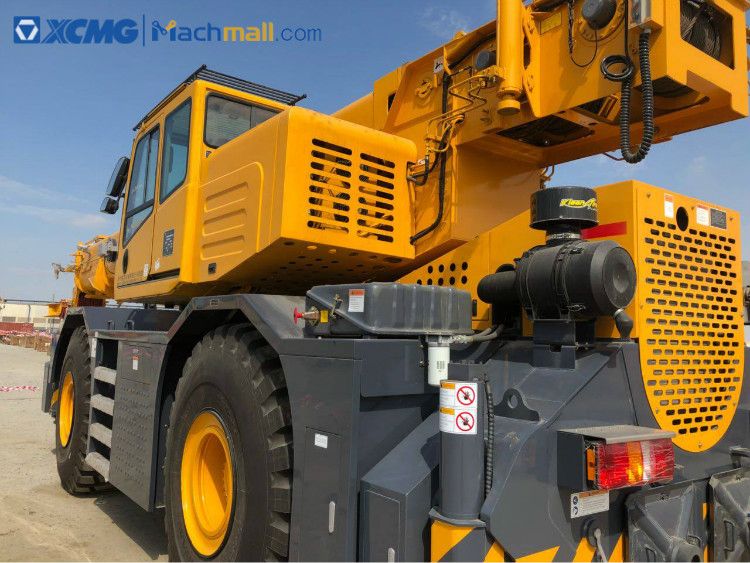

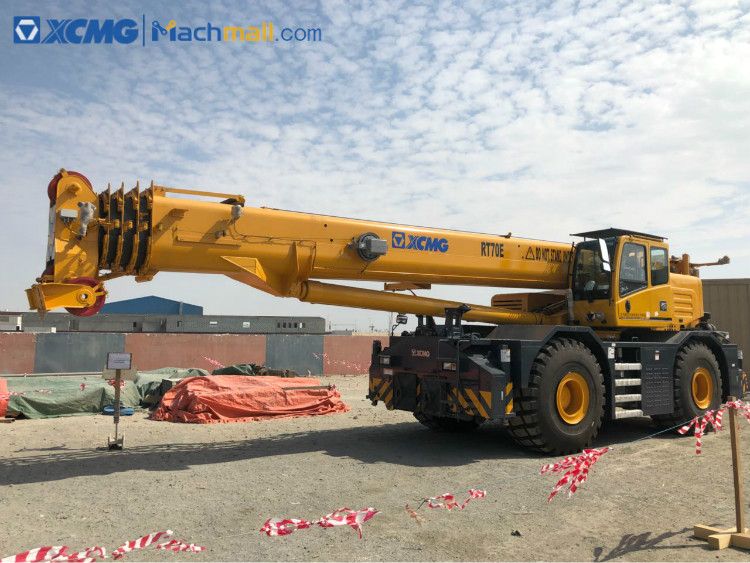

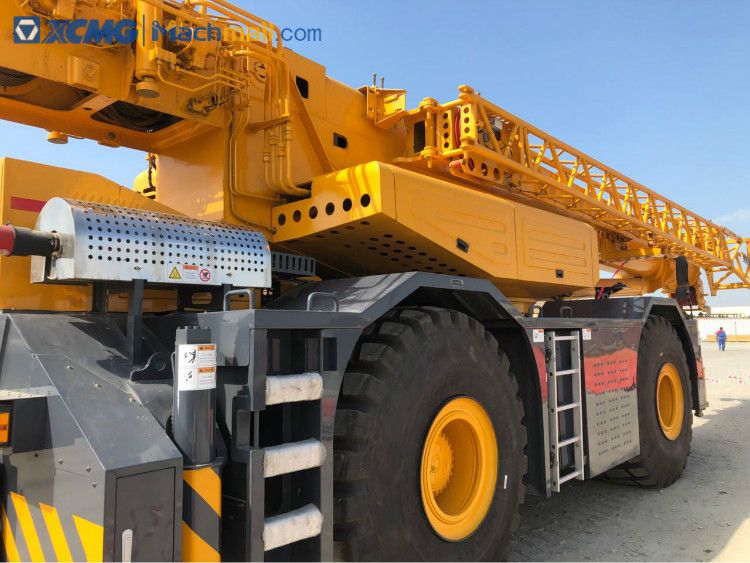

XCMG rough terrain crane 70 ton RT70E.

XCMG rough terrain crane 70 ton RT70E is suitable for lifting operation in oilfields, mines, road and bridge construction, etc.

1. Energy-saving and environment friendly

* Specialized energy-saving hydraulic system.

* The torque converter with lockout function has features of large torque at low speeds and high efficiency at high speeds.

* Elevating control system for freefall, without additional power needed.

2. High mobility and efficiency

* Two driving types of 4×2 and 4×4 are adopted with forwards and backwards driving function.

* Four steering modes are adopted , and the min. turning radius is 6.1m with better job site adaptability.

3. Powerful lifting capacity

* Double-cylinder plus ropes telescoping system, stable and reliable

* 5-section boom of 43.2m and jib of 17.5m with wide operation range.

Project	Unit	Parameter
Length of Entire Vehicle	(mm)	13135
Width of Entire Vehicle	(mm)	3180
Height of Entire Vehicle	(mm)	3750
Wheel Base	(mm)	4000
Wheel Track	(mm)	2400
Weight Parameters
Gross Vehicle Weight When Driving	(kg)	49065
Axle Load	(kg)	(Front Axle)25032/(Rear Axle)24033
Kinetic Paremeter
Engine Type	-	QSB6.7
Engine Rated Power	(kw/(r/min))	194
Engine Max Torque	(N.m/(r/min))	987
Driving Parameters
Max Travel Speed	(km/h)	25
Min Travel Speed	(km/h)	2
Swerve
Min Turning Radius	(m)	12.2
Head Min. Turning Diameter	(m)	-
Max Gradeability	(%)	65
Min. Ground Clearance of Machine	(mm)	467
Approach Angle	(掳)	20
Departure Angle	(掳)	17.5
Braking Distance	(m)	9
Fuel Consumption per 100kms	(L)	-
Major Performance Parameters
Max. Rated Lifting Capacity	(t)	70
Min. Rated Range	(m)	2.5
Max. Load Moment of Basic Jib	(kN路m)	2033
Radius of Gyration of Turntable Tail	(mm)	4220

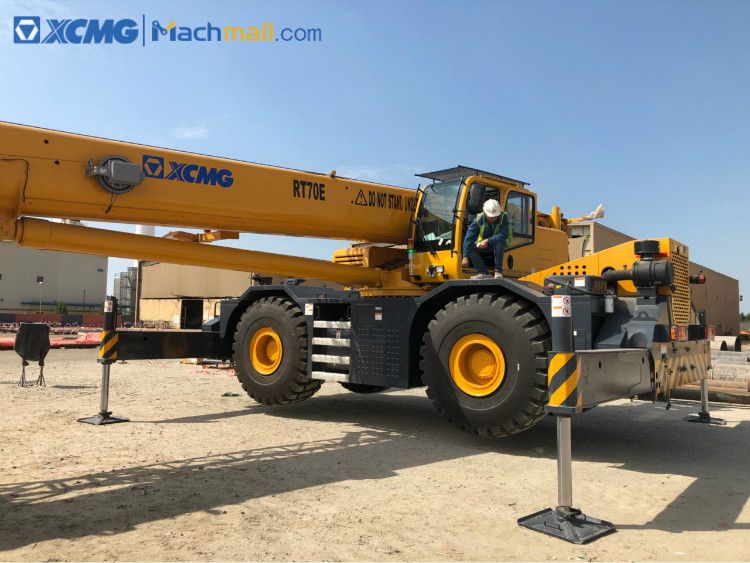

Outrigger
Longitudinal	(m)	7.3
Horizontal	(m)	7.2/5.6
Max. Lifting Height
Basic Boom	(m)	11.3
Longest Main Boom	(m)	43.3
Longest Main Boom + Auxiliary Boom	(m)	58.1
Boom Length of Crane
Basic Boom	(m)	11.32
Longest Main Boom	(m)	43.2
Longest Main Boom + Auxiliary Boom	(m)	60.7
