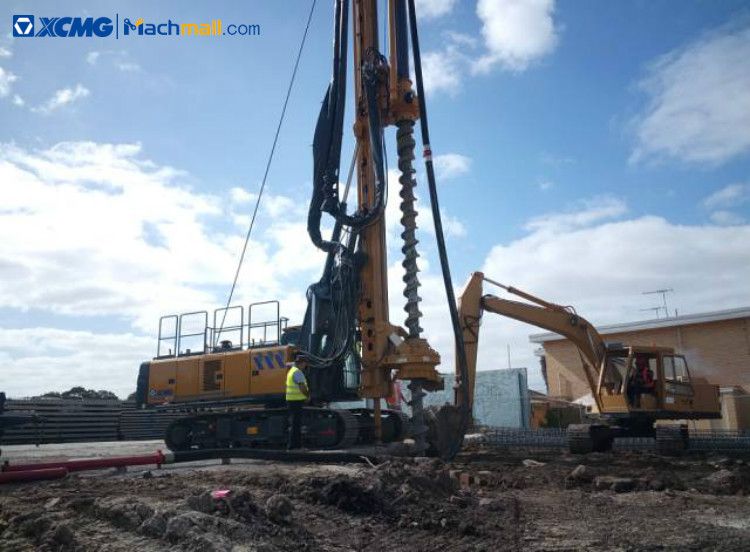

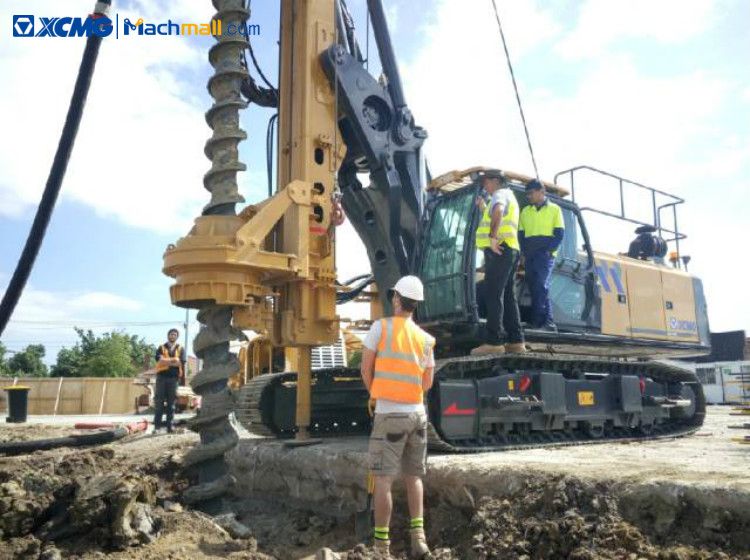

XCMG 150KN Small CFA Drilling Rig Machine XR150D-CFA.

XCMG 150KN Small CFA Drilling Rig Machine XR150D-CFA being a multi-purpose machine, it realizes CFA and Rotary Drilling method through changing working devices.

Using originally imported Cummins turbocharged engine, it is powerful, reliable in performance, unique in the design of regulating speed, and more energy efficient;

Imported Kawasaki hydraulic parts, a reasonable match of power system, high efficience in construction;

Specially stretchable chassis, equipped with luffing mechanism of dual boxes, it is easy to transport and adjust, making sure stability and reliability;

Main winch, using fourfold steel rope to lift, is effective to improve elevation force.

Equipped with the intelligent control system, CAN field-bus and PLC control system which are all protected under intellectual property rights, it includes auto/manual adjustment of the verticality of drilling mast、auto detection of depth、intelligent fault diagnosis control,etc.intelligent fault diagnosis control,etc.

Automatic control enhances perfusion of suited concrete, improving reliability.

Engine
Model	-	CUMMINS B5.9-C
Rated Power	(kW)	133
Rotary Drive
Max.output torque	(kN·m)	150
Rotary speed	(r/min)	8～36
Max.Drilling Diameter	(mm)	φ800
Max.Drilling Depth	(m)	20
Max.Extraction Force	(kN)	400
Main Winch
Max.single-rope speed	(m/min)	75
Diameter of the steel wire rope	(mm)	28
Auxiliary Winch
Max.single-rope speed	(kN)	50
Diameter of the steel wire rope	(m/min)	60
Drilling Mast Inclination
Lateral	(°)	3
Undercarrige
Max.traveling speed	(km/h)	3.2
Max.grade ability	(%)	40
Min Ground Clearance	(mm)	352
Track Shoe Width	(mm)	700
Distance between tracks	(mm)	3100~4100
Hydraulic System
Working pressure	(MPa)	32
Machine Working Quality/Transportation Quality	(t)	48/43
Dimensionv
Working condition	(mm)	8620X4100 X22845
Transportation condition	(mm)	13610X3100 X3040
